Comeva Compacta 4 TR Edgebander Max / min edge thickness - 0,4 - 3 mm Gluing unit - yes Cutting shears unit - Yes End cutting unit with guillotine - Yes End cutting unit with saw - yes Tilt trimming unit - yes Glue scrapping unit - yes Buffing unit - yes Round trimming unit - yes tupi unit - yes Pre - milling unit - Yes Weight - 1550 Kg Size Machine - 3950x800x1500 mm Installed total power - 15 HP Machine Spec Can Be Customised...
Key features The CRH is the perfect completion of our Automatic Edgebanders and thanks to an automatic hydropneumatic copying system the CRH executes perfect rounding of sharp and shaped corners on already edged panels. The copy corner rounder CRH does its job with the panels held well in position. This characteristic simplifies a lot the corner rounding unit workmanship which can be found on large and complex machines. The match between the Automatic Edgebander and...
Key features Weight kg 680/1840/2197 Pressured air consumption l/min 50/300 Machine dimensions (L/W/H) mm 1400 × 1220 × 1800/1400 × 1520 × 1800/1400 × 1670 × 1800 Desk lifting motor power kW 0,18 Diameter of exhaust opening mm 150 Air suction speed m/s 20 Voltage / frequency V / Hz 3/N/PE 400V/50Hz Operating pressure bar Work width mm 650/950/1100 Maximum workpiece height mm 3-160 Max. operating width mm 630/930/1100 Min. - Max. workpiece height mm...
Key features Standard equipment: Teflon coated glue pot controlled by a PLC Pneumatic Edge cutting shears from coil, beyond cutting, through feeds automatically the edge (PATENTED) MOTORIZED pressure rollers unit End trim unit with double circular saw blades and follow-up system Panel thickness: min-max 10 - 45 mm Edge thickness: min-max 0,4-3,0 mm Heating elements power Nr. 6: ca. 1400 W End trimming motor: 0,18 KW - Ø 80 mm Z 16 Flush trimming motor:...

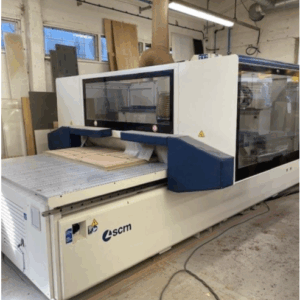

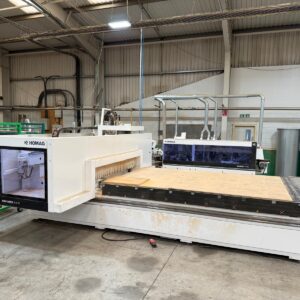

3 axis CNC 1220x3000 table dimensions Suction pod/cup and rail system large tooling carousel—8 Parametric programming 10-15 HP motor 24000 rpm Drill centre I.S.O./ CONES Tooling Anto lubrication 8 Position Tool Changer
