Description
The Biesse Rover K FT 2231 is a state-of-the-art CNC nesting machining centre built for fast, accurate and automated processing of full-size sheet materials. Designed by Biesse for modern production environments, the Rover K FT combines high machining performance with efficient material handling and advanced nesting capability.

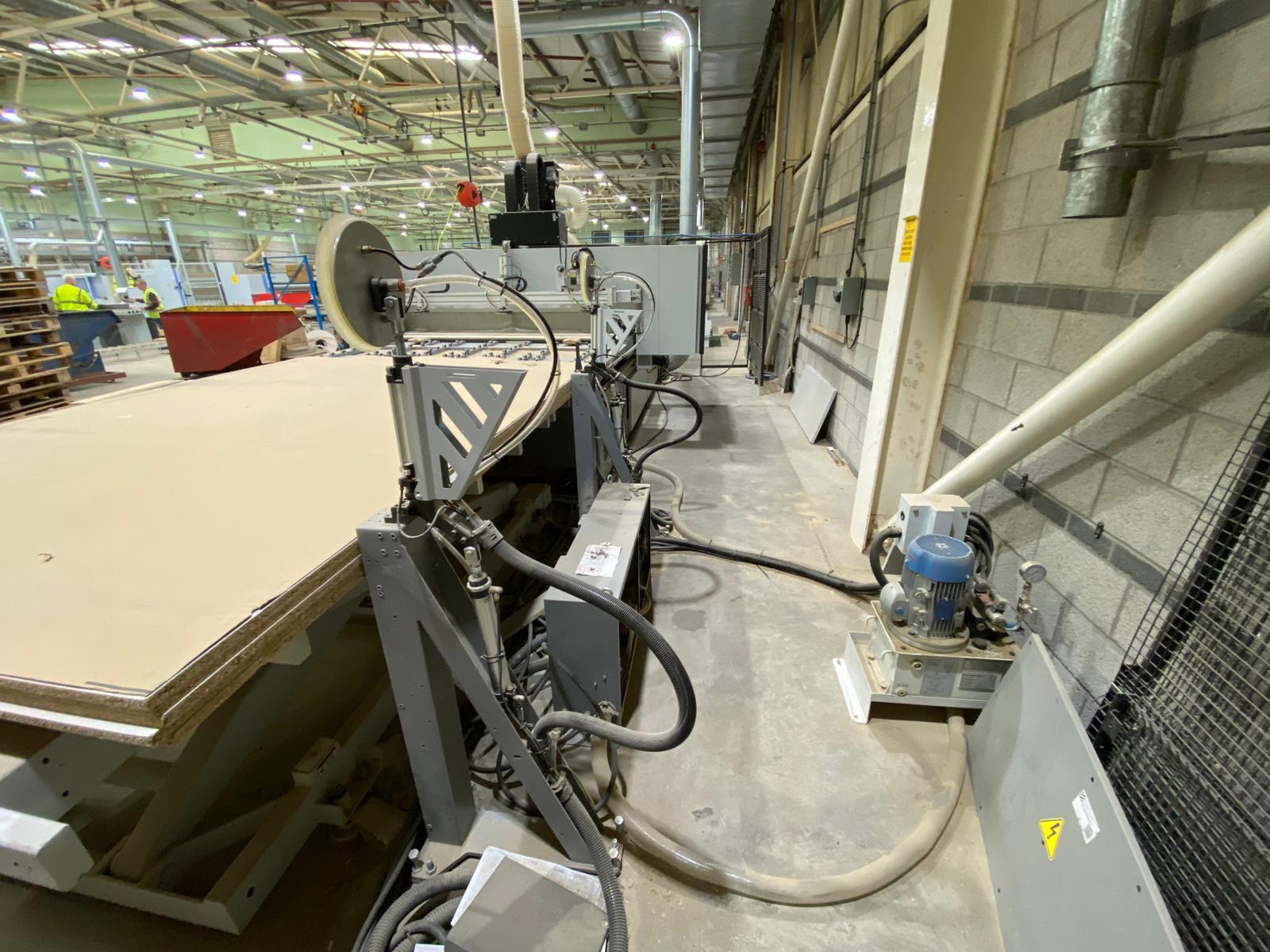

This 2023 model features a fully automated loading and unloading system with sweeping arm and vacuum cup loading, allowing continuous production with minimal operator intervention. The machine is ideally suited to furniture manufacturing, kitchens, wardrobes, shopfitting, panel processing and bespoke joinery applications.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Biesse |
| Model | Biesse Rover K FT 2231 |
| Year | 2023 |
| Machine Type | CNC Nesting Machining Centre |
| Table Size (FT Worktable) | X = 3098mm / Y = 2203mm |
| Maximum Axis Speed (X-Y-Z) | 25 / 25 / 25 m/min |
| Z Axis Stroke | 320mm |
| Z Axis Piece Passage | 170mm |

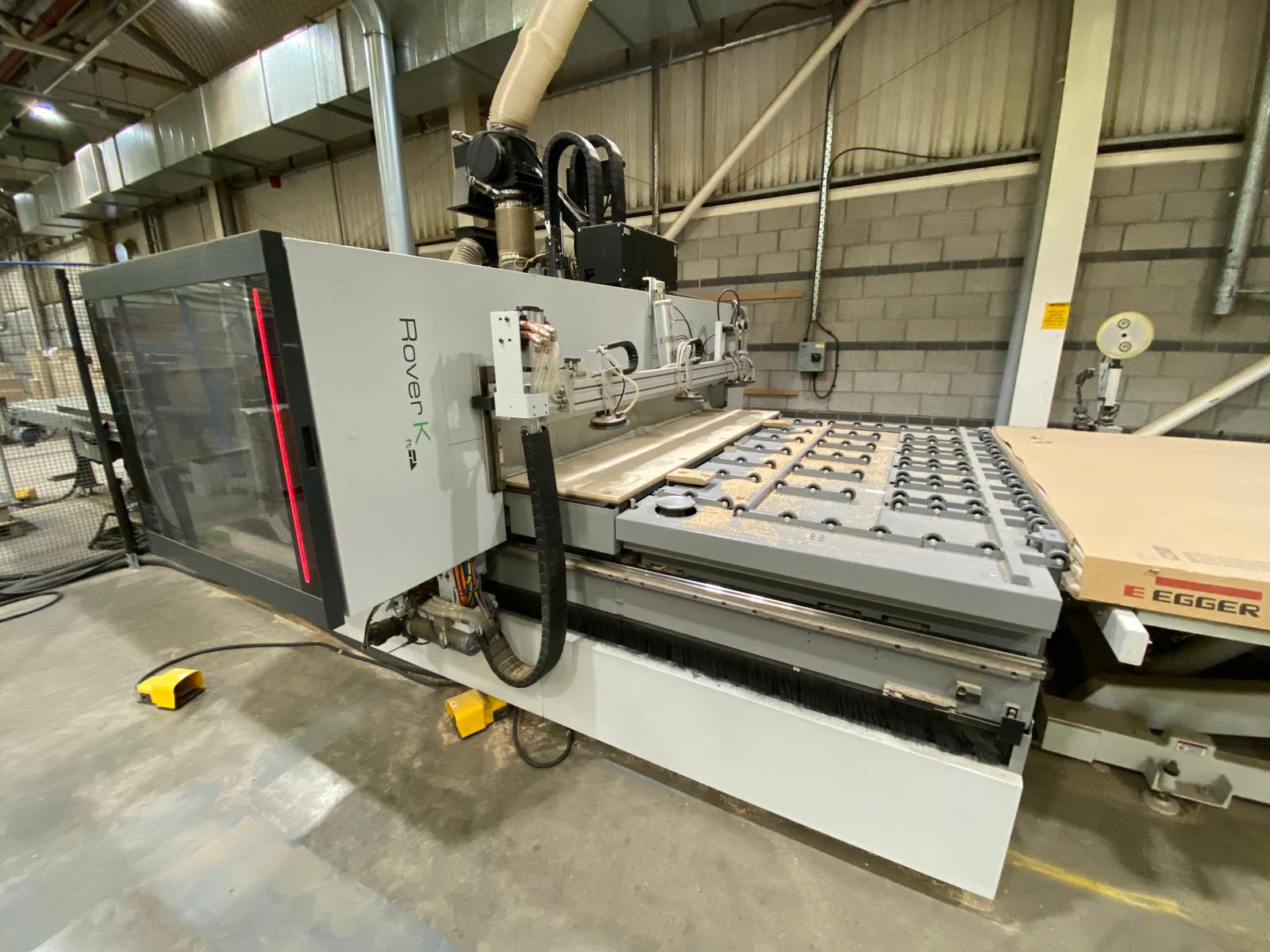

| Vacuum System | 8 Zone Multizone Vacuum Table |
| Vacuum Pumps | 2 x 250 m³/h Rotary Claw Vacuum Pumps |

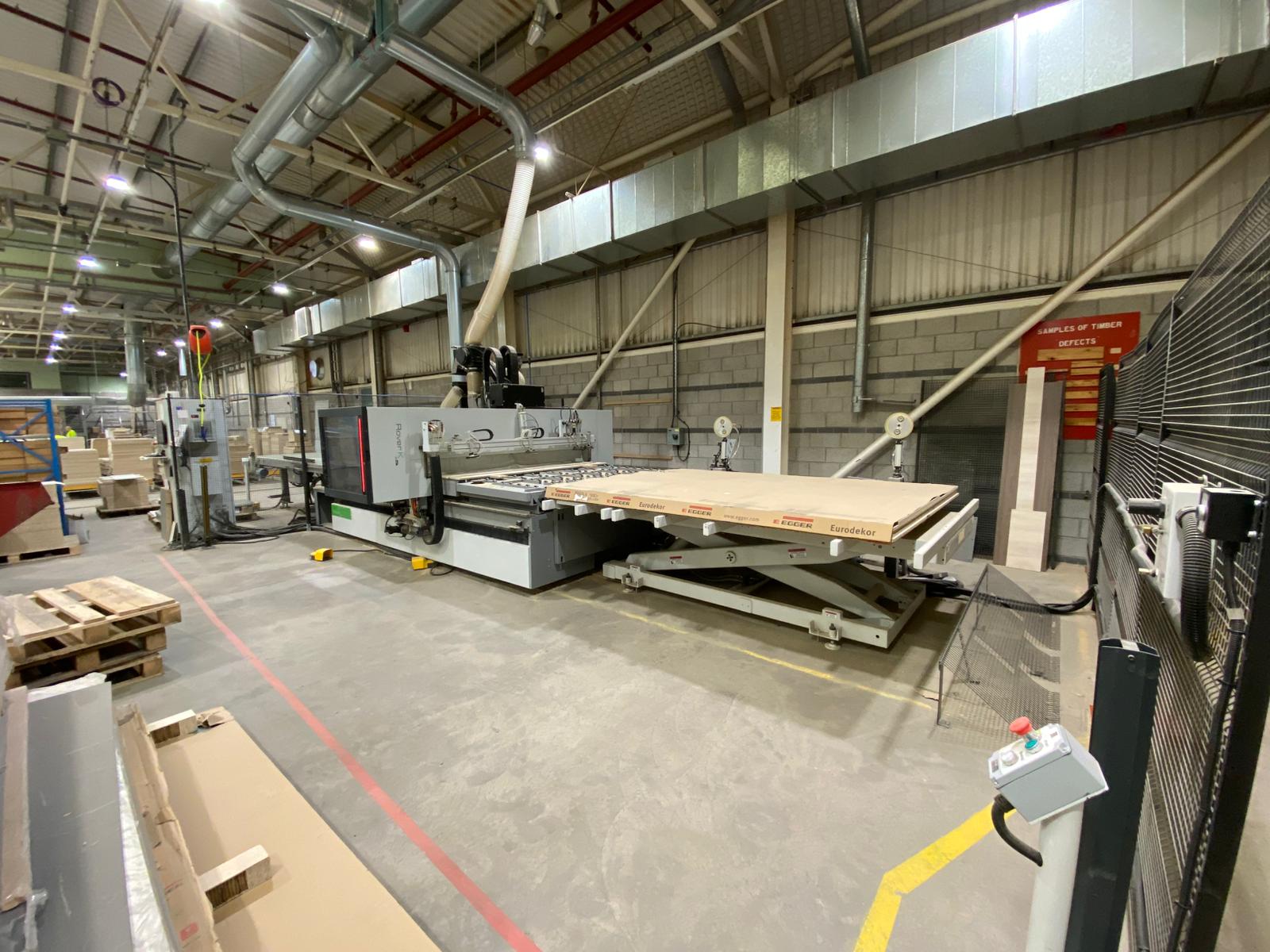

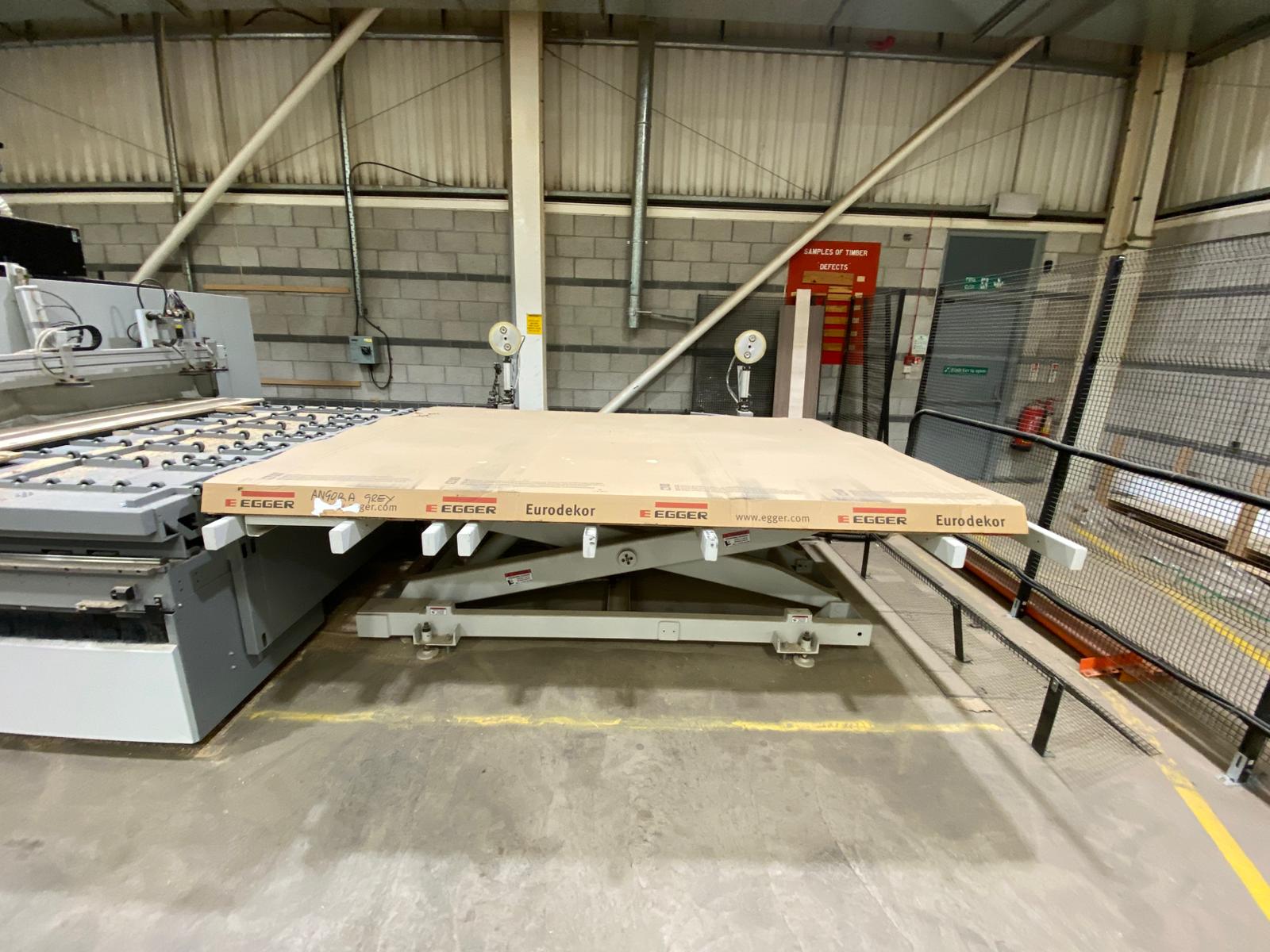

| Loading System | Automatic Loading Station with Vacuum Cups |

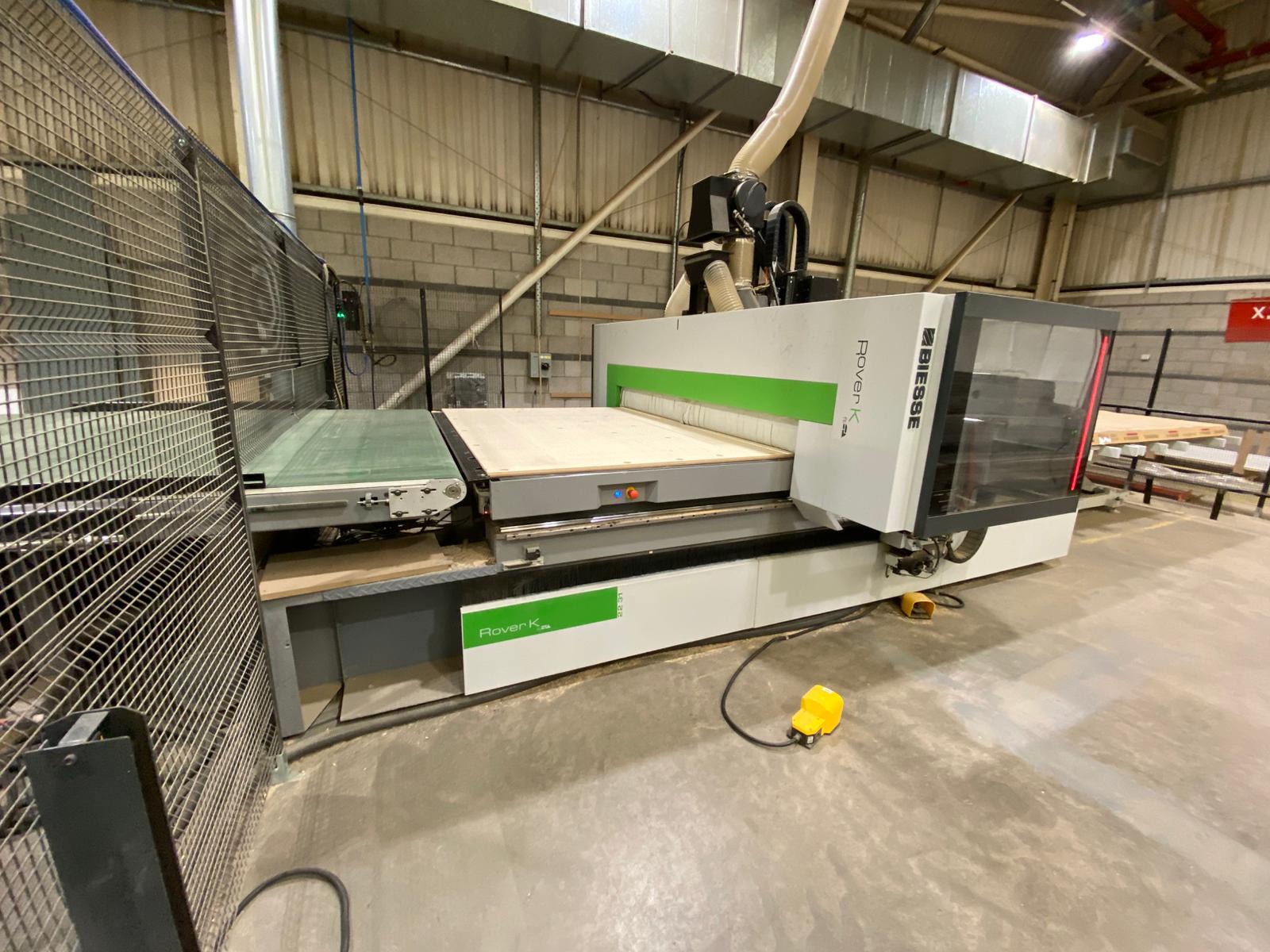

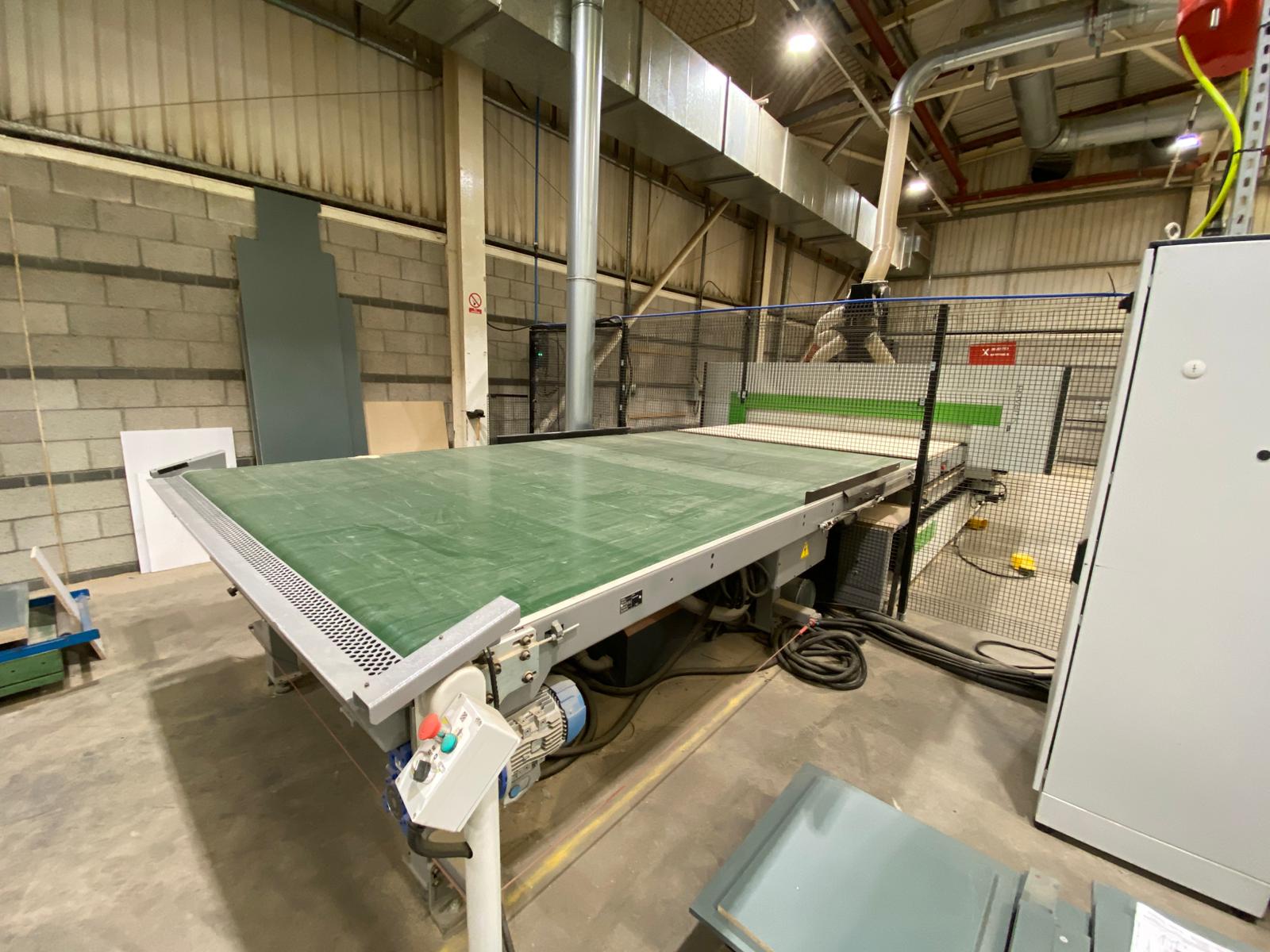

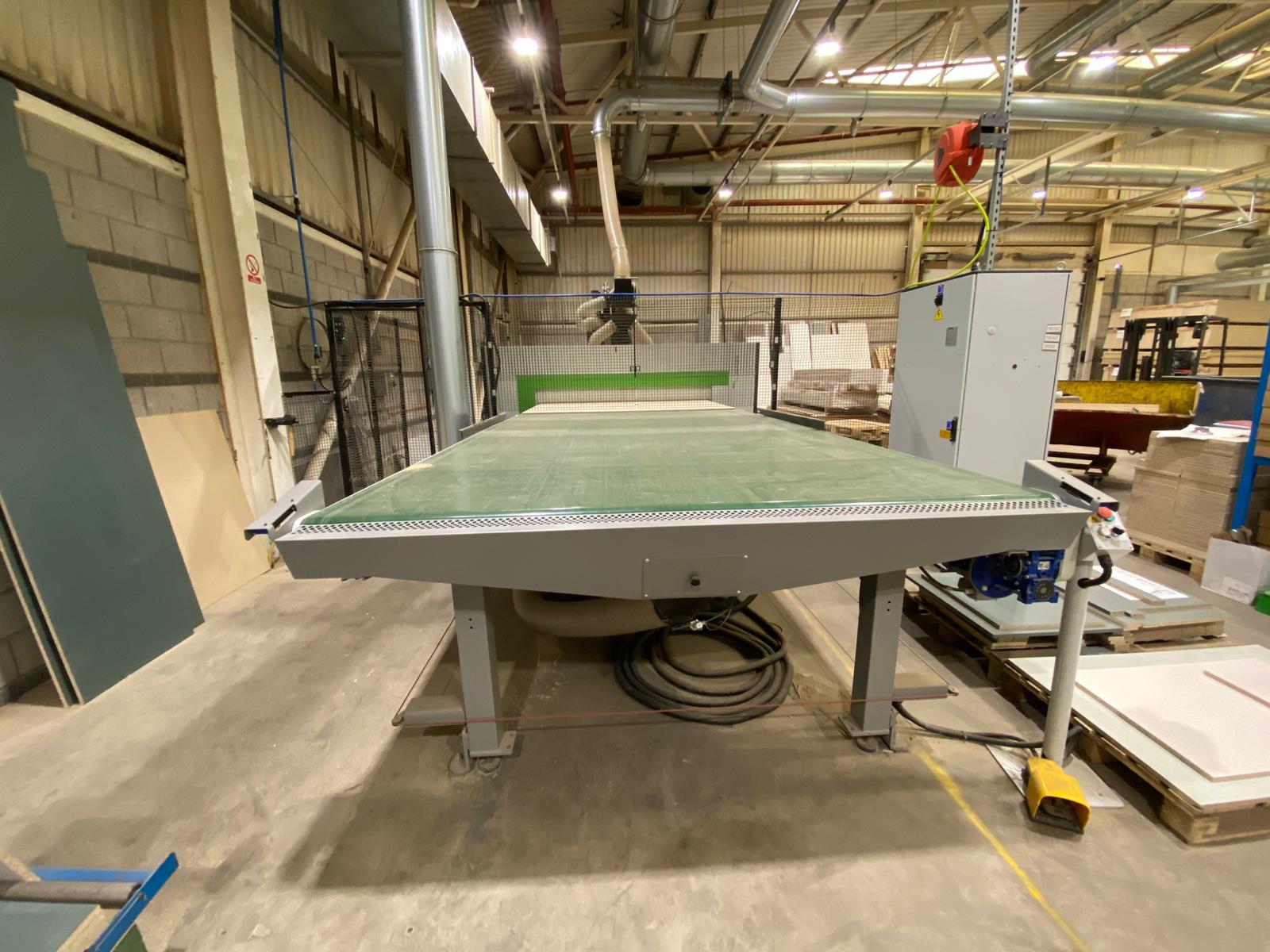

| Unloading System | Automatic Sweeping Arm & Belt Conveyor |
| Electrospindle | 9.0kW (12HP) HSD Air-Cooled |
| Tool Interface | HSK F63 |
| Spindle Speed | 1,000 – 24,000 RPM |
| Tool Changer | 14 Position Automatic Tool Changer |
| Boring Head | BH10 Boring Head |
| Horizontal Drilling | Included |
| Tool Length Presetter | Included |
| Software | BSolid 3D CAD/CAM + bNest Nesting Software |

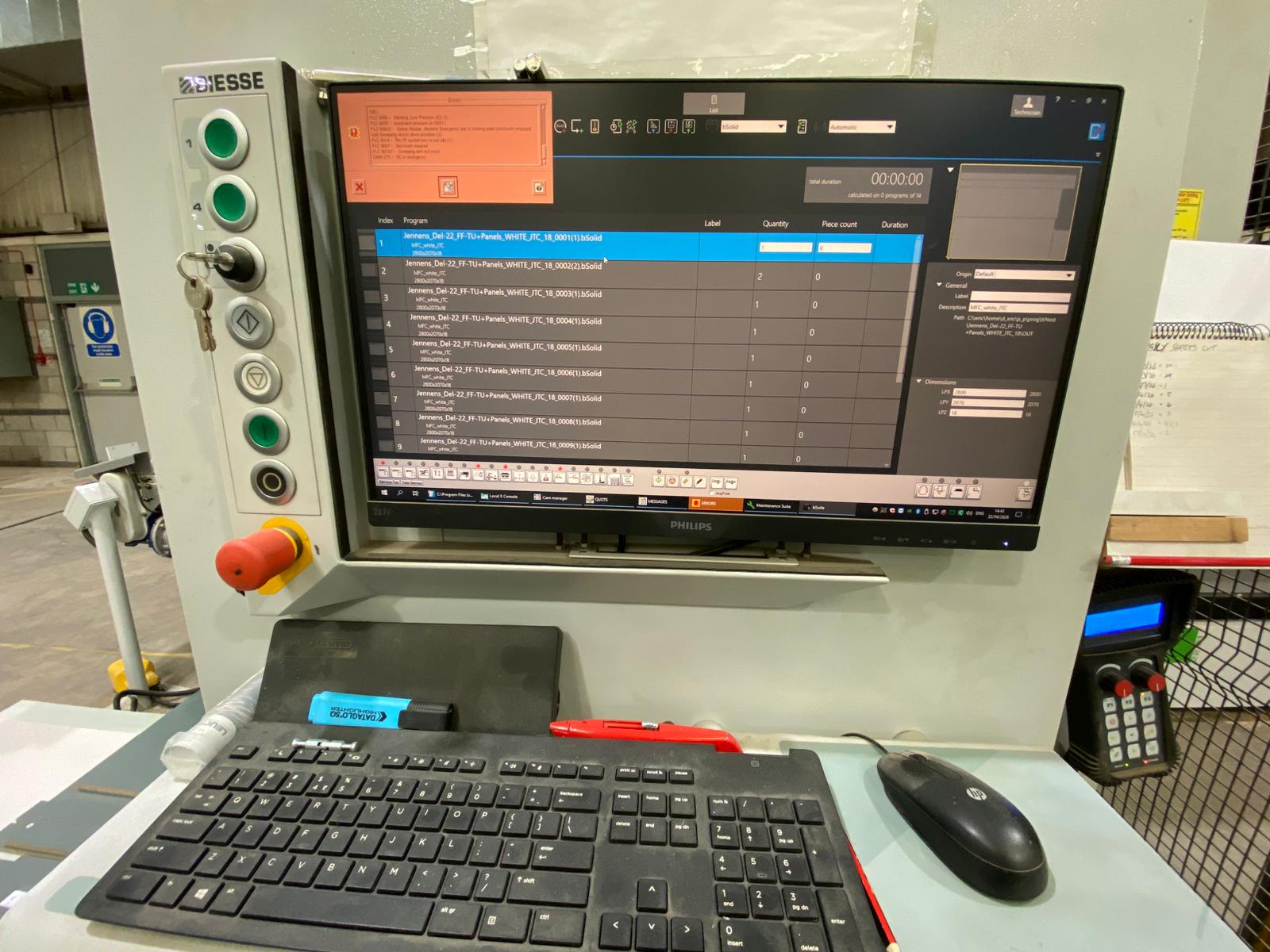

| Machine Control | CNC Numerical Control |
| Power Backup | UPS System for Machine PC |
| Condition | Excellent / Production Ready |
