Description

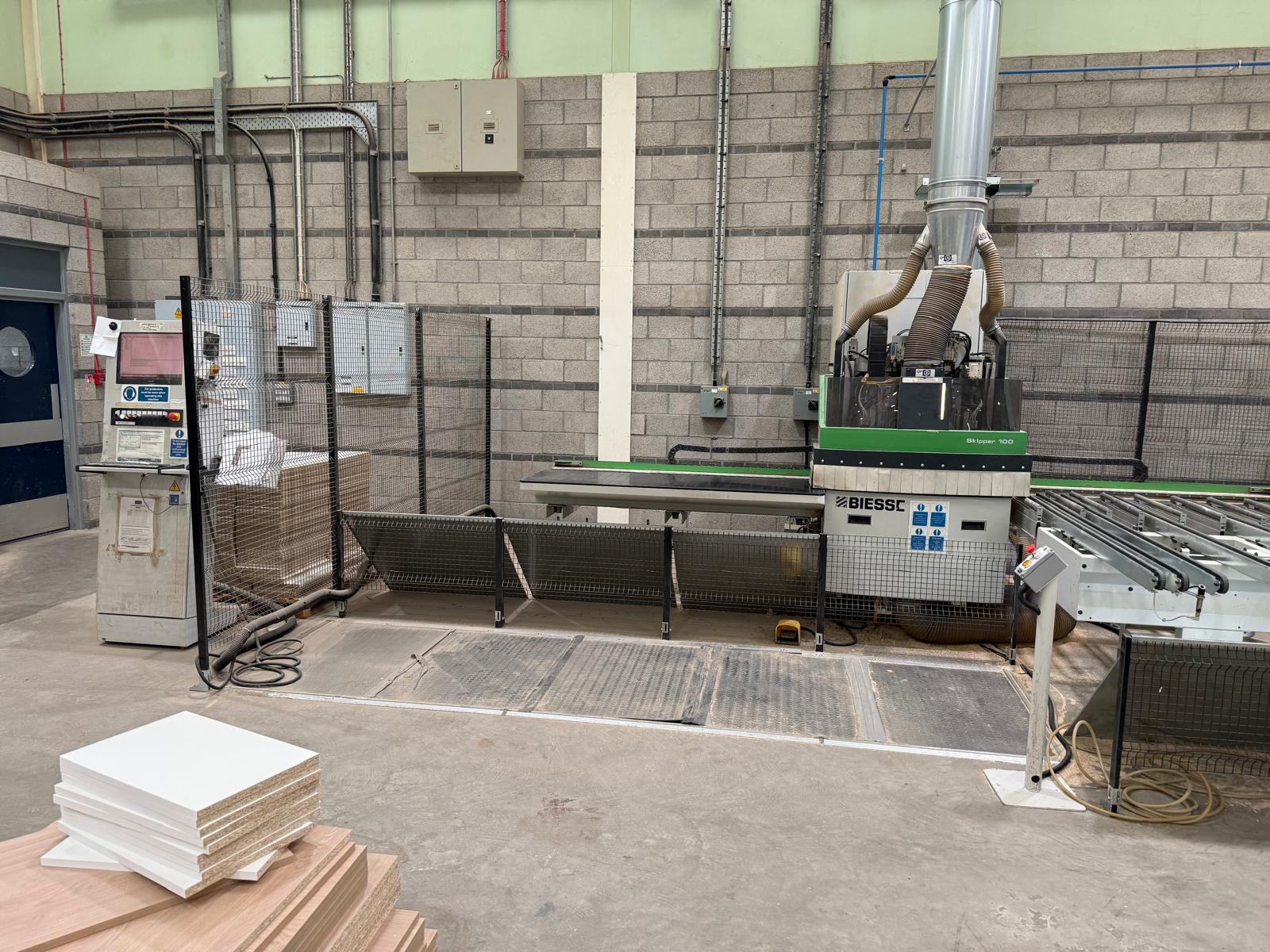

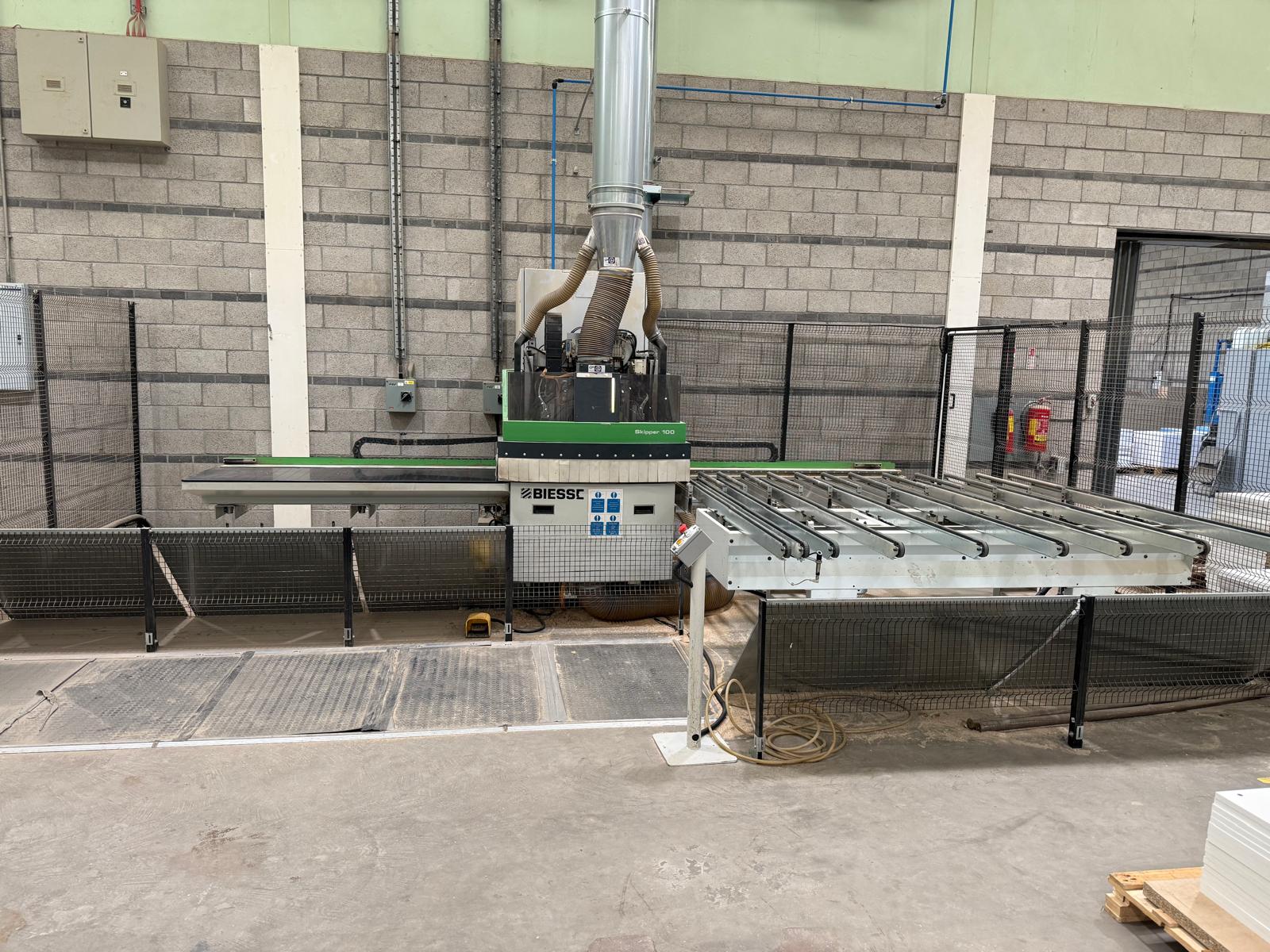

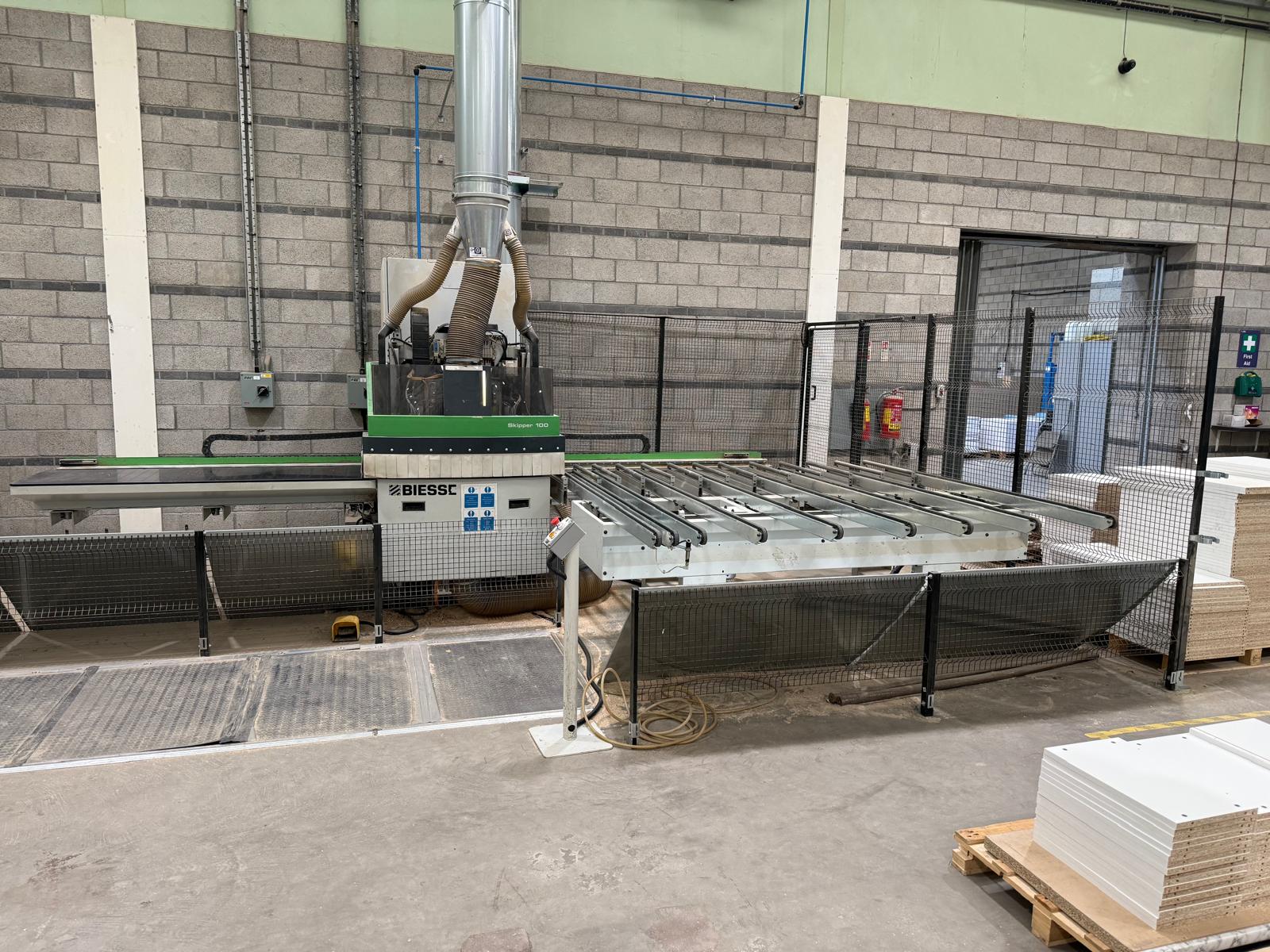

Flexible CNC machining centre designed for the high-speed drilling, routing and grooving of panels. The machine processes components from both above and below, reducing handling and eliminating the need to turn panels manually.
Specification:
- Manufacturer: Biesse
- Model: Skipper 100
- Machine type: Point-to-point CNC drilling and machining centre
- Panel length: 90–2,500 mm on the Skipper 100 S
- Panel length: 90–3,000 mm on the Skipper 100 L
- Panel width: 70–1,000 mm
- Panel thickness: 8–60 mm
- Two opposing machining units for simultaneous top and bottom processing
- 29 vertical drilling spindles per machining unit
- Eight horizontal drilling spindles in the X direction per unit
- Two horizontal drilling spindles in the Y direction per unit
- Two 3.5 kW electrospindles
- Electrospindle speed: Approximately 7,000–18,000 rpm
- Suitable for vertical and horizontal drilling, routing and grooving
- CNC-controlled panel positioning
- Ideal for cabinet components, furniture panels and batch-size-one production
The Skipper 100 provides a flexible point-to-point machining solution capable of processing panels without traditional worktables, vacuum pods or lengthy manual setup.
Further details available upon request.
