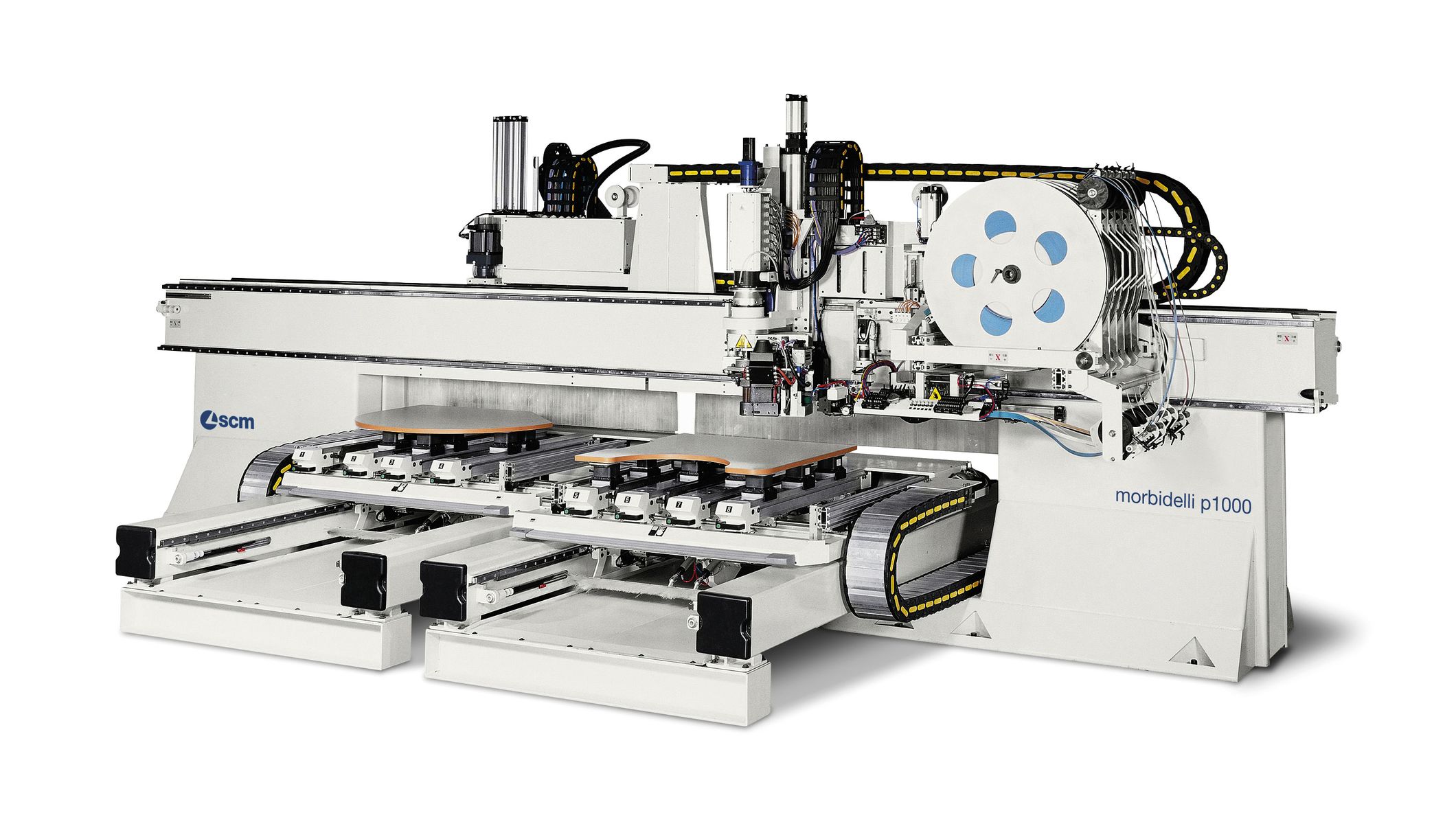

SCM morbidelli p1000 CNC Machine

Multifunction machining centre with high production rate, for completely machining shaped panels with edging application and finishing.

morbidelli p1000 is for all companies which make furniture for offices and shops and want to work to order or in batches, thanks to simultaneous machining of two panels on the mobile worktables.

It is also available with automatically positioned worktable, to minimize setup times.

SKU: morbidelli p1000 Category: Tags: ,

Description

Technical data

 X working area  (1 panel) mm 4000 – 4600
X  working area (2 panels) mm 1600 – 1900 – 3000
Y working area mm 1600 – 1900
Boring spindkes n. 24
Electrospindle power kW 15
Rapid capacity n. 12
Edge height mm 12 – 65
Edge thickness mm 0,4 – 3 (depending on the material)
Coils storage capacity n. 2 – 4 – 6 –
