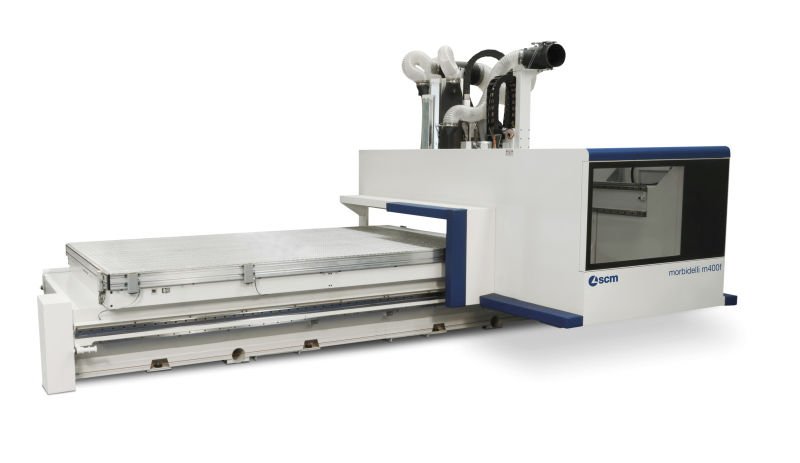

SCM morbidelli m400f CNC Machine

Modular machining centre equipped with multi-function aluminium work table, able to guarantee high quality standards.

Performance without comparison with the mobile gantry structure and easy programming of all production process by means of Maestro CNC software.

Available also in “cell” version with lifting table and unloading belt.

SKU: morbidelli m400f Categories: , , Tags: ,

Description

Technical data

Working areas
X-Y axes dimensions mm 3650×1320
3650×1600
3650×1840
3650×2120
4970×1320
4970×1600
4970×1840
4970×2120
6170×1320
6170×1600
6170×1840
6170×2120
Axes
Vectorial speed X-Y axes m/min 85
Z axis speed m/min 30
Z axis panel passage mm 170
Routing unit
Motor power (max.) kW (hp) 15 (21)
Rotation speed (max.) rpm 24000
Available tools on tool changer (max.) places 36
Drilling unit
Independent vertical spindles (max.) n. 25
Independent horizontal spindles (max.) n. 12
Rotation speed (max.) rpm 8000
Integrated blade in X, diameter mm 125
0-90° integrated blade, diameter mm 160



Additional information

UK / Ireland stock
