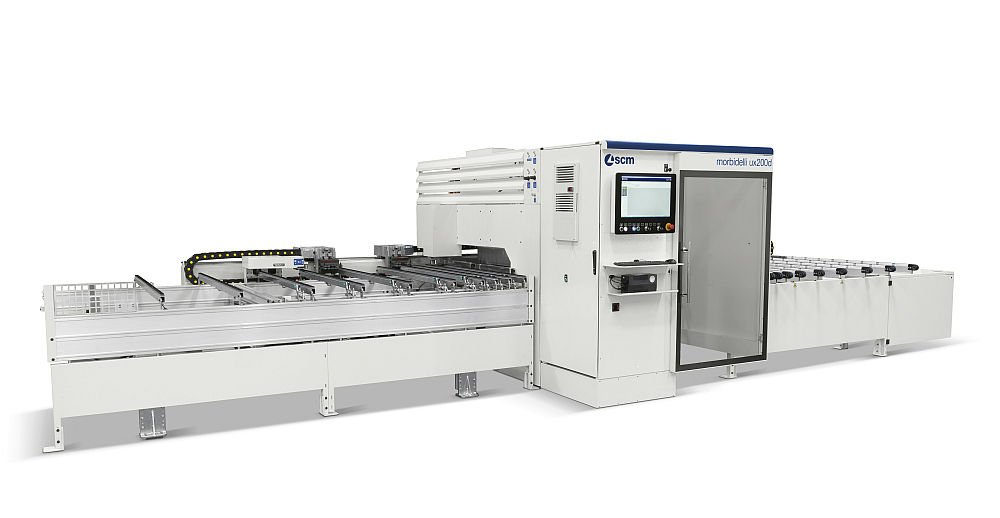

SCM morbidelli ux100/ux200/ux200d Boring Machine

The SCM drilling machines are the products of continuing in-house development complementing the sum of the finest skills and know-how acquired when Morbidelli joined the SCM Group. This brand, with its rich tradition, is known today as a model name.

SKU: morbidelli ux100/ux200/ux200d Category: Tags: ,

Description

Technical data

ux100ux200ux200d
Axes
Panel length (max.)mm3200
Panel width (max.)mm1300
Panel thickness (max.)mm80
Panel weight (max.)kg100
X-Y-Z axes speed (max.)m/min120- 35- 30
Drilling head (std.)
Vertical spindlesno.
rpm
31+31
up to 6000
48+48
up to 6000
48+48
up to 6000
Horizontal spindlesno.
rpm
8(X)/4(Y)
up to 6000
16(X)/4(Y)
up to 6000
16(X)/4(Y)
up to 6000
Integrated blade in X axisØ mm
rpm
125
7500
125
7500
Dowel insertion device with variable stepno.2right+2left
Electrospindle (opt.)
Power (S6)kW (Hp)9,5 (13)
Max. speedrpm24000
Available toolsno.6+6
