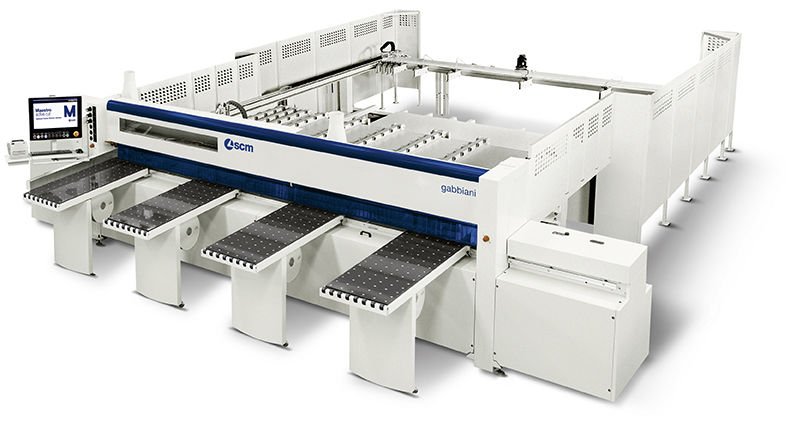

SCM gabbiani st Beam Saw

The SCM beam saws are the products of continuing in-house development complementing the sum of the finest skills and know-how acquired when Gabbiani joined the SCM Group. This brand, with its rich tradition, is known today as a model name.

SKU: gabbiani st Category: Tags: ,

Description

Technical data

  gabbiani st 115
Cutting lenghtmm3200/3800/4500
Cutting depth on platformmm1850/2200
Max. height of panel stack on platform with support beamsmm600
Blade projectionmm115
Saw carriage variable speed (option)m/min0 – 135 (0 – 150)
Pusher variable speed (option)m/min0 – 70 (0 – 90)
Main blade motor S6 – 40% (option)kW9 (11 – 15 – 18)
Scoring unit blade motor 50 Hz kW1,8
Main blade / scorer speed 50 Hzr.p.m.3900/6300
Main blade / scorer blade diametermm400/160
Number of clamps (3 of which with frontal side aligner)std6
