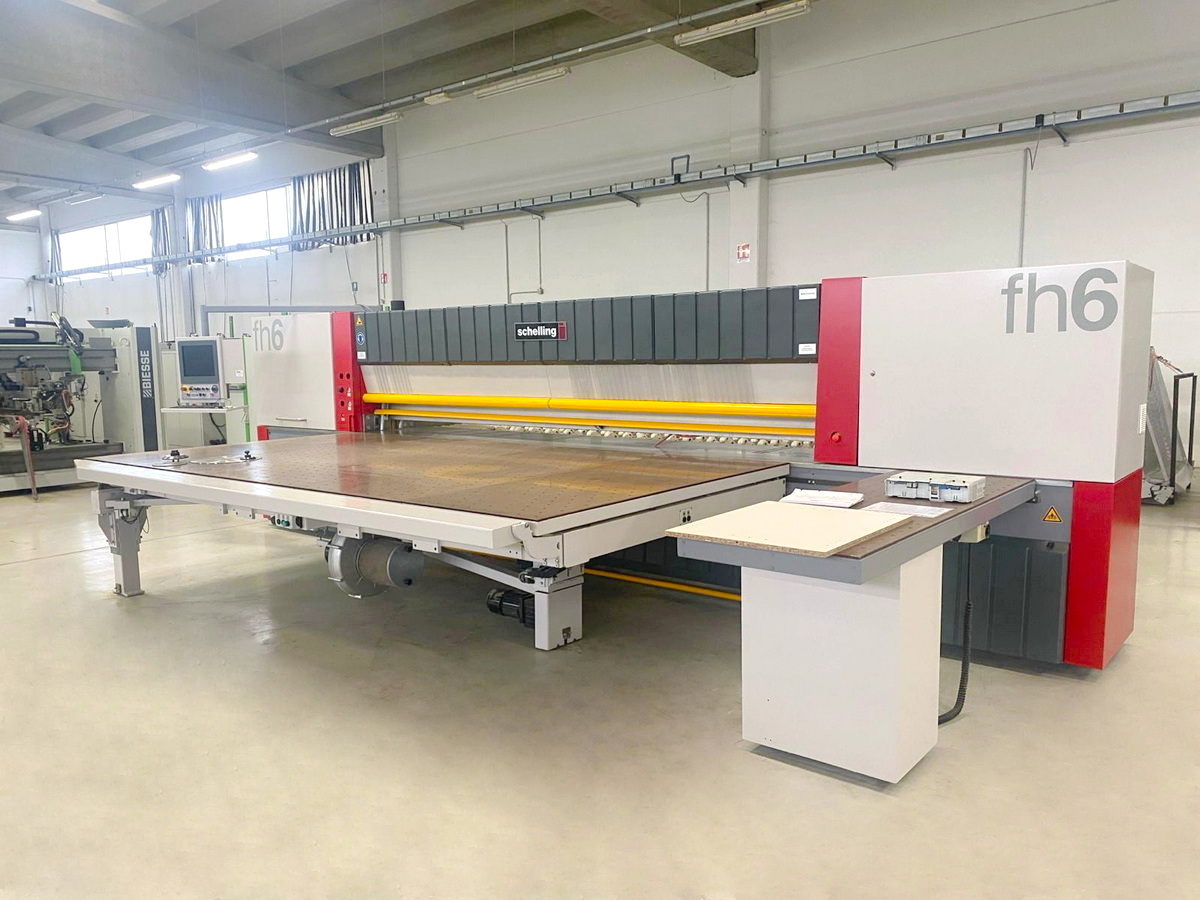

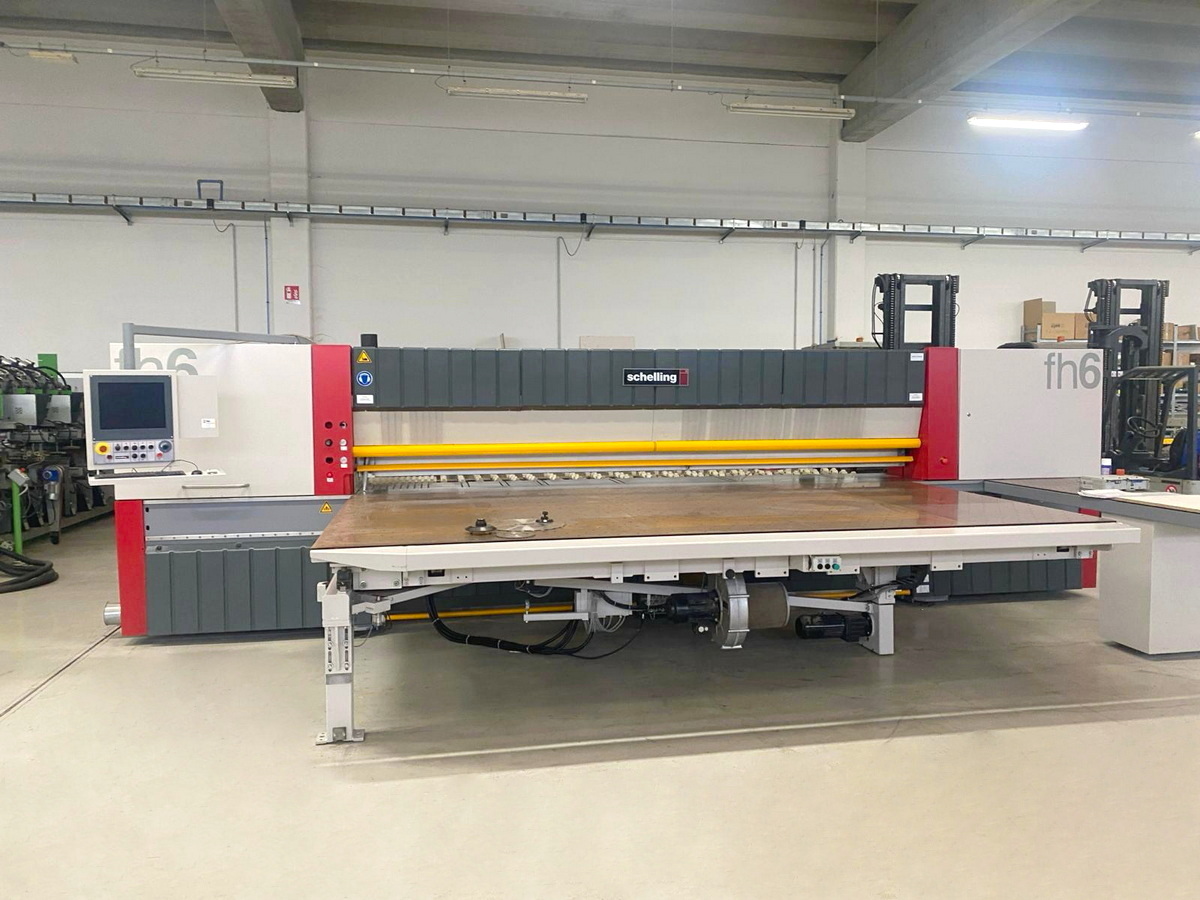

Horizontal Panel Beam Saw – With rear lifting table
Numerical Control MCS Evolution
Software

Lifting table (mm) 4300 x 2200

No. 2 Rear pushers (one with clamps / grippers)
No. 8 clamps / grippers

Max. cutting width (mm) 4200
Useful stroke of the pushing system (mm) 4200

Max blade projection (mm) 135
Max clamps opening (mm) 125

Scoring Unit (max saw diameter / power) 200 mm
Main Sawing Unit (max saw diameter / power) 460 mm – Kw 21

Adjustable speed of the saw carriage (m/min) 6 – 150
Front Turning table (rotating at 90°) with air blowing system (mm 2100 x 4100)
Total power (Kw) 36 (ca.)
