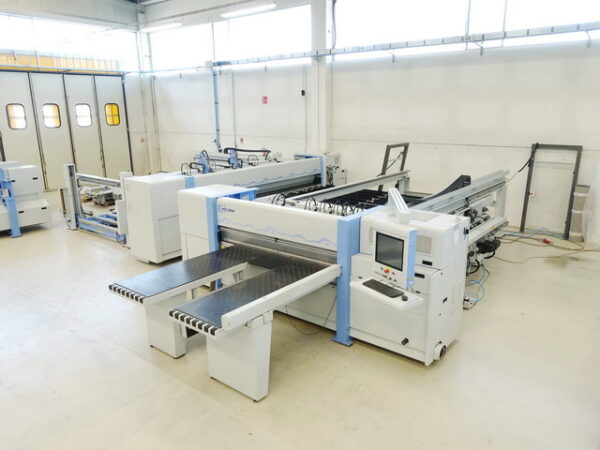

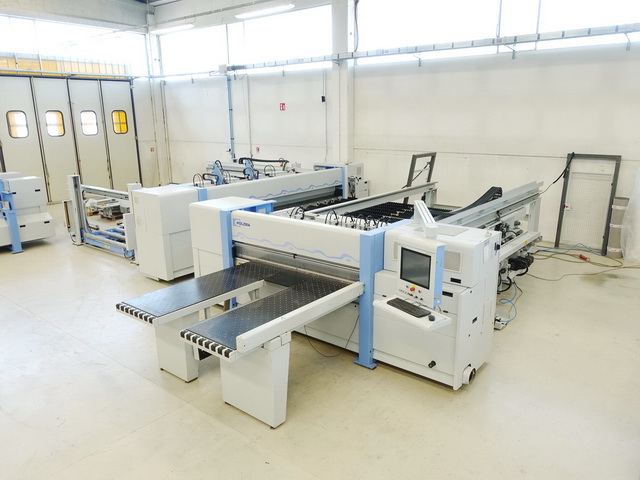

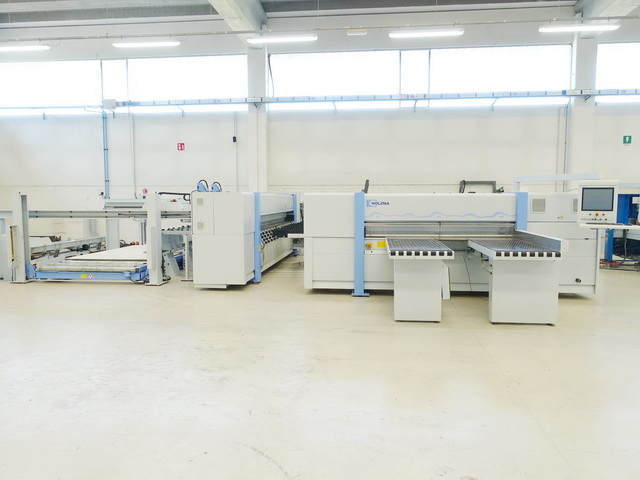

Angular sawing plant
Numerical Control Cadmatic 4- Software 3 D
Rollers table for preloading No. 1

With DELICATE PANELS Cutting System

Lifting table (mm) 2200 x 4300
1st Rear rpusher, with clamps No. 4
1st Panel Saw Max cutting width (mm) 4300
Max blade projection (mm) 125
Scoring Unit (max. diameter saw / power) mm 180 (Kw 2,2)
Main Sawing Unit (max. diameter saw / power) mm 450 (Kw 18)
Adjustable speed of the saw carriage (m/min) 0-150

2nd Rearpusher, with clamps No. 7
2nd Panel saw Max cutting width (mm) 2200
Max blade projection (mm) 125
Scoring Unit (max. diameter saw / power) mm 180 (Kw 2,2)
Main Sawing Unit (max. diameter saw / power) mm 450 (Kw 18)
Adjustable speed of the saw carriage (m/min) 0-150

Front supporting tables with Air blowing system No. 2 + 1
Total power Kw 58
