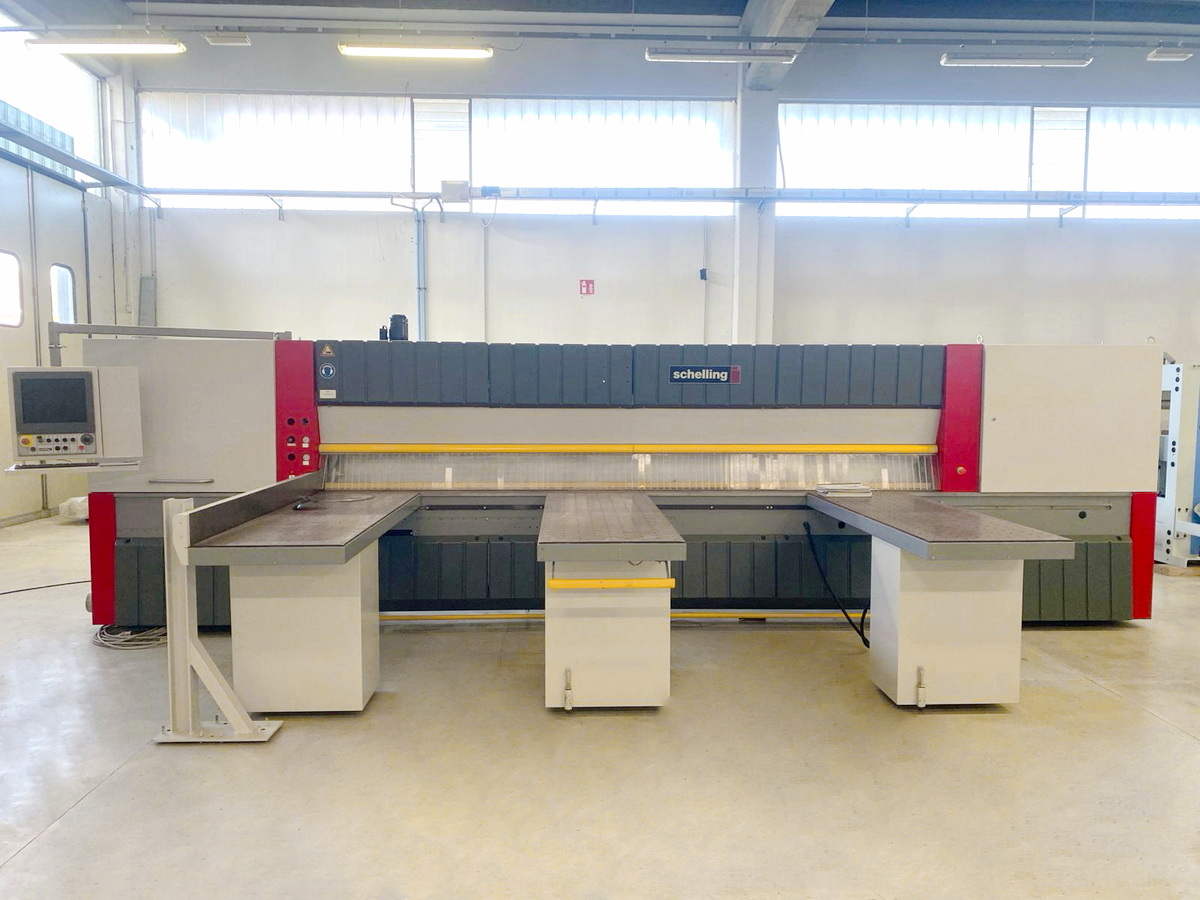

Horizontal Panel Beam Saw – With rear lifting table
Numerical Control MCS Evolution 2.0
Software

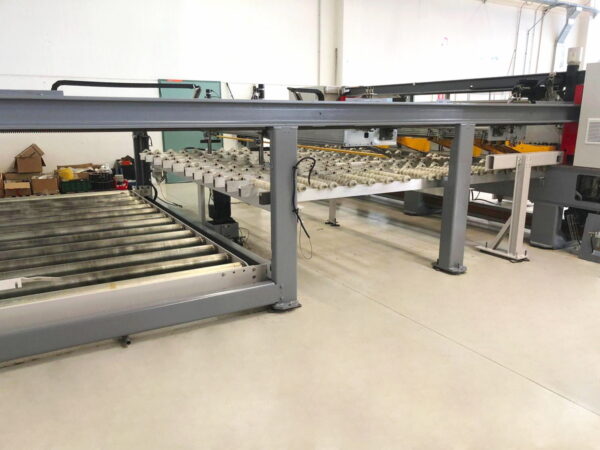

Outside Roller table for pre-loading
Lifting table (mm) 4300 x 2200

No. 2 Rear pushers (one with clamps / grippers)
No. 8 clamps / grippers

Max. cutting width (mm) 4300
Useful stroke of the pushing system (mm) 4300

Max blade projection (mm) 135
Max clamps opening (mm) 125

Scoring Unit (max saw diameter / power) 200 mm
Main Sawing Unit (max saw diameter / power) 460 mm – Kw 27

Adjustable speed of the saw carriage (m/min) 6 – 150
Front supporting tables with Air blowing system (N.) 3
Total power (Kw) 32 (ca.)
