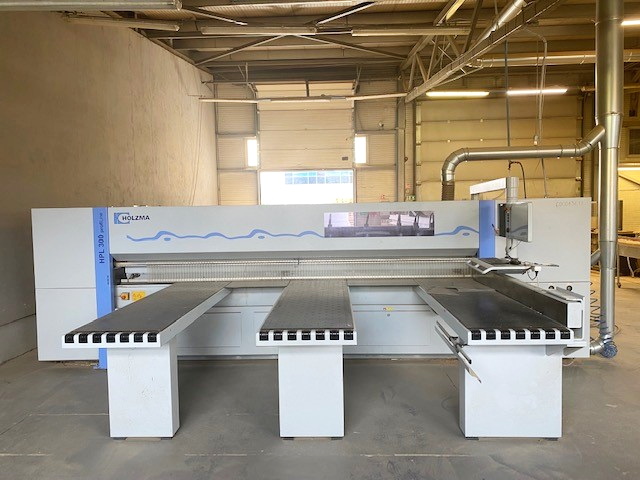

PANEL BEAM SAW WITH REAR LIFTING TABLE

Numerical Control POWERTOUCH
CADMatic 4 PROFESSIONAL (2D + 3D MOVING GRAPHICS)

Lifting scissor table (mm) 3800 x 2200
Rear pushers (N.) 1
With clamps / grippers (No.) 7 + 1 with two fingers (Total 8)

Max. cutting width (mm) 3800
Max blade projection (mm) 80

Scoring Unit (max saw diameter / power) mm 180 / Kw 2,2
Main Sawing Unit (max saw diameter / power) mm 350 / Kw 13,5
Adjustable speed of the saw carriage (m/min) 1 – 130
Front supporting tables with Air blowing system (N.) 3 (2160mm x 650mm)
