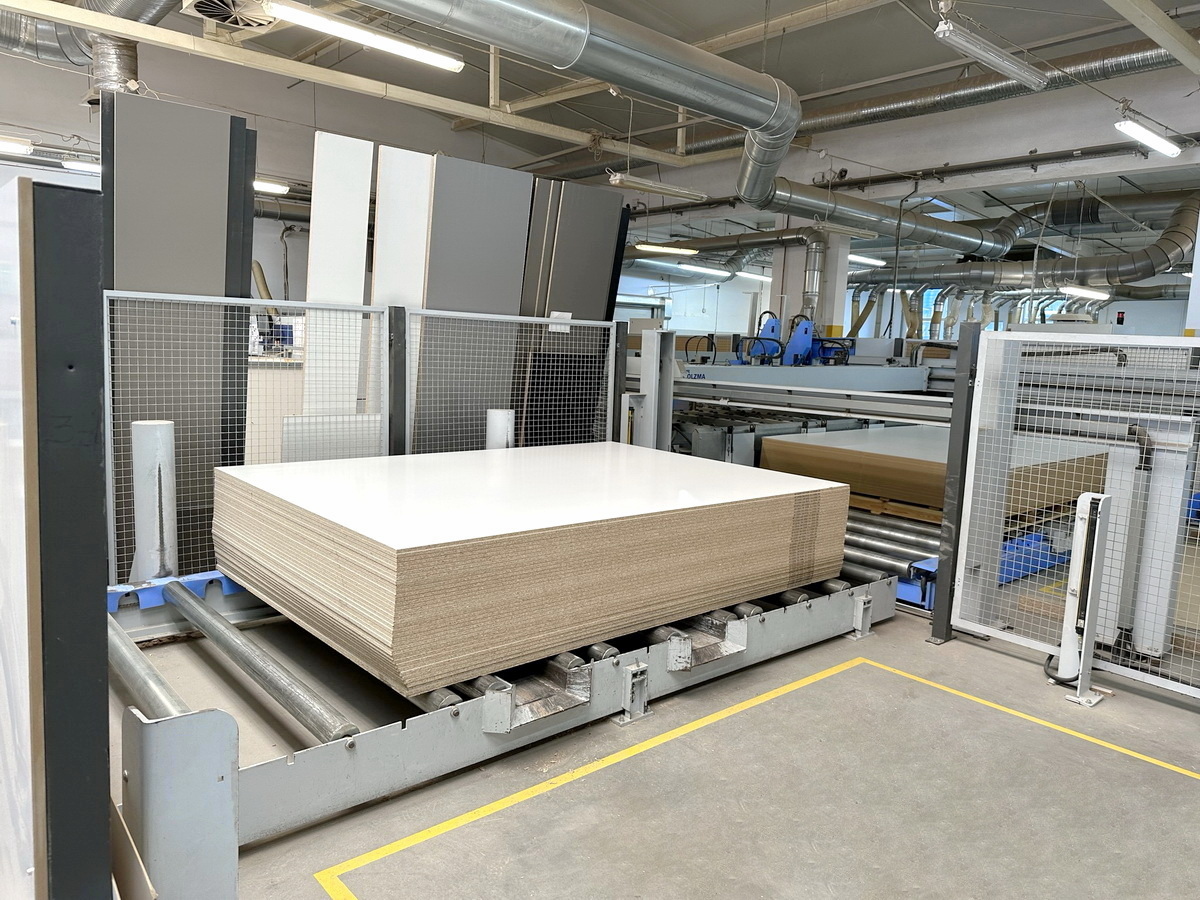

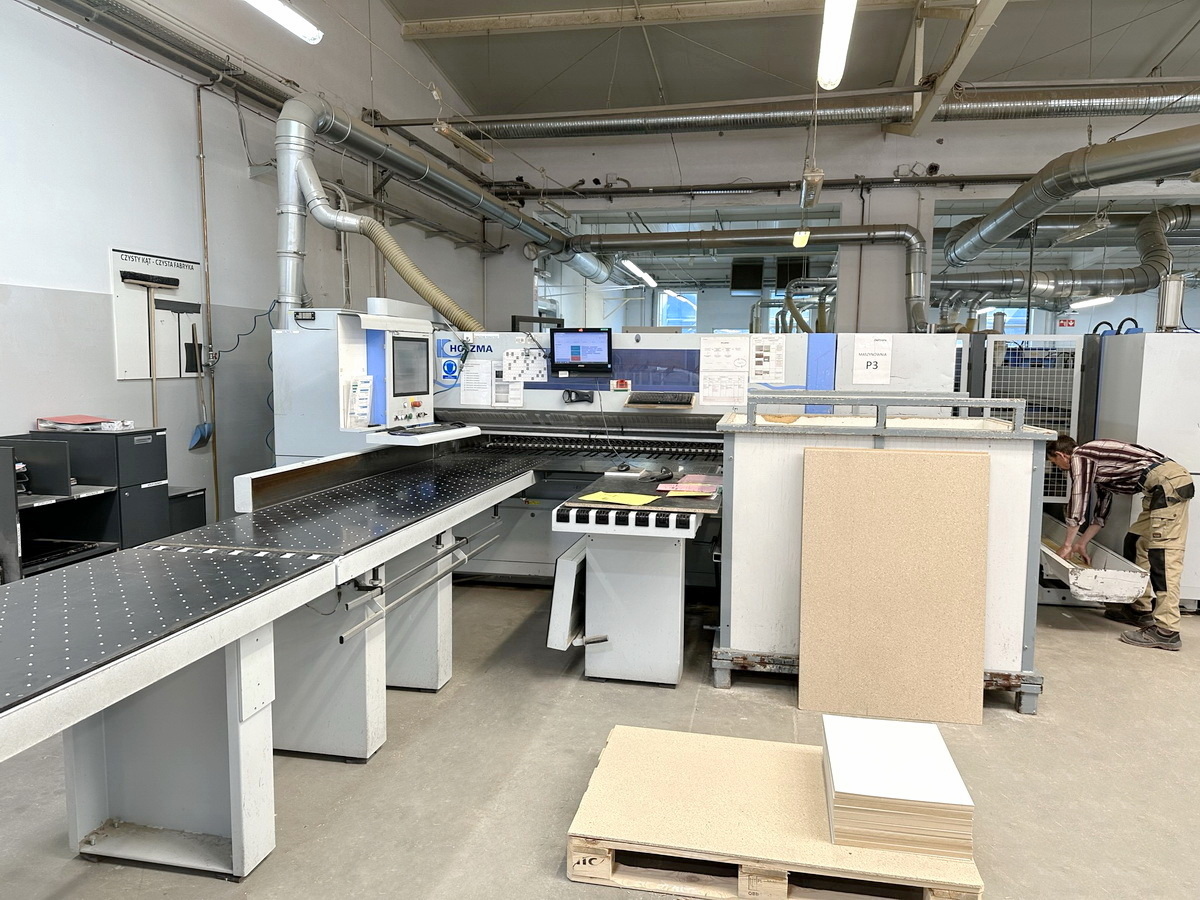

Angular sawing plant

Numerical Control Cadmatic 4 professional
Rollers table for pre-loading No. 1 (mm 2200 x 4400)
Lifting table (mm) 2200 x 4300

1st Rear pusher, with clamps No. 4
1st Panel Saw Max cutting width (mm) 4300
Max blade projection (mm) 125
Scoring Unit (max. diameter saw / power) mm 180 (Kw 2,2)
Main Sawing Unit (max. diameter saw / power) mm 450 (Kw 18)
Adjustable speed of the saw carriage (m/min) 0-150

2nd Rear pusher, with clamps No. 8
2nd Panel saw Max cutting width (mm) 2200
Max blade projection (mm) 125
Scoring Unit (max. diameter saw / power) mm 180 (Kw 2,2)
Main Sawing Unit (max. diameter saw / power) mm 450 (Kw 18)
Adjustable speed of the saw carriage (m/min) 0-150

Front supporting tables with Air blowing system No. 2
With extra long air blowing table to facilitare the evacuation of the cut panels
Total power Kw 52.6
