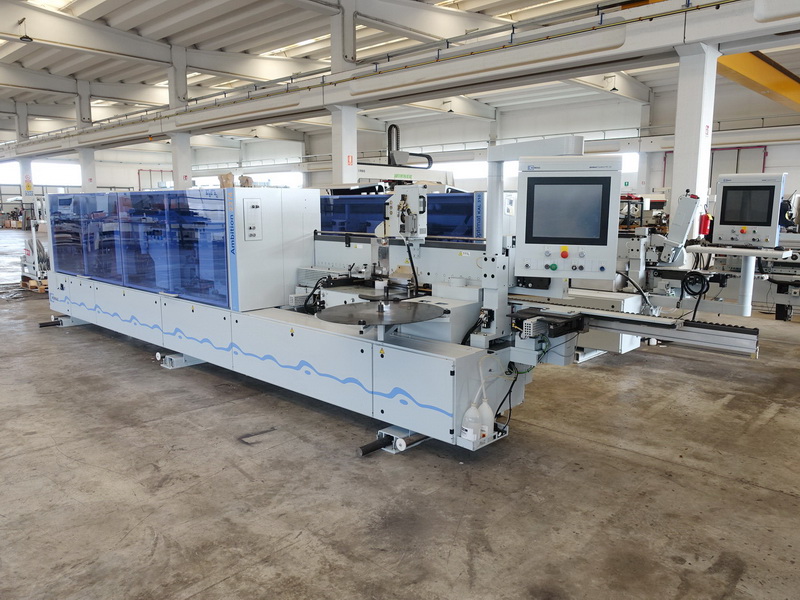

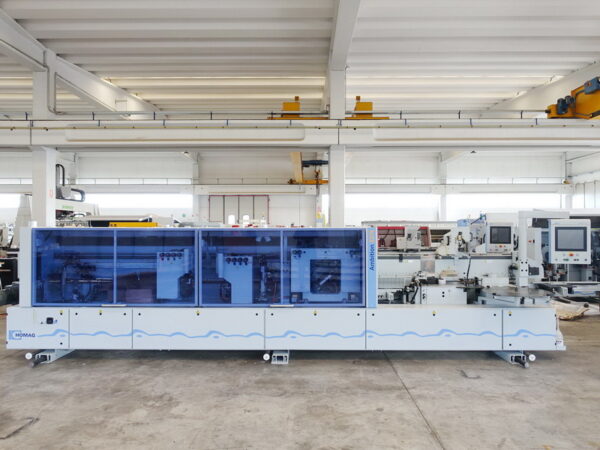

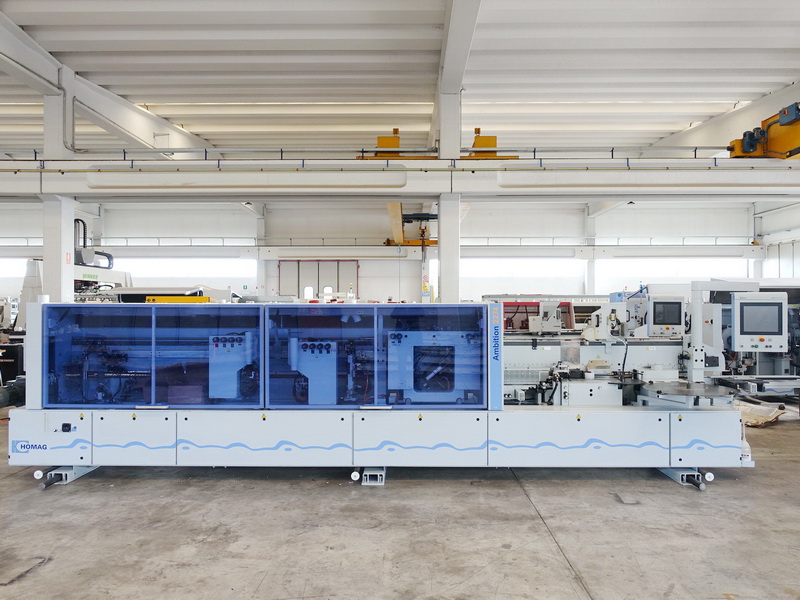

SINGLE SIDE EDGE BANDER (Left)
Edges (band in rolls) thickness (Min/Max) mm 0,3 / 3
Edges thickness in strips / lippings (min/max) mm 0,4 / 20
Panels thickness (min/max) mm 12 / 40

Numerical Control PC22 (screen TFT / Touch Screen) with software WoodCommander
Feeding speed (adjustable) m/min 18 – 25
Top pressure system with rubber belt
In-feed fence, adjustable by N.C.

Pre-milling Unit (vertical joint trimmers) 2 x kW 4
Glueing Unit (Hot Melt Glue + Quick Melt system) A20 (Quick Melt)
Prepared to be able to install the LASER Unit
Band Pressure zone “C” adjustable by N.C.
Edge coils supporting unit (No. 1 reel)

Snipping (end-cutting) unit HL 84 (2 x kW 0,8) pneumatic adjustment
Rough Trimming unit BF10 ( 2 x kW 1,5)
Multi Function Unit (Profile contour Trimming unit) FK11 (2 x kW 0,55 ca.)
Profile edge scraping unit PN10
Finish processing unit ( Glue scraper + Buffing unit) FA 11
