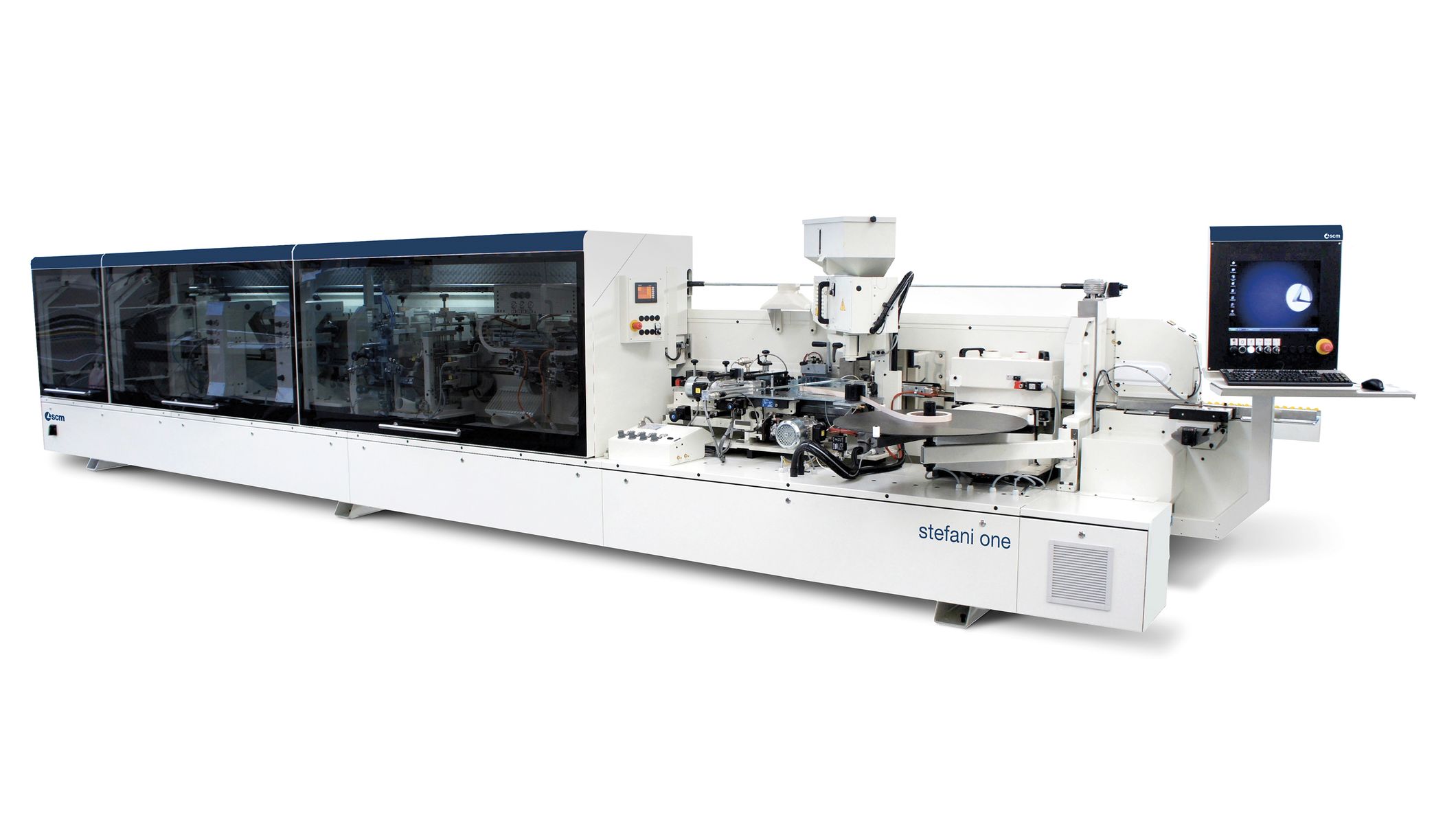

SCM stefani one Edgebander

stefani one is a High End single-sided edgebander designed for large industry and for extra intensive use. Modular lengths of up to 16 meters grants the performance of complete and customized processes for edgebanding of soft-forming components, J-Shape, Doors and Tops with the use of materials for the latest generation finishes. High productivity and low operating costs are guaranteed by the wide range of Heavy Duty working units. Thanks to the specific design they can process any kind of production mixture at the touch of a button.

SKU: stefani one Categories: ,

Description

Technical data

Max feed speed m/min 40
Roll material thickness mm 0.3 – 3
Strip material thickness (ready-cut/veneer strips) mm 0.4 – 1
Max solid wood strip thickness mm 25
Panel thickness  mm 8 – 60 (8-80 opt)
Panel dimensions   according to the composition
Max required overall dimensions m 15
Pneumatic system MPa 6
Gluing technology   EVA, PUR, EVA/EVA, EVA/PUR, PUR/PUR, SLIM LINE
Zero glue line technology   AirFusion+
Possibility to integrate in a cell   Yes
Machine versions   Left (right on request)
Type of panel introduction   Manual (std)
Semiautomatic (opt)
Automatic (opt)
