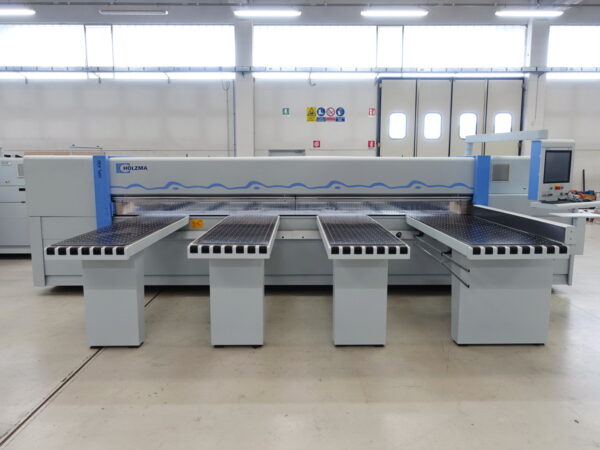

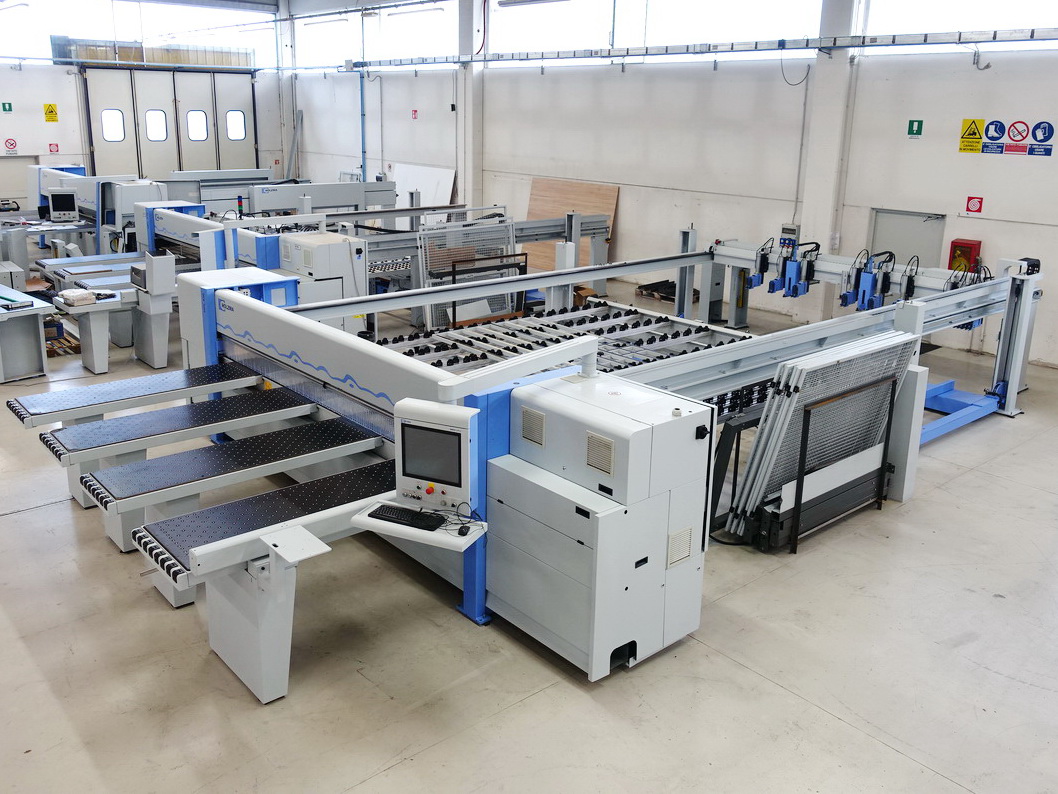

Panel Beam Saw – With rear lifting table

Numerical Control POWER CONTROL
Software CADmatic 4.1 Professional

Lifting scissor table (mm) 4300 x 2200
Rear pushers (N.) 1
With clamps / grippers 7

Turning device (rotating unit) at 90°

Max. cutting width (mm) 4300
Useful stroke of the pushing system (mm) 4300
Max blade projection (mm) 125
Postforming scoring unit mm 280

Scoring Unit (max saw diameter / power) mm 180 / Kw 2,2
Main Sawing Unit (max saw diameter / power) mm 450 / Kw 18 (ca.)
Adjustable speed of the saw carriage (m/min) 1 – 150
Front supporting tables with Air blowing system (N.) 4
Total power (Kw) 28 (ca.)
