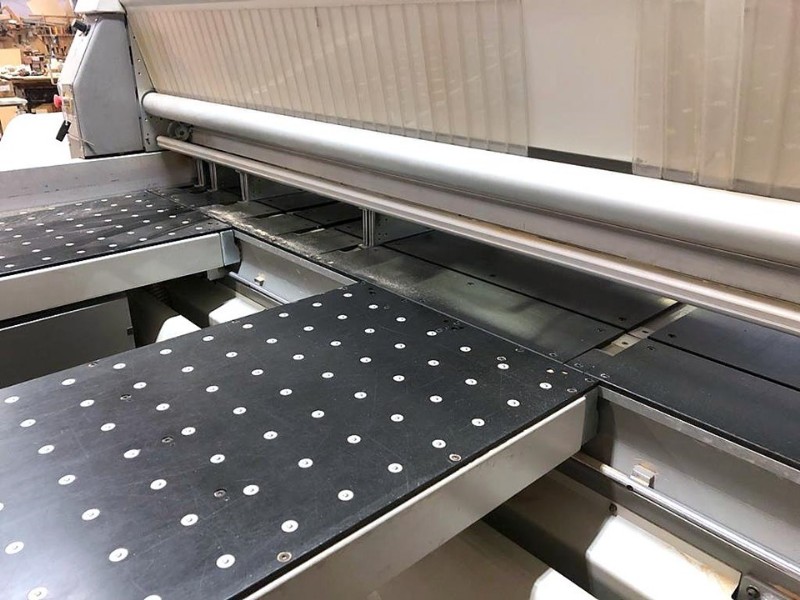

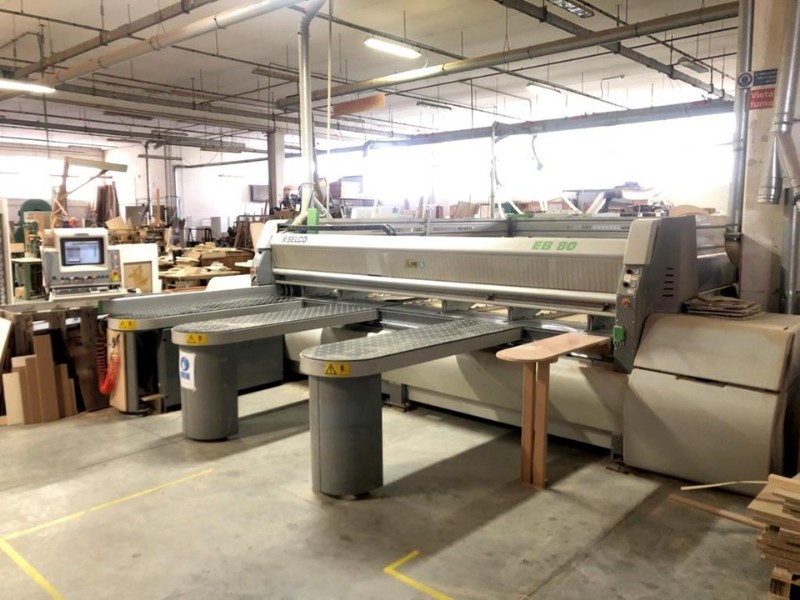

Biesse Selco EB 80 Panel Saw

Description

Description and features:

CONTROL SYSTEM
• PC-based numerical control – Windows operating system
• QUICK OPTI optimization system
• Adjustable hanging command board to control the machine

TECHNICAL FEATURES
• Length of longitudinal cutting (max): 4.300 mm
• Pusher stroke (max): 4.400 mm
• Blade projection (max): 80 mm
• Main blade motor: 11 kW/50 Hz (14,7 HP)
• Scoring motor: 2,2 kW/50 Hz (3 HP)

REAR PUSHERS
• Nr. 1 Longitudinal pusher with nr. 7 grippers

CUTTING AREA
• Nr. 1 Side alignment device with nr. 1 rear roller with automatic positioning

PREDISPOSITIONS AND ACCESORIES
• Digiset device for the electronic regulation of the scoring blade

NORM AND OPTIONAL FOR THE SECURITY
• Copy of originale Ec Declaration of Confoemity
