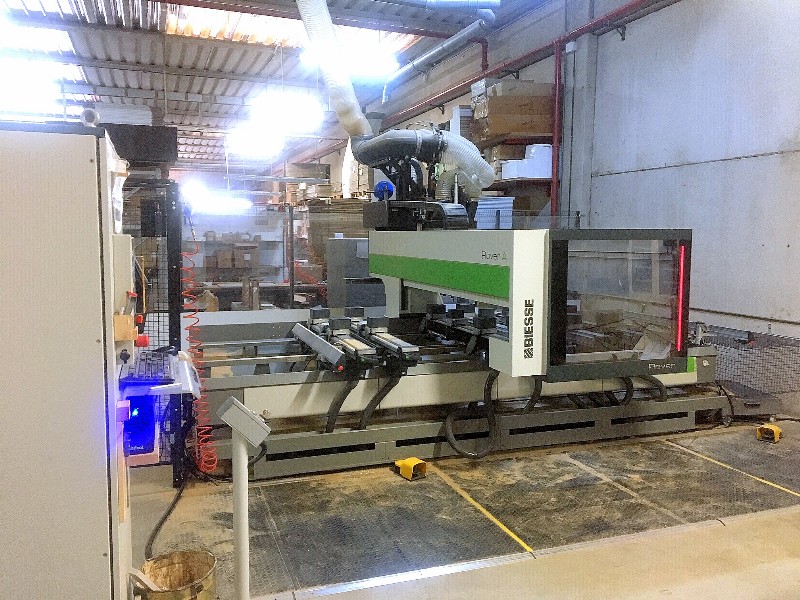

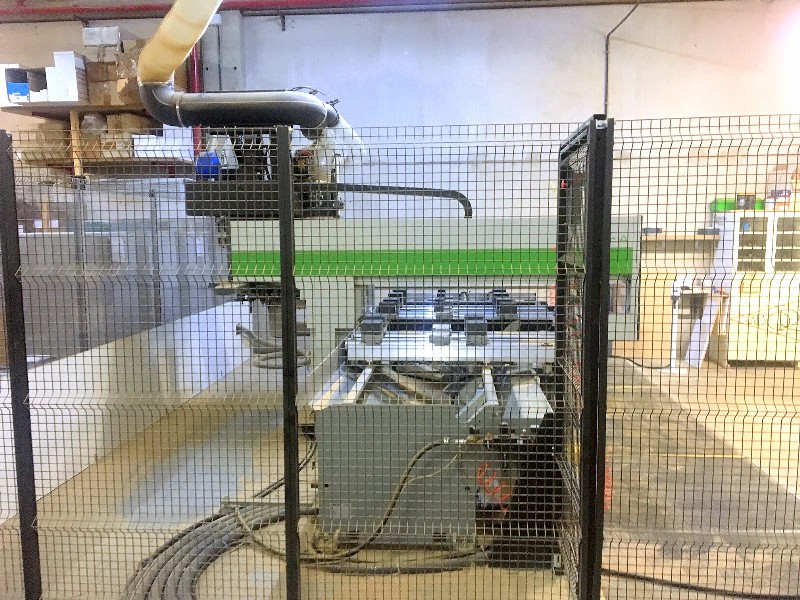

Biesse Rover A 1632 CNC Machine

Description

Description and features:


CONTROL SYSTEM
• Numerical control PC-based – monitor touch screen
• Remote console RM850
• bSolid program complete of: 5 Axis machining module, 3 Axis machining module, 3D engraving module, import external formats module, surface design module – Nr. 1 Additional license
TECHNICAL FEATURES
• Useful working dimensions in “X” – “Y” (max): 3.280 x 1.660 mm
• Useful working area in “Z”: 200 mm with modules with height 74 mm – 245 mm with modules with height 29 mm
PANEL SUPPORT AREA
• Nr. 6 Working tables SA (Set-up Assistant) – manual assisted positioning system with direction and position light indicators – nr. 18 pods
• Nr. 16 Stops complete of sensors for descent (6 rear, 6 intermediate positioned at 670 mm, 4 side stops)
• System for pneumatic locking (for Uniclamps) divided in two working areas
• Nr. 4 Lifting bars for loading support, for modules with height 74 mm
• Nr. 1 Vacuum pump 250 m³/h
BORING UNIT
• Nr. 1 Boring head BH 24 L
GROOVING/MILLING UNIT
• Nr. 1 Electrospindle with 5 interpolated axes 16.5 kW (22.5 HP) clamping system HSK F-63, liquid cooled
• Additional Z rail for rear operating units
• Nr. 1 Revolver tool changer with nr. 16 positions
PREDISPOSITIONS AND ACCESSORIES
• Laser device for manual reading of bar codes
• Automatic lubrication system
• Control unit for refilling of the coolant liquid
• Chips conveyor
NORM AND OPTIONAL FOR SECURITY
• Electronic frontal security mats
• Copy of original EC Declaration of conformity
