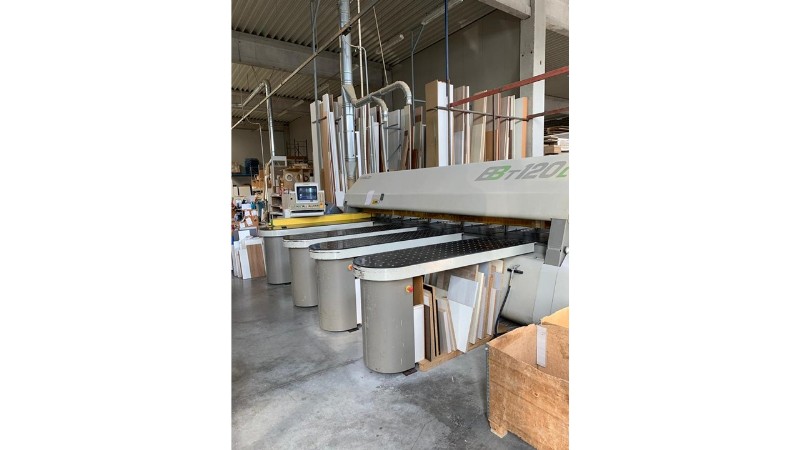

BIESSE SELCO EBT 120 panel saw with lifting table

Category:

Description

Description and characteristics:


CONTROL SYSTEM
• Numerical control on PC base
• STANDARD version of OPTIPLANNING software

• 19459005] swiveling cabinet for machine control

• Built-in electrical cabinet
TECHNICAL FEATURES
• Length of longitudinal cut 4.400 m
• Blade protrusion 110 mm
LOADING AND UNLOADING SYSTEM
• Automatic panel loading with rear lifting table – Table dimensions 4.400 x 2.200 mm
• Feeding table with anti-scratch idle rollers
• Front discharge with nr. 4 planes with air veil
REAR PUSHER
• Nr. 1 Longitudinal pusher with nr. 9 grippers
CUTTING AREA
• Postforming scoring device
• DIGISET device for electronic adjustment of the scoring blade
• No. 2 Front aligners
STANDARDS AND OPTIONS FOR SAFETY
• Original copy of the EC declaration of conformity
• Photocell barriers at the entrance [ 19459008]
