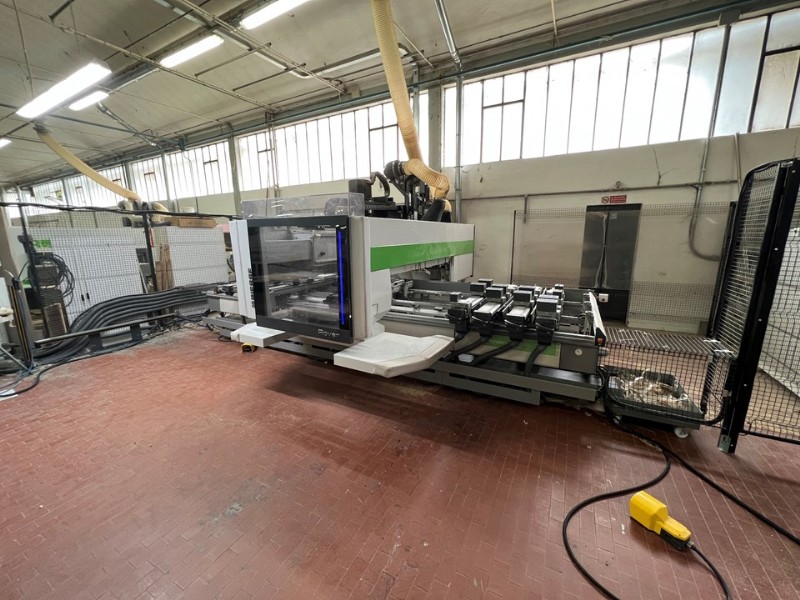

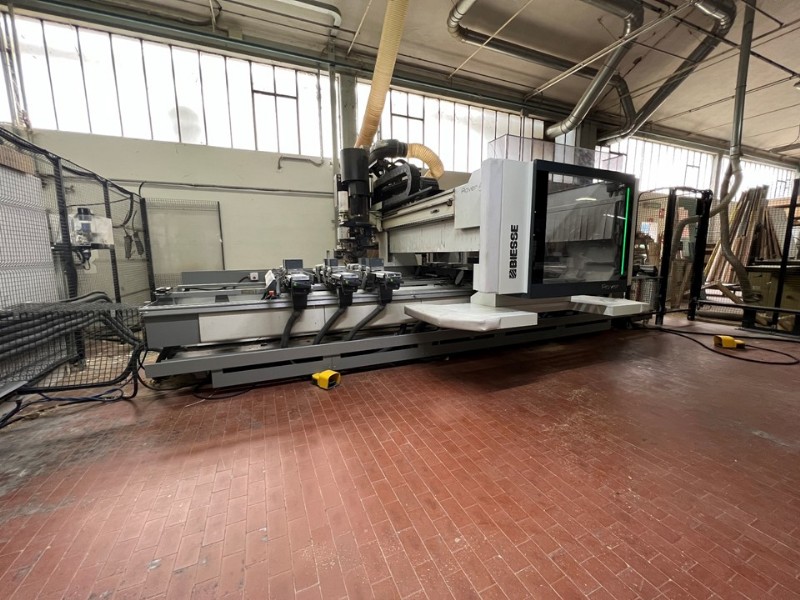

BIESSE ROVER A EDGE 1643

Description

CONTROL SYSTEM
• Numerical control PC-based
• Software bSolid
• Module CAD-CAM 3D – Module 3 axis working – Module bEdge
TECHNICAL FEATURES
• Useful working area (x-y-z): approx. 4.320 x 1.600 x 200 mm
• Useful working area for edgebanding (x – y): approx. 3.300 x 1.500 x 60 mm
PANEL SUPPORT AREA
• Nr. 2 Independent working areas in “X”
• Nr. 10 Working tables SA (Set-Up Assistant) for panel support with manual positioning with light indicator of position and direction – nr. 32 rails
• Nr. 8 Lifting bars for loading aid
• Nr. 28 Stops (nr. 8 back stops, nr. 8 middle stops at 670 mm, nr. 6 side stops, nr. 6 central stops) complete of descent verification sensor
• Nr. 1 Vacuum pump 100 m³/h
DRILLING/SAWING UNIT
• Nr. 1 Extra “Z” Pod for back operating unit
• Nr. 1 Boring head BH 24 L
GROOVING/MILLING UNIT
• Nr. 1 Electrospindle 13,2 kW (17,7 HP) clamping system HSK F63 air cooled complete with working unit device 360° with gears (C Axis Torque)
• Nr. 1 Blowing system with nr. 4 noozles
• Nr. 1  Revolver tool changer with nr. 16 positions ion “X” pod
EDGEBANDING UNIT
• GU60L edgebanding unit for EVA and PUR glue complete of:
– glue bowl for EVA glue + glue bowl for PUR glue
– premelter for EVA glue
– double pressure roller for edgebanding internal radius up to 30 mm; sensor for closed ring joints
• Nr. 1 Edge magazine for nr. 2 coils positioned on “X” pod
• Nr. 1 Edge magazine for nr. 2 coils outside of the machine
• Nr. 1 Blower unit for panel cleaning before edgebanding
• Nr. 1Cleaning station for edge trimming aggregates
• Nr. 1 HSK F63 aggregate for blade diameter max 215 mm
• Nr. 1 Combined rough trimming/edgescraping/gluescraping aggregate EF60A
• Nr. 1 Tool for edgerounding and end trimming
• Nr. 1 Kit for narrow panels 10-60 mm (edge max 2 mm) and 12-60 mm (edge max 3 mm)
PREDISPOSITIONS AND ACCESSORIES
• Automatic lubrication system
• System to out-put the wood wastes (chips)
NORM AND OPTIONAL FOR THE SECURITY
• Copy of original EC Declaration of Conformity
• Bumper and double front and back barriers of photocells
