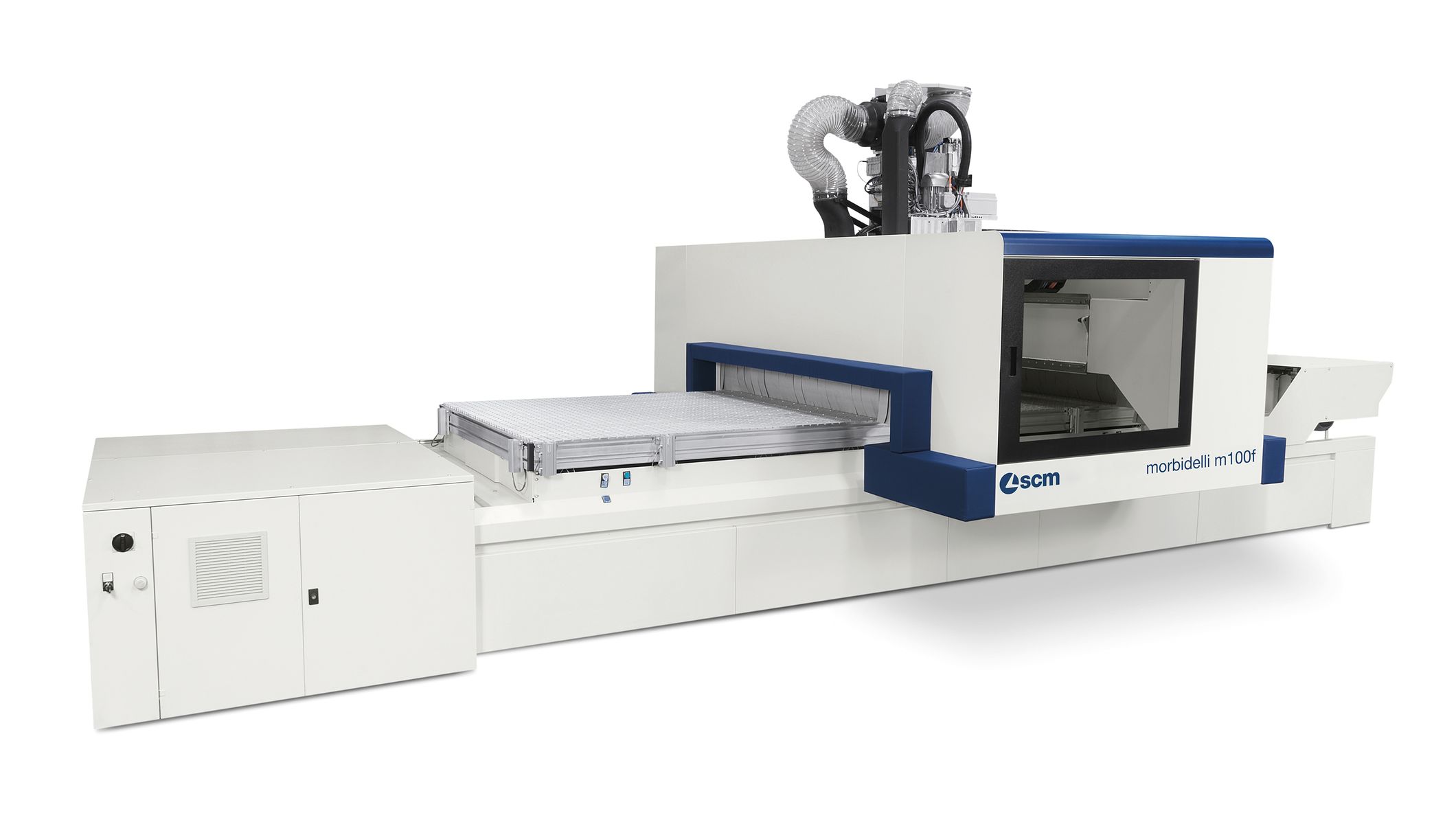

SCM Morbidelli m100/200f

This highly modular machining centre provides answers to all the problems associated with woodworking and with advanced materials processing.
Just a few clicks to design and manufacture pieces of any shape, the machine is run by the Suite Maestro which has specific modules for every production cycle.
Unique on the market in having an unrivalled price-performance ratio, it can be configured according to the customer’s needs and investment plan.

Description

Technical data

m100 fm200 f
Working areas
X-Y axes dimensionsmm3110×1320
3710×1320
5510×1320
3110×1620
3710×1620
5510×1620
3110×1620
3710×1620
5510×1620
Axes
Vectorial speed X-Y axesm/min56 (ProSpace)
78 (ProSpeed)
56 (ProSpace)
78 (ProSpeed)
Z axis panel passagemm180250

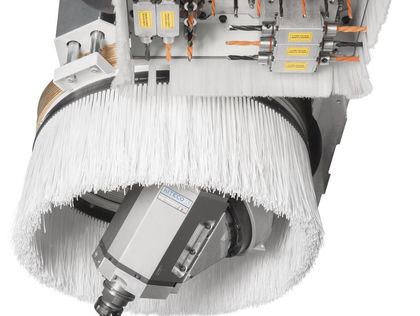

Routing unit
Motor power (max.)kW (hp)15 (20,5)15 (20,5)
Rotation speed (max.)rpm2400024000
Available tools on tool changer (max.)places4460
Drilling unit
Independent vertical spindles (max.)n.2121
Independent horizontal spindles (max.)n.1212
Rotation speed (max.)rpm80008000
Integrated blade in X, diametermm125125
0-90° blade unit
Motor power (max.)kW (hp)2,2 (3)2,2 (3)
Rotation speed (max.)rpm60006000
Auxiliary routing unit
Motor power (max.)kW (hp)4,5 (6)4,5 (6)
Rotation speed (max.)rpm1800018000
