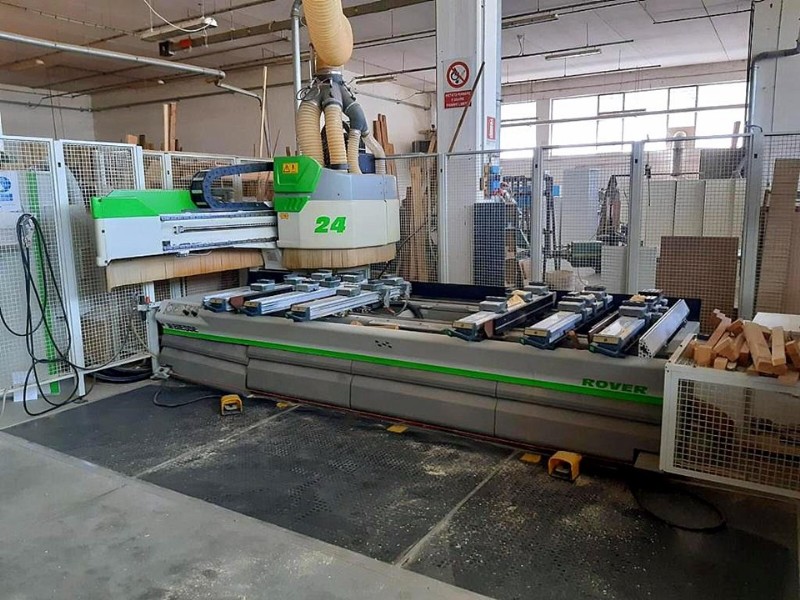

Biesse Rover 24 CNC

Description

Description and features:

CONTROL SYSTEM
• Numerical control NC 500 on PC
• Separated electrical cabinet

TECHNICAL FEATURES
• Useful working area (x-y-z) 2.900 x 1.380 x 140 mm

PANEL SUPPORT AREA
• Nr. 6 Movable working tables ATS for supporting panels
• Nr. 3 Counterblocks for each working table with vacuum system for the locking of the working piece

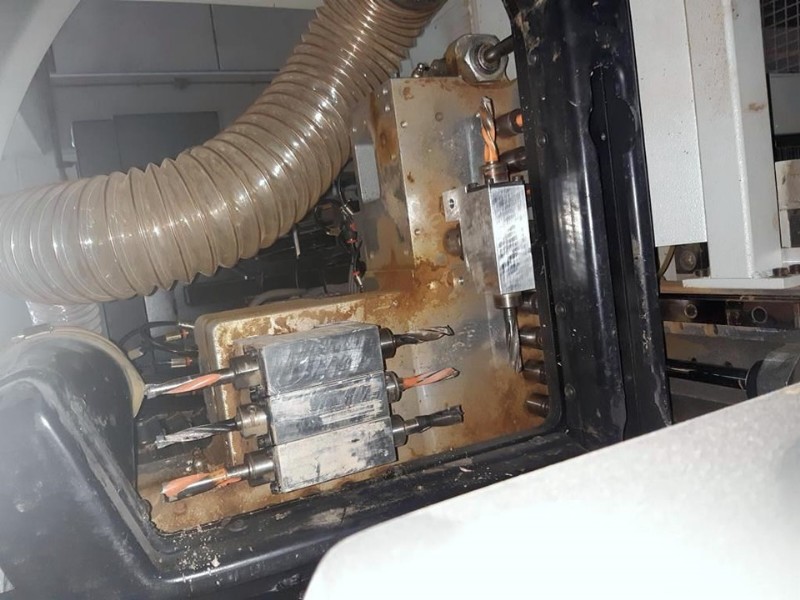

BORING UNIT
• Nr. 1 Boring head completed of:
– Nr. 10 Independent spindles for vertical drilling in “X”
– Nr. 10 Independent spindles for vertical drilling in “Y”
– Nr. 3 Independent spindles with double outlet for horizontal drilling in “X”
– Nr. 1 Independent spindle with double outlet for horizontal drilling in “Y”

SECTIONING/MILLING UNIT
• Nr. 1 Electrospindle with clamping system ISO 30
• Nr. 1 Index circular blade in “x” e “y”
• Revolver tool changer with nr. 10 positions

NORM AND OPTIONAL FOR THE SECURITY
• Copy of original EC Declaration of Conformity
• Frontal electronic security mats
• Lateral security fences
