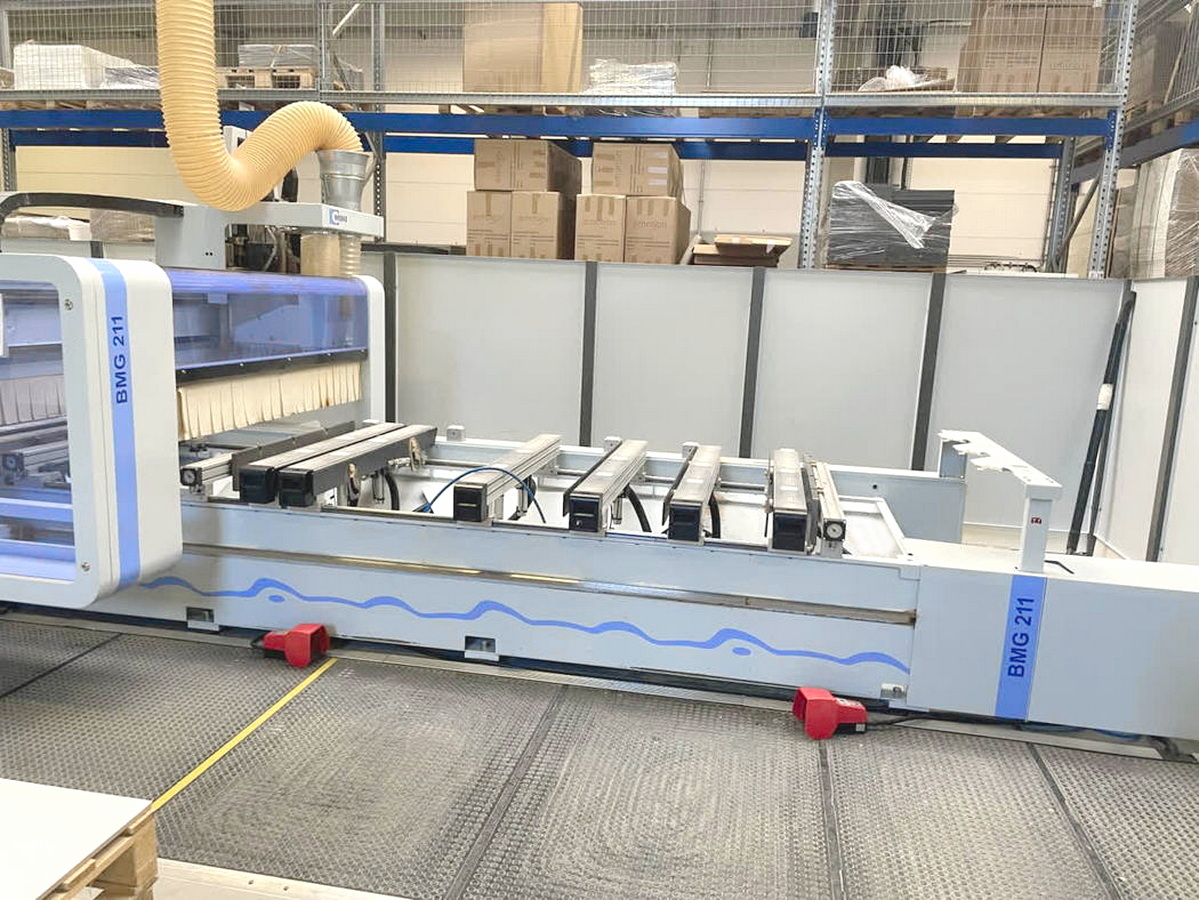

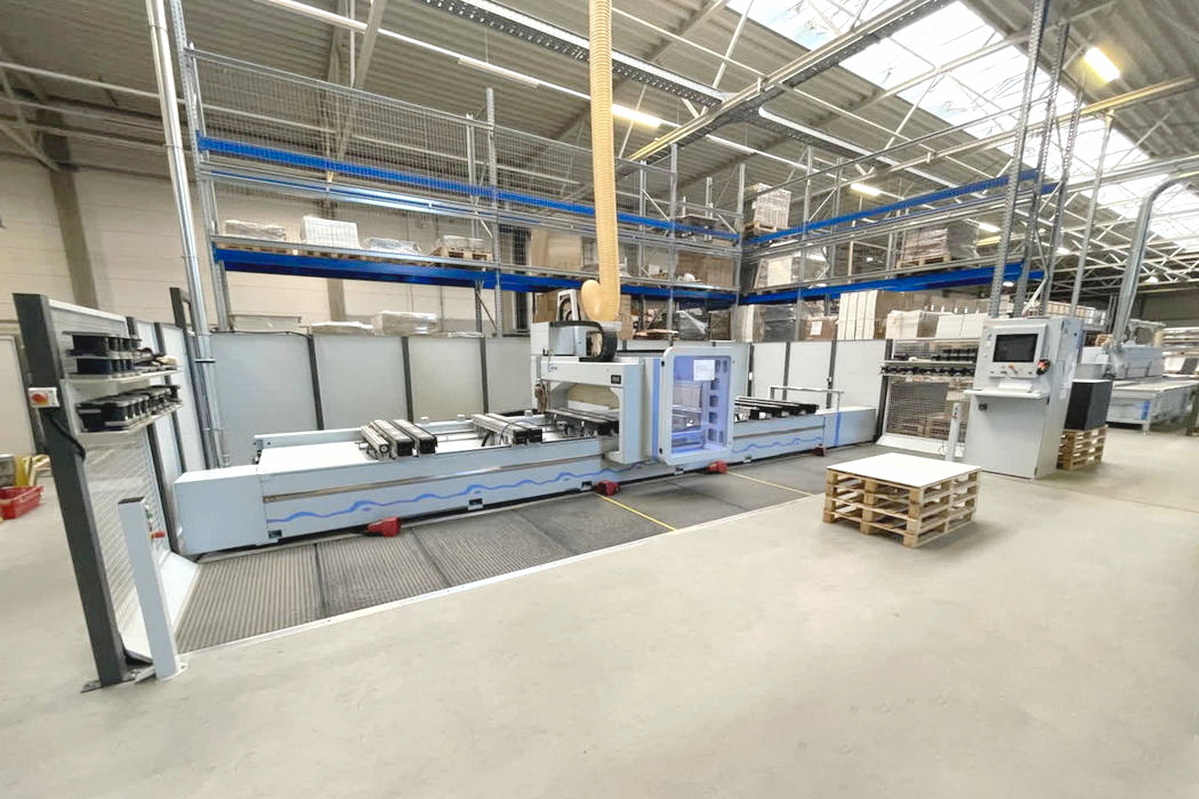

C.N.C. WORKING CENTER (POINT TO POINT) 4 axis
Goose-neck type
Numerical Control Power Control PC85 – Software woodWOP
Safety cabin (enclosure) of the working head
Working table with pods and rails- No. 10 Support rails (lenght mm 1500)
LASER system on X-axe for the rails positioning and on Y-axe for the vacuum pods positioning

Automatic Tools Changing System
No. 2 Tools storage plates TC14 (No. 8 folds) + TC8 (No. 8 folds)
Max. useful working area (X – Y – Z) mm 6000 x max mm 1600 x mm 125
No. 4 Working areas – 2 x Vacuum pump (capacity m3/h)
Separate electric and command cabinet
Total installed power (Kw) 27,5 (ca.)

WORKING GROUPS (TOP):
No. 21 Independent vertical boring spindles (High Speed 7500)
No. 10 Independent horizontal boring spindles (No.6 in X-axe + No. 4 in Y-axe)
Drilling head motor-power (Kw) 2,3
Circular Grooving Saw (tiltable 0°- 90°) diam. (mm) 125 (N1 X-Y 90°)
No. Vertical electro-spindle: HSK63
Vertical electro-spindles motor power KW 9
