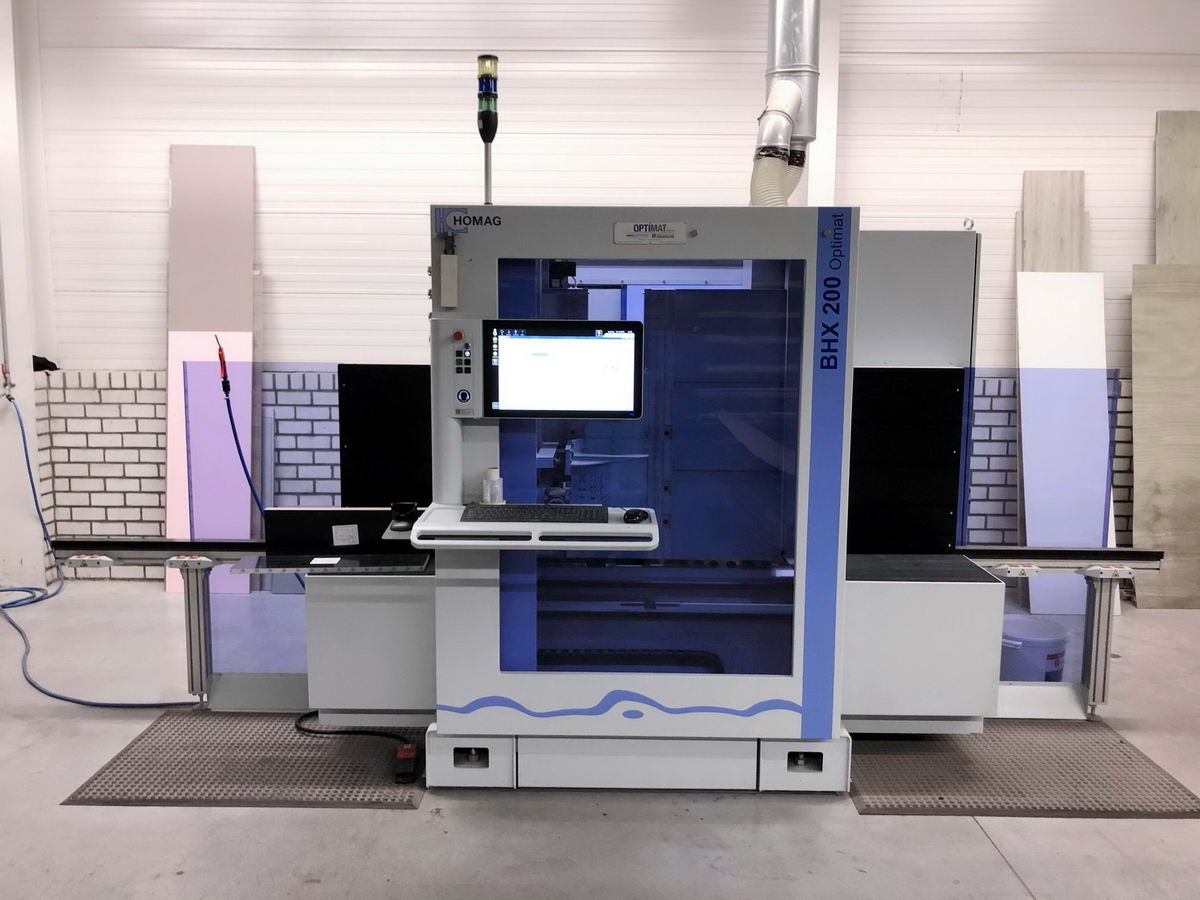

C.N.C. WORKING CENTER 3 axes (X-Y-Z)
Safety enclosure on the working head and of the working area in the machine

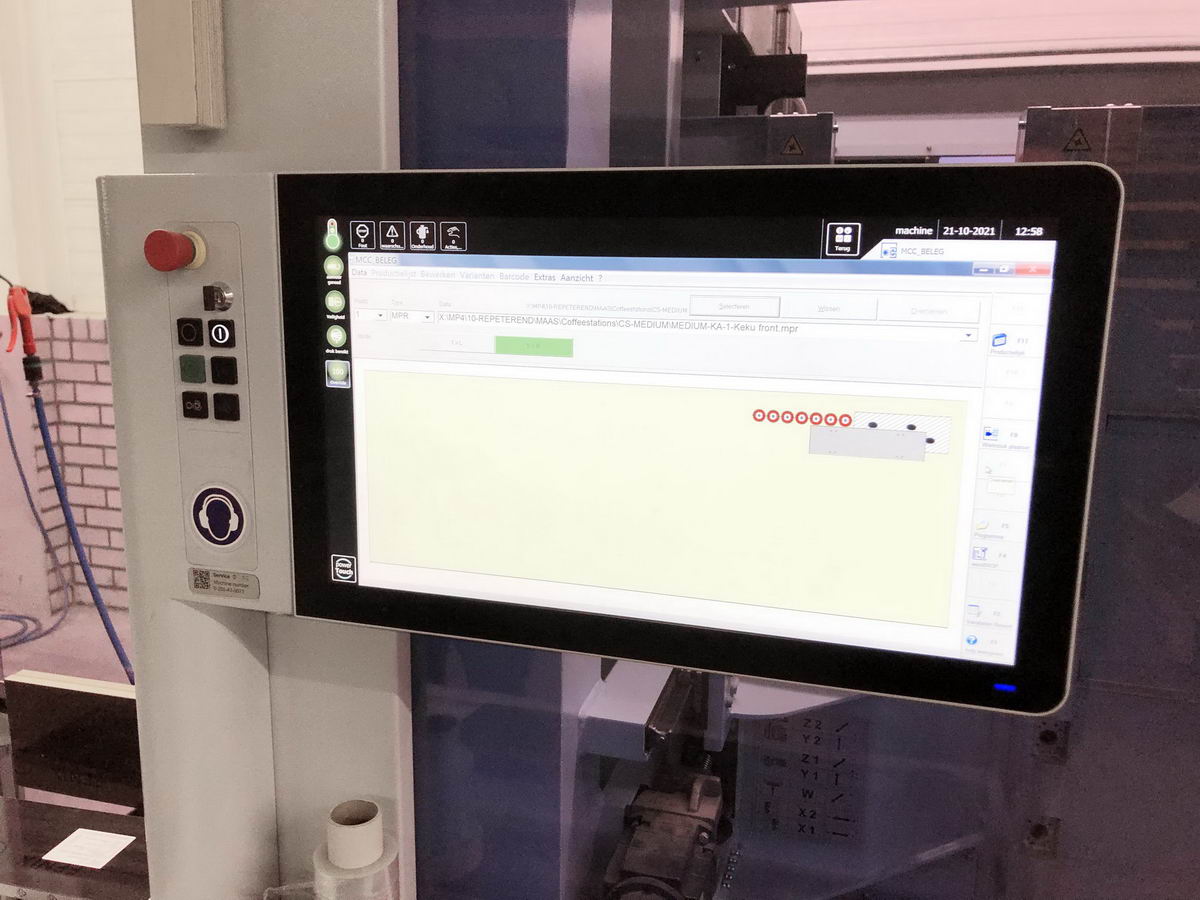

Numerical Control POWERCONTROL + POWERTOUCH
Software WOODWOP

Vertical positioning of the panels/workpieces to be processed,
No. 2 clamps for the panel locking and positioning
Tools storage plate (No. 4 folds-positions)

Workpieces dimensions (workable panels):
Length: Min mm 200 / Max mm 3050
Width: Min mm 50 / Max mm 1250
Thickness: Min mm 8 / Max mm 80

WORKING GROUPS:
No. 1 Vertical electro-spindle (Kw 10) IHSK63
No. 1 Circular (grooving) saw (diam. mm 125) (90°)
No. 10 + 10 Vertical indipendent drilling spindles (Kw 2,3)
No. 8 + 8 Horizontal indipendent drilling spindles: 8 (6 in X + 2 in Y) + 8 (6 in X + 2 in Y)

Bar Code Reader
