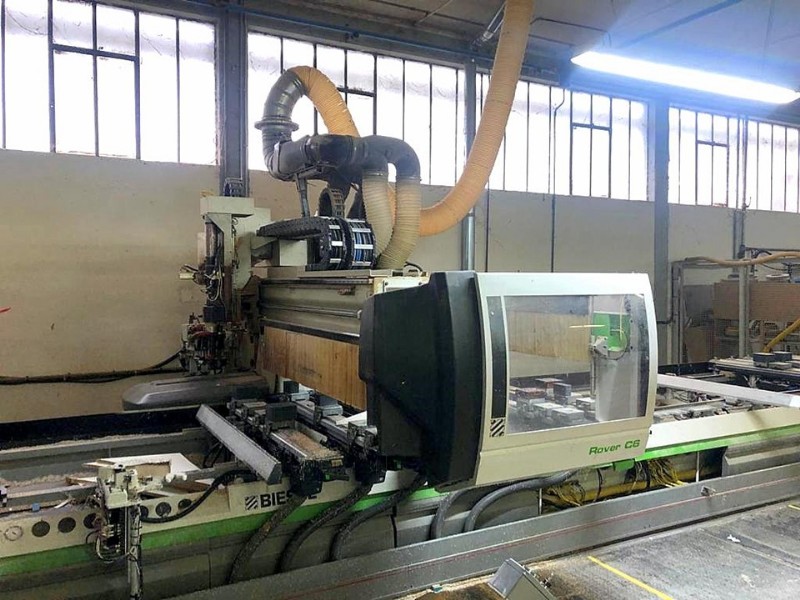

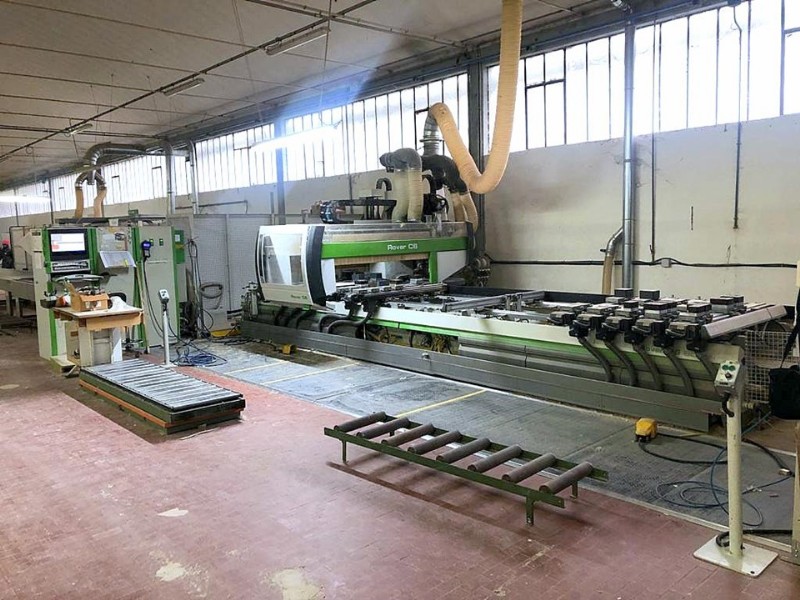

Biesse Rover C Edge 6.65 CNC

Description

CONTROL SYSTEM
• Numerical control PC-based
• Software BiesseWorks Advanced
TECHNICAL FEATURES
• Useful working area (x-y-z): 6.200 x 1.535 x 225 mm
• Useful working area for edgebanding (x – y): 5.330 x 1.575 mm
PANEL SUPPORT AREA
• Nr. 4 Independent working areas in “X” and multiarea 10 pods and 40 rails
• Nr. 10 Working tables EPS for panel support with automatic positioning – nr. 40 rails
• Nr. 8 Lifting bars with pneumatic system
• Nr. 1 Vacuum pump 250 m³/h
DRILLING/SAWING UNIT
• Nr. 1 Boring head BH 42 L with quick change system
• Nr. 1 Multifunction unit with aggregate for blade diameter 180 mm, rotatable by 360° continuously by NC
GROOVING/MILLING UNIT
• Nr. 1 Electrospindle 13,5 kW (18,4 HP) clamping system HSK F63 air cooled complete with working unit device 360° with gears
• Nr. 1 Electrospindle 13,5 kW (18,4 HP) clamping system HSK F63 air cooled complete with working unit device 360° with gears
• Nr. 1 Chain tool changer with nr. 22 positions – Center to center distance 180 mm
• Pick-Up toll changer with nr. 1 position
EDGEBANDING UNIT
• Edgebanding unit complete of:
– premelter and glue bowl for EVA
– edge magazine in rolls with nr. 4 positions
– combined blower/edge heater unit
– nr. 2 rough tirmming units
– combined edge scraping/glue scraping unit
PREDISPOSITIONS AND ACCESSORIES
• Automatic lubrication system
• System to out-put the wood wastes (chips)
NORM AND OPTIONAL FOR THE SECURITY
• Copy of original EC Declaration of Conformity
• Frontal electronic security mats
• Lateral security fences
