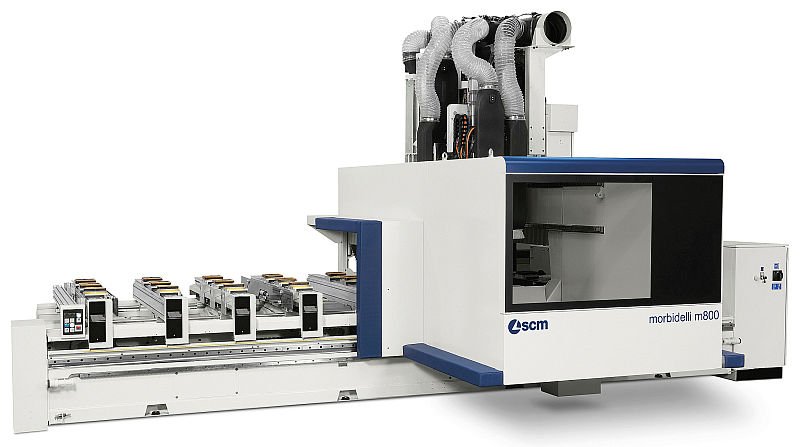

SCM morbidelli m600/800 CNC Machine

Modular machining centres designed and developed to satisfy the requirements of furniture manufacturers.

Performance without comparison with the mobile gantry structure and easy programming of all production process by means of Maestro CNC software.

SKU: morbidelli m600/800 Categories: , , Tags: ,

Description

Technical data

    m600 m800
Working areas
X-Y axes dimensions mm 3680×1680
3680×1905
5020×1680
5020×1905
6360×1680
6360×1905
3680×1680
3680×1905
5020×1680
5020×1905
6360×1680
6360×1905
Axes
Vectorial speed X-Y axes m/min 127 127
Z axis speed m/min 30 30
Z axis panel passage mm 250 350
Routing unit
Motor power (max.) kW (hp) 17 (23) 17 (23)
Rotation speed (max.) rpm 24000 24000
Available tools on tool changer (max.) places 54 54
Drilling unit
Independent vertical spindles (max.) n. 38 38
Independent horizontal spindles (max.) n. 12 12
Rotation speed (max.) rpm 8000 8000
Integrated blade in X, diameter mm 125 125
0-90° integrated blade, diameter mm 160 160



Additional information

UK / Ireland stock
