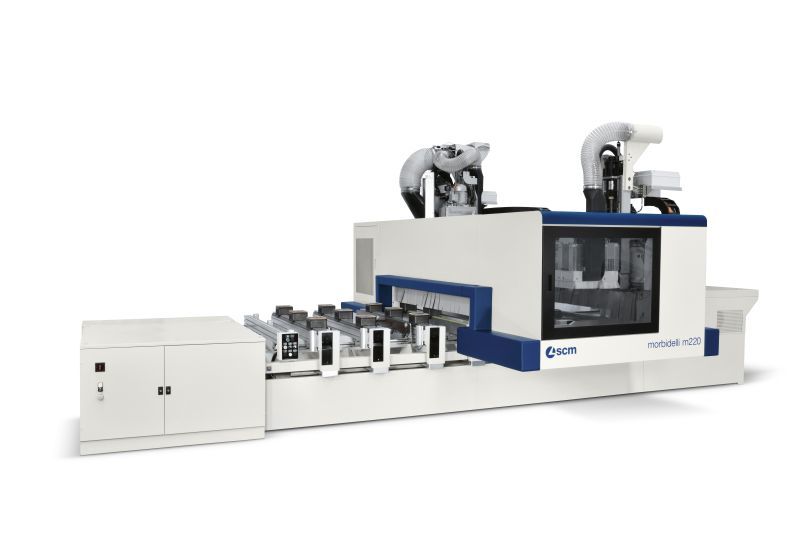

SCM morbidelli m220 CNC Machine

The machining centre with double drilling head reduces drilling cycles by 70%, compared to other machining centres on the market.

Just few clicks to design and manufacture pieces of any shape, the machine is run by Maestro cnc software which has specific modules for every production cycle.

SKU: morbidelli m220 Category: Tags: ,

Description

Technical data

Working areas
X-Y axes dimensionsmm3110×1620
3710×1620
5510×1620

Axes
Vectorial speed m/min56 (Pro-Space)
78 (Pro-Speed)
Z axis panel passagemm180
Routing unit
Motor power (max.)kW (hp)15 (20,5)
Rotation speed rpm24000
Available tools on tool changer (max.)places60
Drilling unit
Independent vertical spindles (max.)n.34
Independent horizontal spindles (max.) n.22
Rotation speed (max.)rpm8000
Integrated blades in Xn.2
0-90° blade unit
Motor power (max.)kW (hp)2,2 (3)
Rotation speed (max.)rpm6000
Auxiliary routing unit
Motor power (max.)kW (hp)4,5 (6)
Rotation speed (max.)rpm18000
