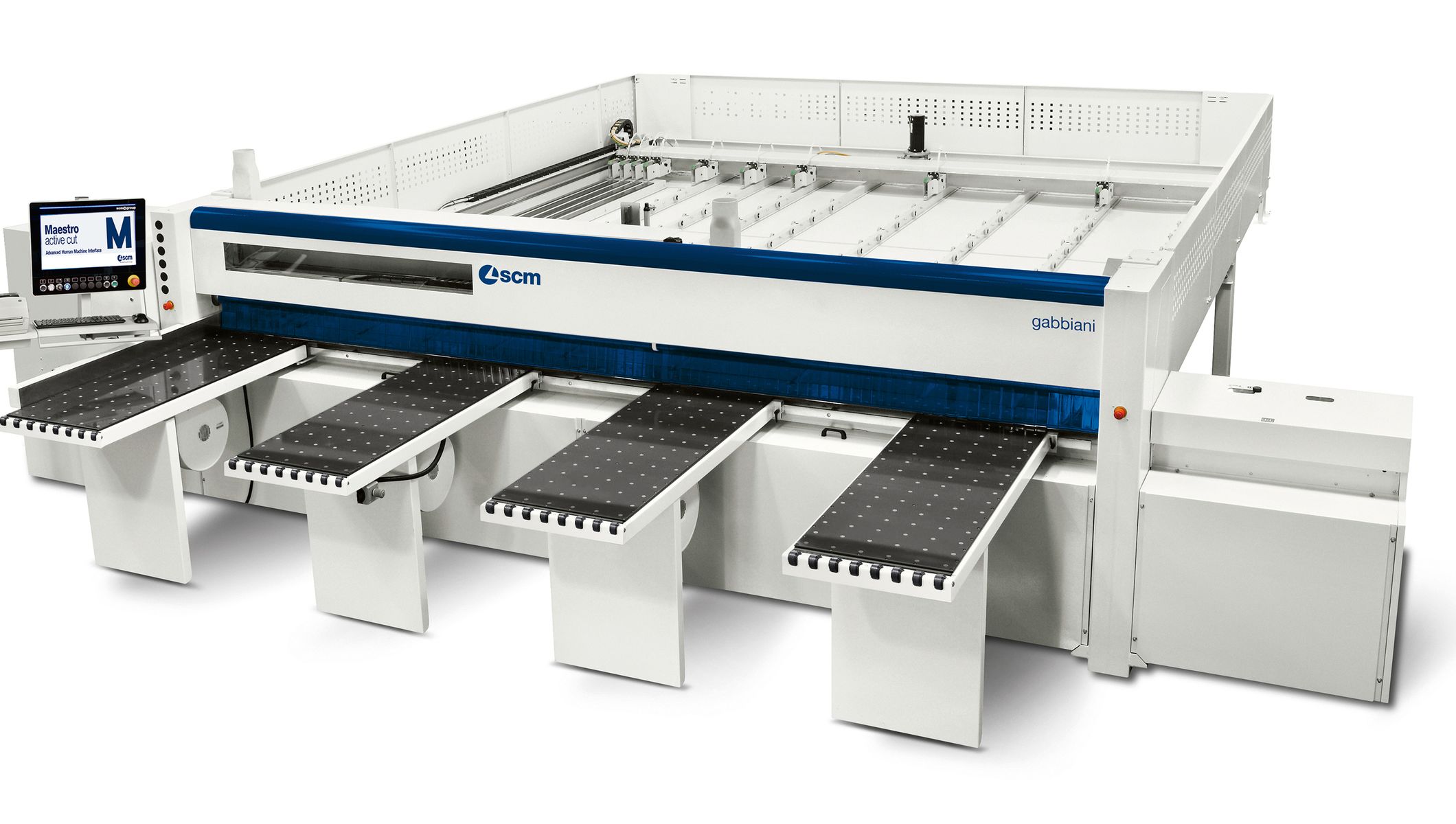

SCM gabbiani s Beam Saw

The SCM beam saws are the products of continuing in-house development complementing the sum of the finest skills and know-how acquired when Gabbiani joined the SCM Group. This brand, with its rich tradition, is known today as a model name.

SKU: gabbiani s Categories: , , Tags: ,

Description

Technical data

    gabbiani s 95 gabbiani s 115
Cutting length mm 3200/3800/4500
Blade projection mm 95 115
Saw carriage variable speed (option) m/min 6 – 60 (0 – 135 / 0 – 150)
Pusher variable speed (option) m/min 0 – 60 (0 -70 / 0 – 120)
Main blade motor S6 – 40% (option) kW 7 (9 – 11 – 15) 9 (11 -15 – 18)
Scoring unit blade motor 50 Hz kW 1,8
Main blade / scorer speed 50 Hz r.p.m. 3900/6300
Main blade / scorer blade diameter mm 380/160 400/160
Number of clamps std 5 6
