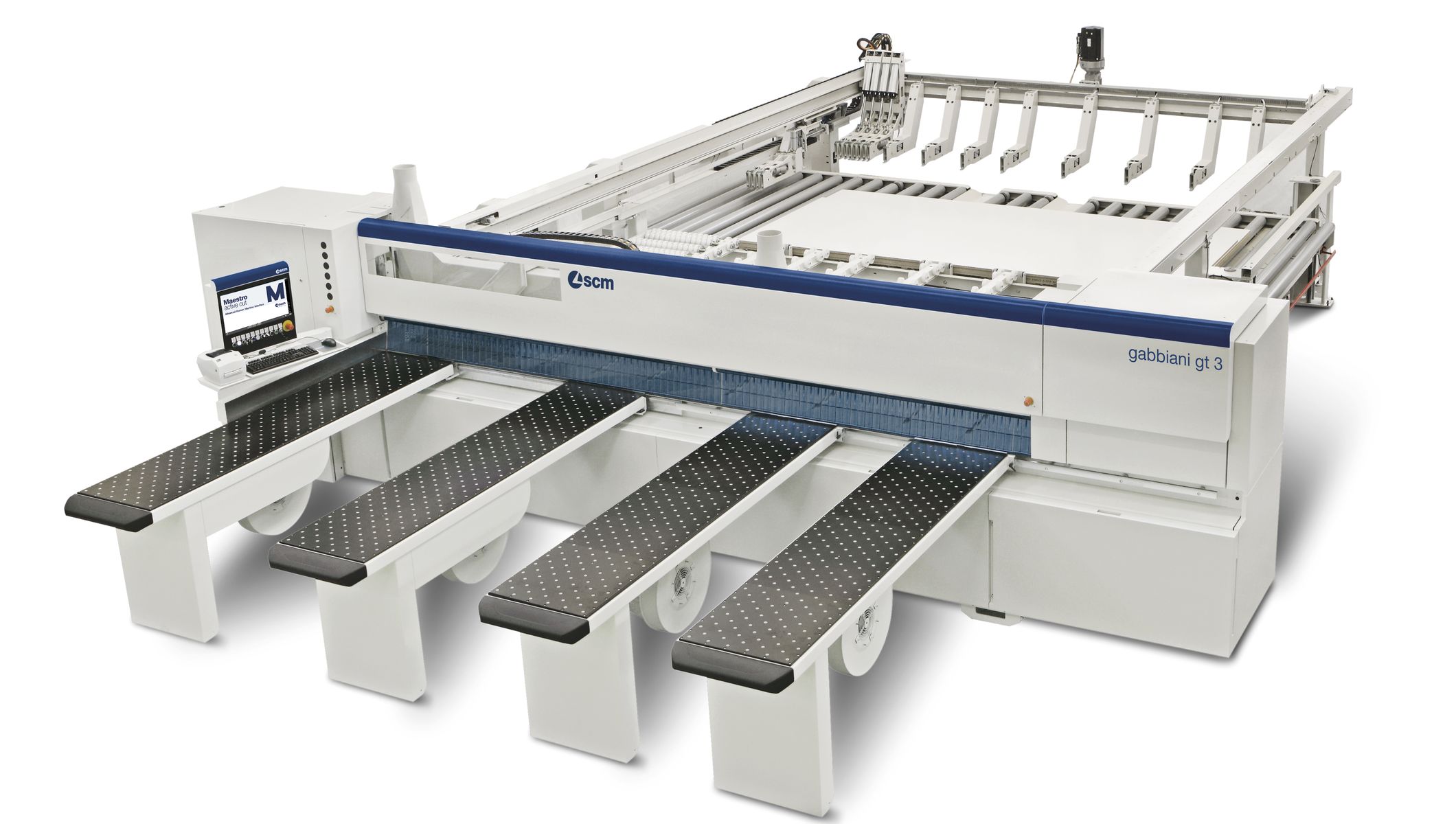

SCM gabbiani gt 3 Beam Saw

The SCM beam saws are the products of continuing in-house development complementing the sum of the finest skills and know-how acquired when Gabbiani joined the SCM Group. This brand, with its rich tradition, is known today as a model name.

SKU: gabbiani gt 3 Category: Tags: ,

Description

Technical data

 gabbiani gt 3 130gabbiani gt 3 145gabbiani gt 3 165
Cutting lenghtmm3200/3800/45003200/3800/4500/5600
Blade projectionmm130145165
Max. height of panel stack on lifting table    mm600
Main blade motor power (option)kW15 (18 – 22 – 30 – 37)18,5 (22 – 30 – 37)
Rotating speed – 50 Hzr.p.m.35002950
Saw carriage variable speed (option)m/min0 – 170
Pusher variable speedm/min135
Kit for plastic materials cuttingAvailable
HI-TRONIC deviceAvailableStd.
FLEXCUT devicestd1/D
Number of clampsstd

6 (7 for 4500 and 5600 versions)
(3 with double finger, squaring area)
(3 front aligners for 3200-3800-4500 versions – 4 front aligners
for 5600 version are included)
