Description
Technical data

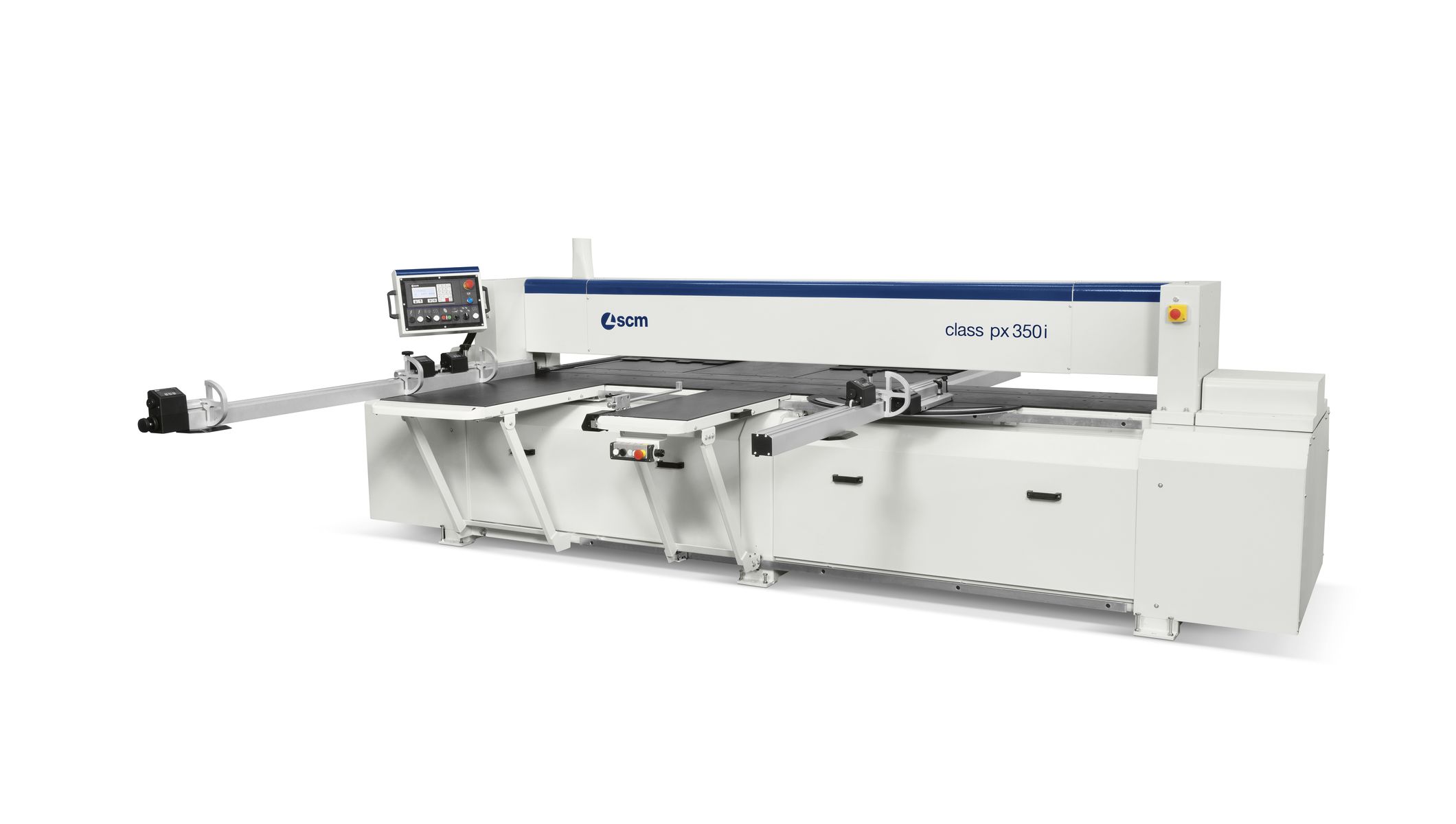

| class px 350i | ||||
| maximum squaring stroke | mm | 2600 | 3200 | 3800 |
| blade tilting | mm | 0÷46° | ||
| maximum saw blade diameter (cutting) | mm | 350 | ||
| maximum saw blade diameter (engraving + cutting) | mm | 300 | ||
| max. saw blade projection (D350) from table at 90°/45° | mm | 105/72 | ||
| max. saw blade projection (D300) from table at 90°/45° | mm | 80/50 | ||
| blade rotation speed | giri/min | 4000 | ||
| cutting width on rear fence | mm | 1300 | ||
| Other technical features | ||||
| three-phase motor | 5,5 kW 50 Hz (5,5 kW 60 Hz) |
|||
| exhaust hoods diameter | mm | 120 (1) – 100 (2) | ||
| overall dimensions | mm | L 3859 L 3196 H 1368 |
L 4459 L 3196 H 1368 |
L 5059 L 3196 H 1368 |
