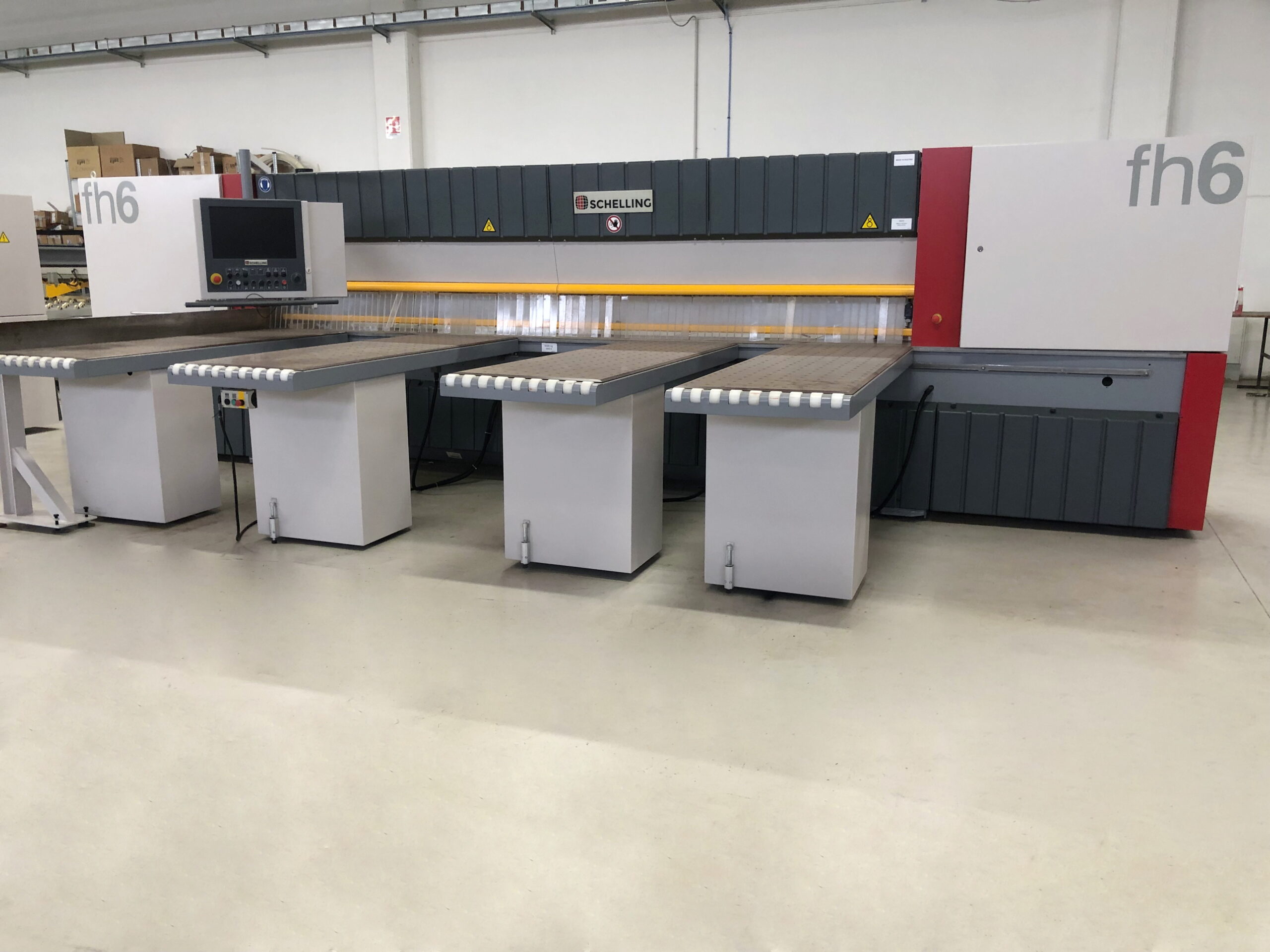

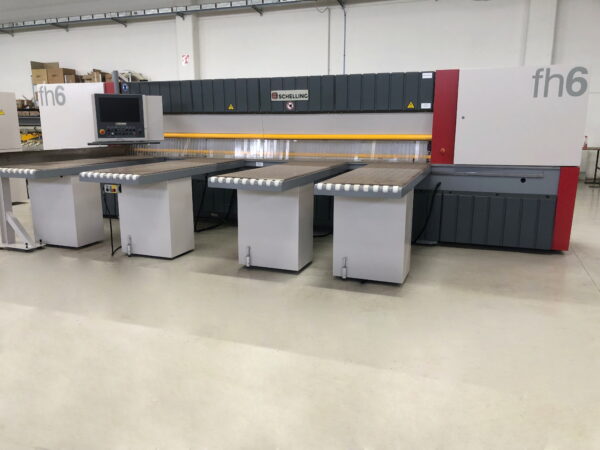

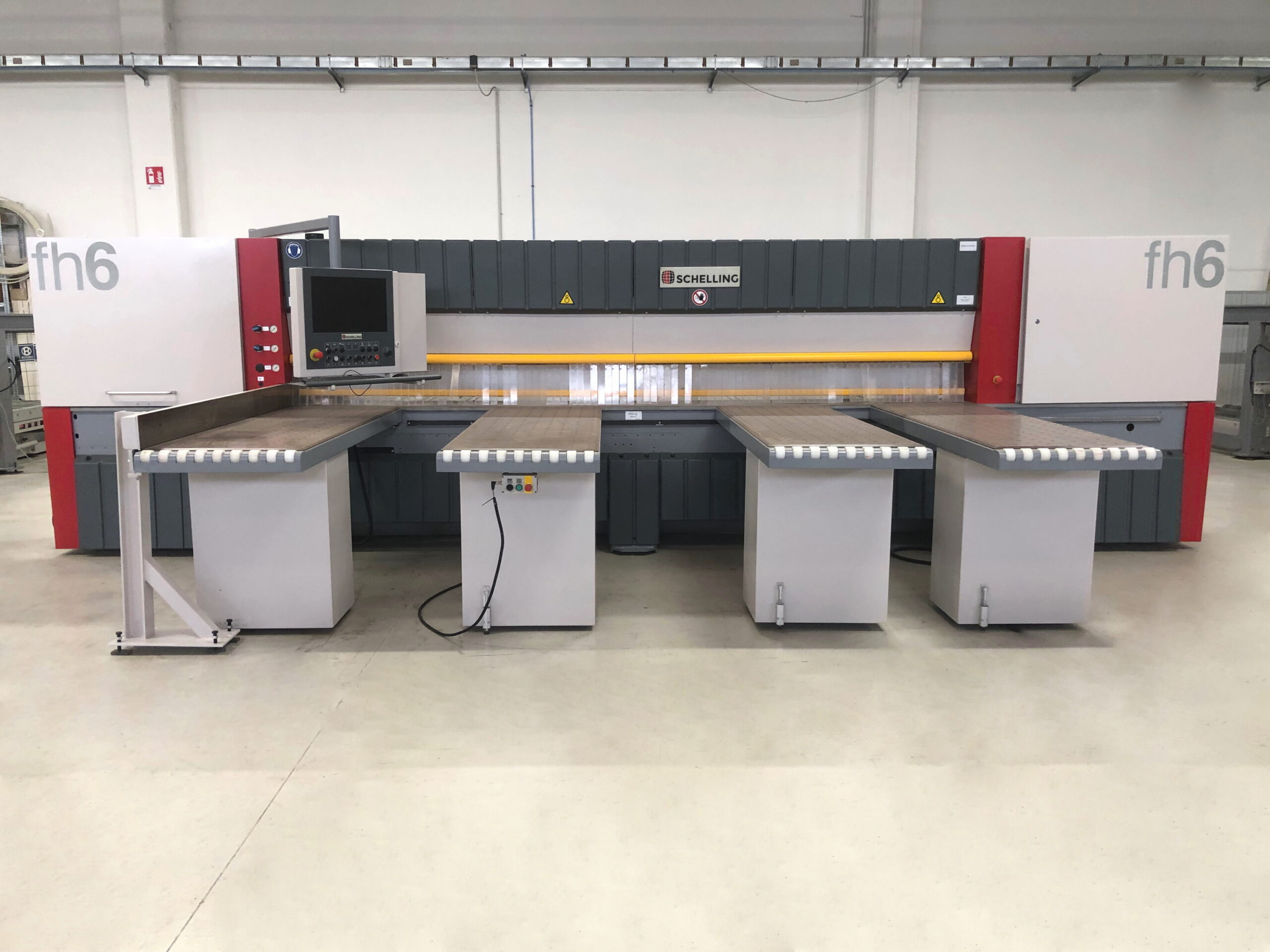

Horizontal Panel Beam Saw – With rear lifting table
Numerical Control MCS Evolution
Software

Outside Rollers table for pre-loading (mm 5400 x 2200 ca.) OPTIONAL
Lifting table (mm) 4420 x 2200

No. 2 Rear pushers (one with clamps / grippers)
No. 9 clamps

Max. cutting width (mm) 4300
Useful stroke of the pushing system (mm) 4300

Max blade projection (mm) 135
Max clamps opening (mm) 125

Scoring Unit (max saw diameter / power) 200 mm / Kw 1,9
Main Sawing Unit (max saw diameter / power) 480 mm – Kw 27

Adjustable speed of the saw carriage (m/min) 6 – 150
Front supporting tables with Air blowing system (N.) 4
Total power (Kw) 36 (ca.)
