Description

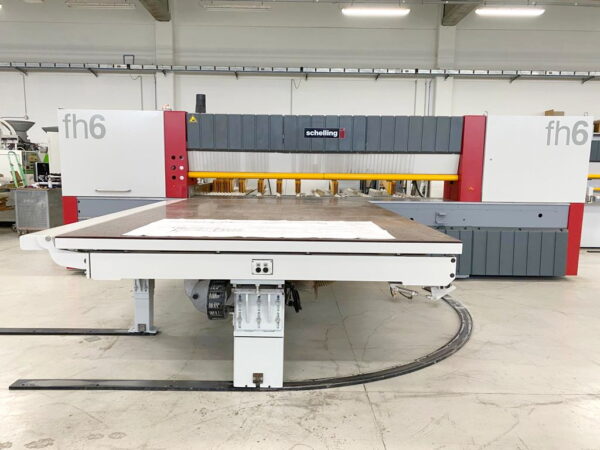

Horizontal Panel Beam Saw – With rear lifting table
Numerical Control MCS Evolution 2.0
Software Siemens WinAC RTX
No. 1 Outside Rollers table for pre-loading
Lifting scissor table (mm) 3100 x 2200
No. 2 Rear pushers (one with clamps / grippers)
No. 9 clamps / grippers (Grip-Push)
Max. cutting width (mm) 3200
Max blade projection (mm) 135
Max clamps opening (mm) 125
Scoring Unit (max saw diameter / power) mm 200
Main Sawing Unit (max saw diameter / power) mm 460 / kW 21
Adjustable speed of the saw carriage (m/min) 6 – 150 (ca.)

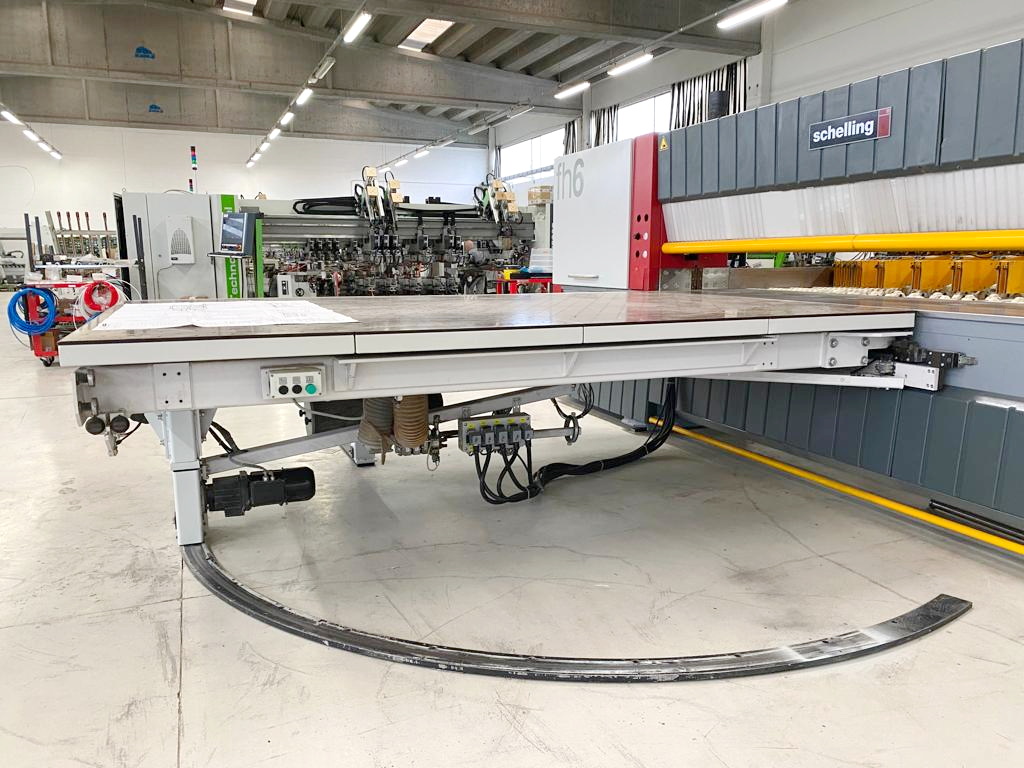

Front Turning table (rotating at 90°) with air blowing system (mm 2200 x 3100)
Total power kvA 35
OPTION: Software Optimization (Network Version) HPO/F N1
