CNC-Gantry (portal) Flexible Automatic through-feed Boring and Routering Machine (CE mark)
– Perimetral safety panelling as integral protection of the machine
– Numerical Control and Software on Windows basis
– Min/Max workpieces (panels) width and thickness: mm 250 / 3000 (mm 12 / 50)
– Max workpieces (panels) lenght-depth (Y axe): mm 1350
– Can simultaneously process 2 panels together (Max workpieces lenght-depth: mm 650 each)

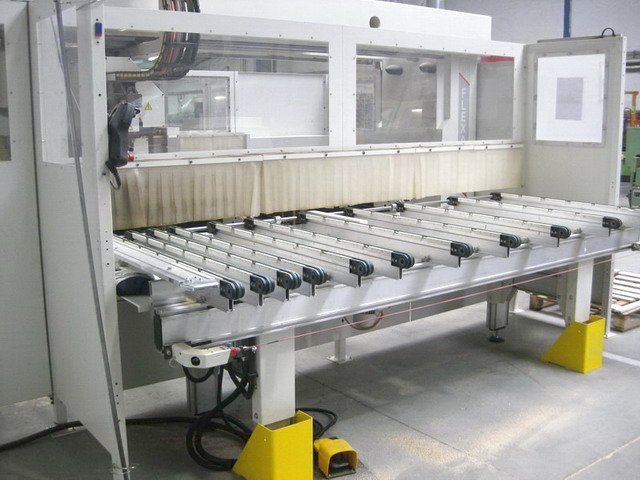

– N. 1 in-feed table + N. 1 out-feed table, both with 11 motorized belts each
– N. 3 motorized belts for through-feeding the panels, whom 2 ajustable on X axe
– N. 6 vertical bottom supports, ajustable on X axe
– N. 40 (20 left side and 20 right side) pressing units to clamp the panel in the working process
– System to evacuate the wastes (chips) from the working process
Working System with:
– No. 2 horizontal units (1 left & 1 right) each one with 1 boring head of 21 spindles (adjustment
by CN of the thickness/height of working height), with also movable on Y axe
– No. 2 top vertical units (1 boring unit “C” and 1 boring unit “D”) each one with:
* 2 boring heads with 2 horizontal spindles on Y axe (total 4)
* 1 boring head T35M with 21 vertical spindles (on Y axe) + 14 on X axe (tot. 35 spindes)
* 1 boring head movable and independent (for fitting) with 14 vertical spindles on X axe
* 1 vertical electro-spindle HSK 63 (KW 6,6 – HP 9)
On this machine there are: totally
– N. 42 horizontal spindles (21 left + 21 right) for horizontal boring on X axe
– N. 8 horizontal spindles for horizontal boring on Y axe
– N. 70 vertical spindles (42 on Y axe + 28 on X axe)
– N. 28 vertical spindles on X axe (on the 2 boring heads for fitting)
– N. 2 vertical electro.splindle HSK 63 (Kw 6,6 – HP 9)
