Shop

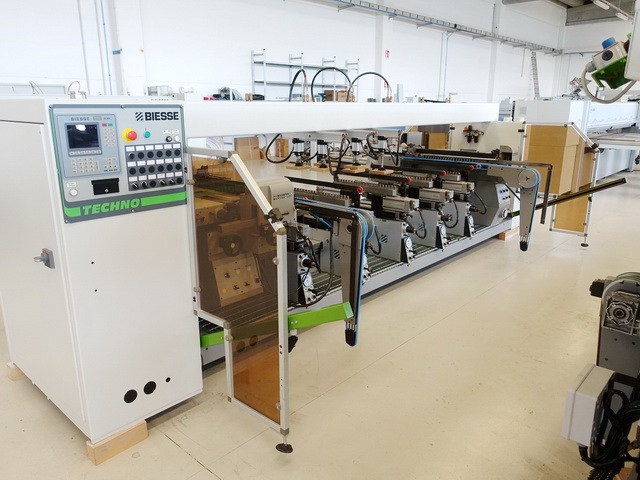

BIESSE Techno KF

Code:
U06047

Type:
AUTOMATIC BORING MACHINE

Brand:
BIESSE

Model:
Techno KF

Description

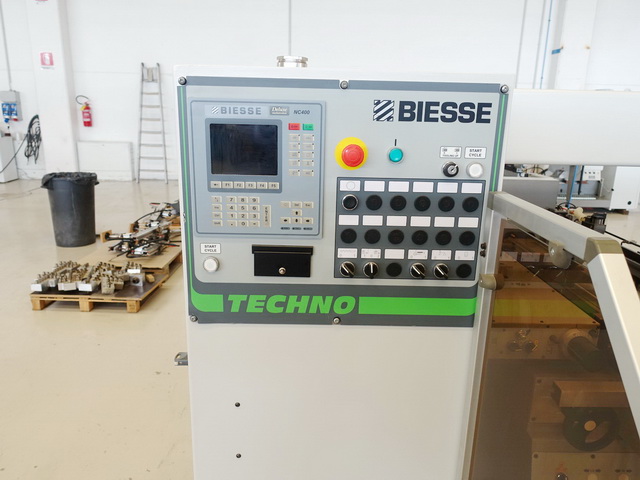

Numerical Control Type NC 400, Software Biesse

No. 2 Through-feed motorized conveyoring belts
Feeding speed (m/min) 35 – 75

No. 2 Horizontal units/supports
Drilling heads for each horizontal unit (No. 2 x Kw 1,1)
Splindles for each horizontal drilling head (No. 10)

Max. working width (mm) 3200
Min. working width (mm) 205 (ca.)

No. 5 Bottom vertical units/supports
Drilling heads/blocks for each bottom vertical unit (No. 2 x Kw 1,5)

No. 2 Vertical top pressure clamps
No. 2 Motorized endless screws to evacuate wastes/chips
Total installed power (Kw) 26,3

The CNC controls the movement (X axe) of the mobile horizontal unit
The CNC controls the movement (Y axe) of the stops
The CNC controls the movement (X axe) of the conveyor belts
