Description
| Parameter | Typical Value / Range |
|---|
| Workpiece thickness | ~ 8–60 mm |
| Edge material (coils) |
| Solid edge / thick lip options |
| Minimum workpiece width | ~ 60 mm (depending on thickness) |
| Feed / conveyor speed | ~ 16–20 m/min (some spec’s list up to ~25 m/min) |
| In-feed fence | Auto-adjustable/manual fence with digital readout |
| Pre-milling (jointing) | Yes — vertical pre-milling unit(s) for trimming panel ends |
| Edge pre-heating / substrate heating | Yes — workpiece end heating before glue |

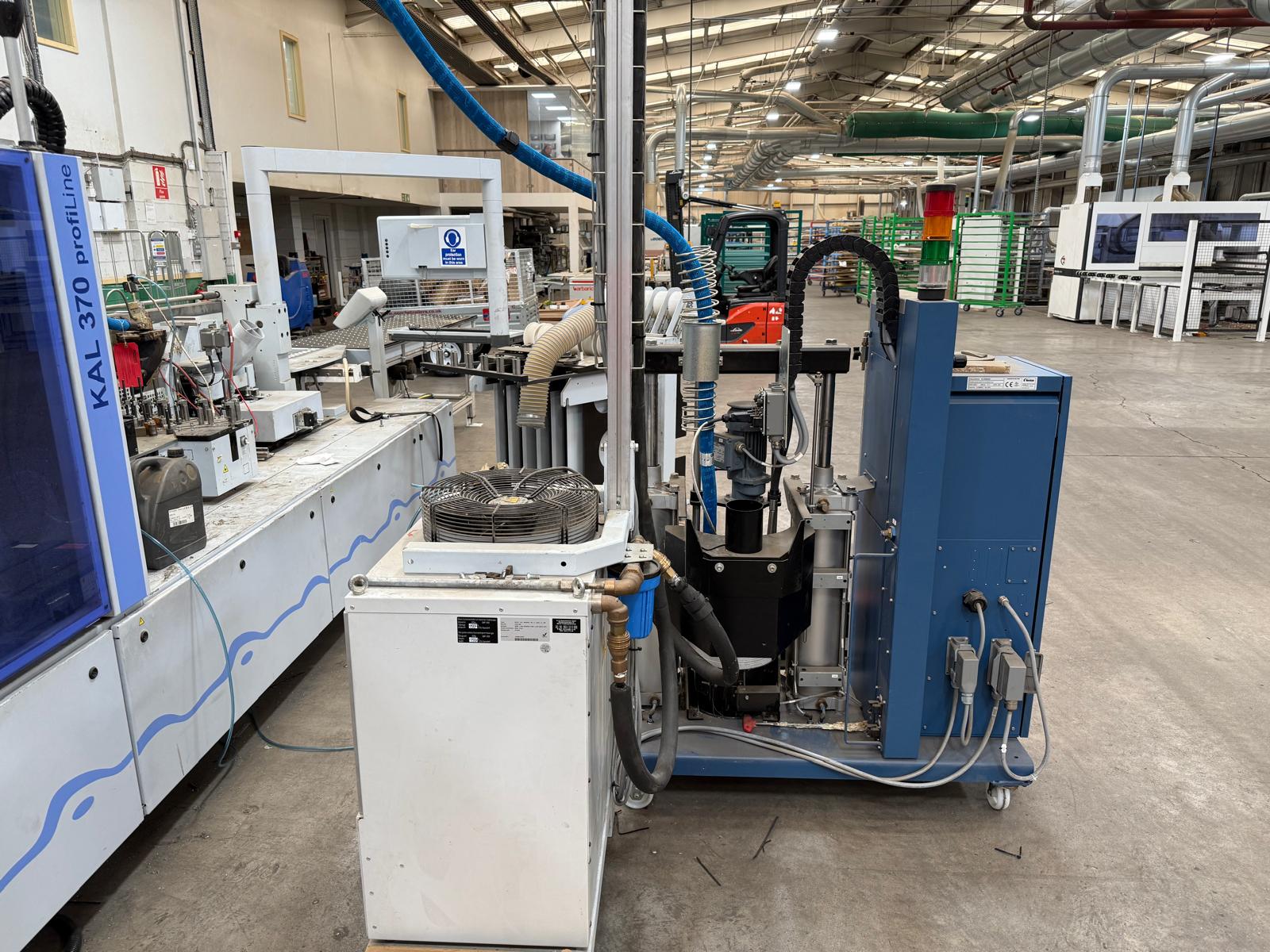

| Glue system | EVA hot-melt Quickmelt, some versions with PUR glue, Robatech pre-melter |
| Edge magazine | Multi-coil magazine (2 or more coils) |
| Trimming and finishing units | Snipping / end trimming, rough/fine trimming, profile trimming, scraper, glue-joint scraper, buffing |
| Control system | powerControl PC23 or PowerTouch / PowerControl interface |
