Description
-

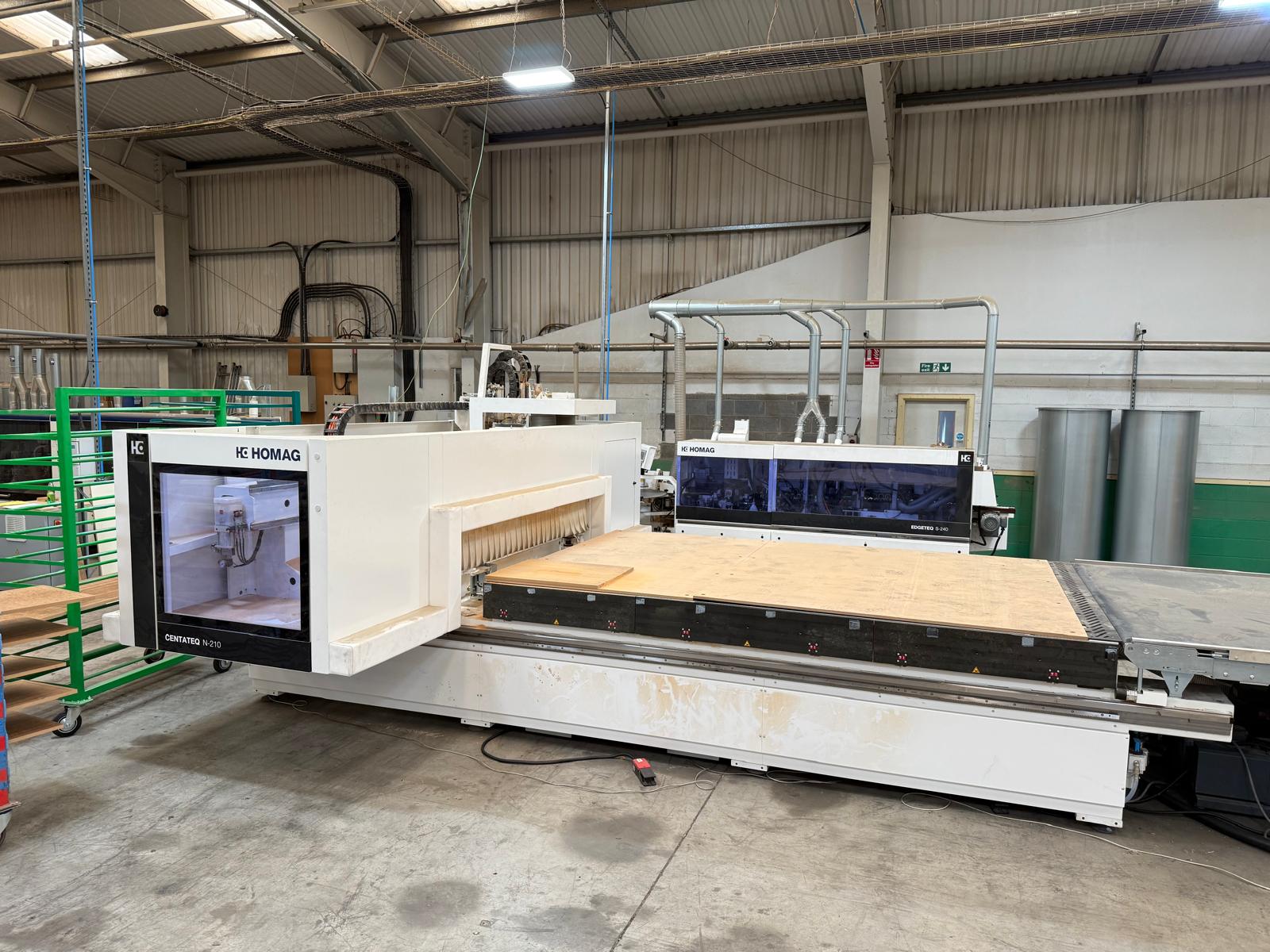

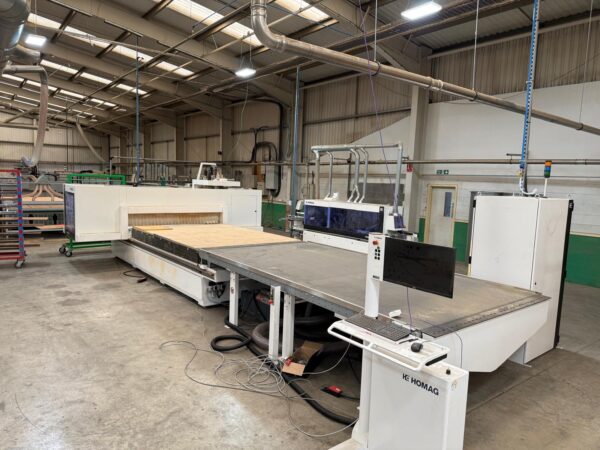

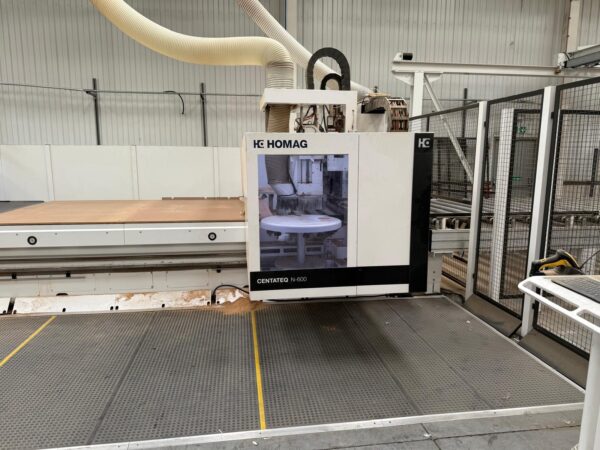

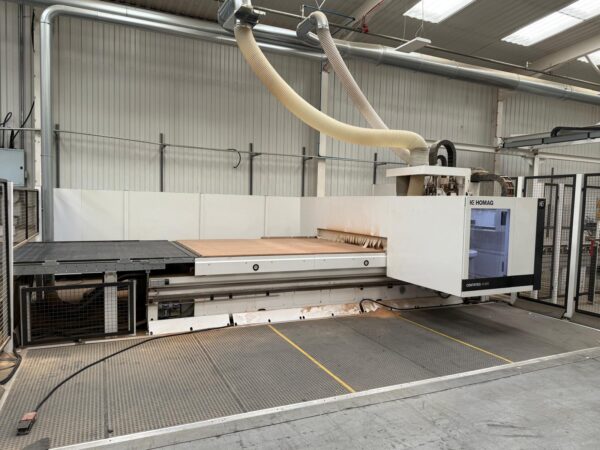

Gantry design CNC nesting machine allowing 3-, 4- or 5-axis processing.
-

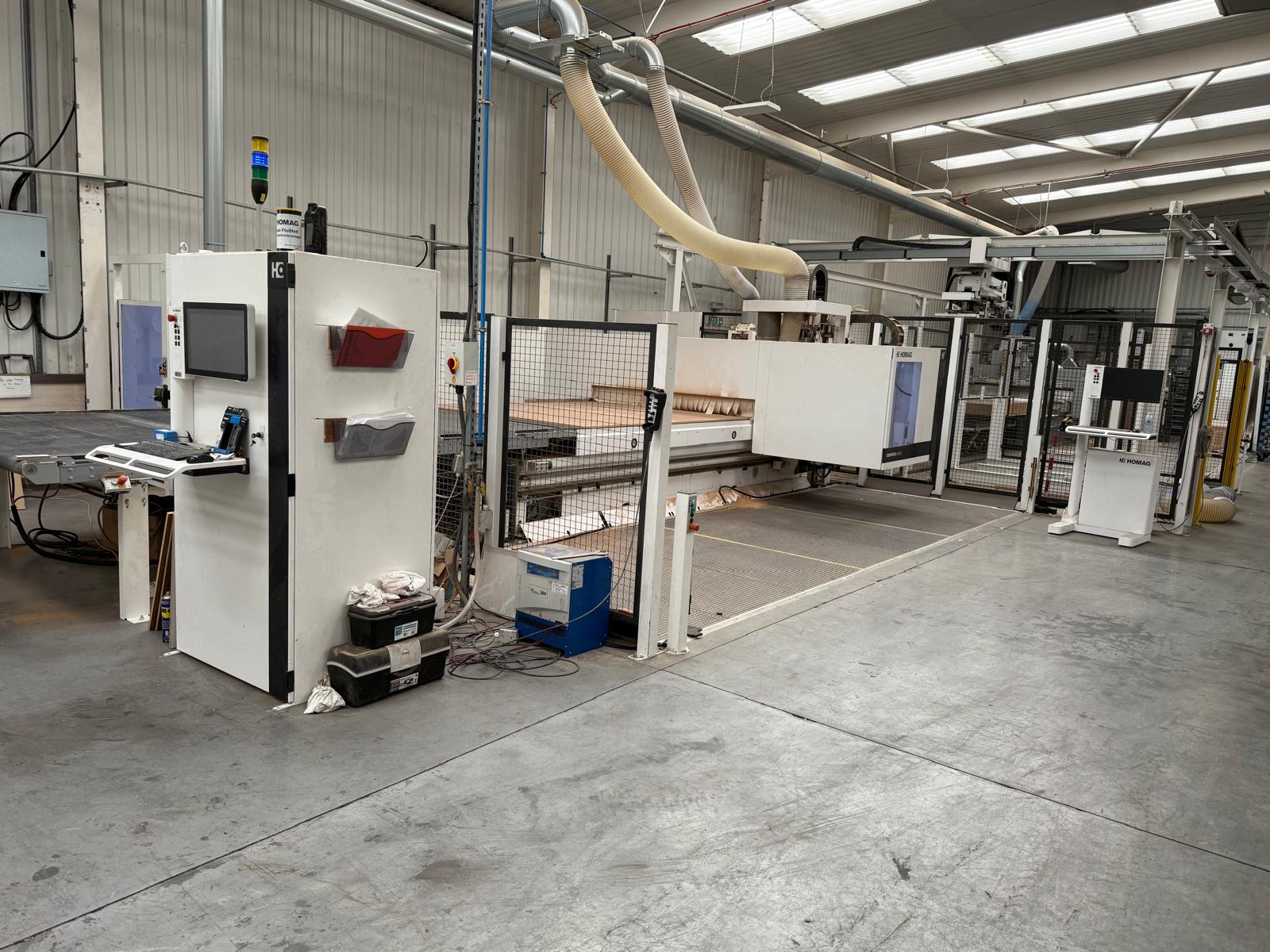

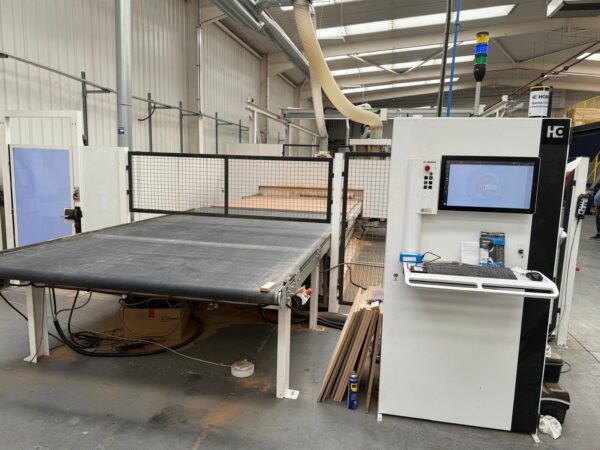

Multiple automation / handling options (material feeding, unloading, robot destacking etc.).
-
Optimizing / software tools: intelliDivide, CutRite, cabinetCreator for nesting, layout, parts labelling / identification.
Typical Technical Specs
These depend on the size variant/config, but here are representative numbers:
| Parameter | Value / Range |
|---|---|
| Working field X (length) | ~ 3,100 mm to ~ 4,300 mm depending on model. |
| Working field Y (width) | ~ 1,550 mm to ~ 2,250 mm |
| Working field Z (height), without automatic push-off / off-loading | ~ 210 mm |
| Z height with automatic push-off | ~ 60 mm (for push-off of finished parts) |
| Vector speed (X/Y) | ~ 130 m/min |

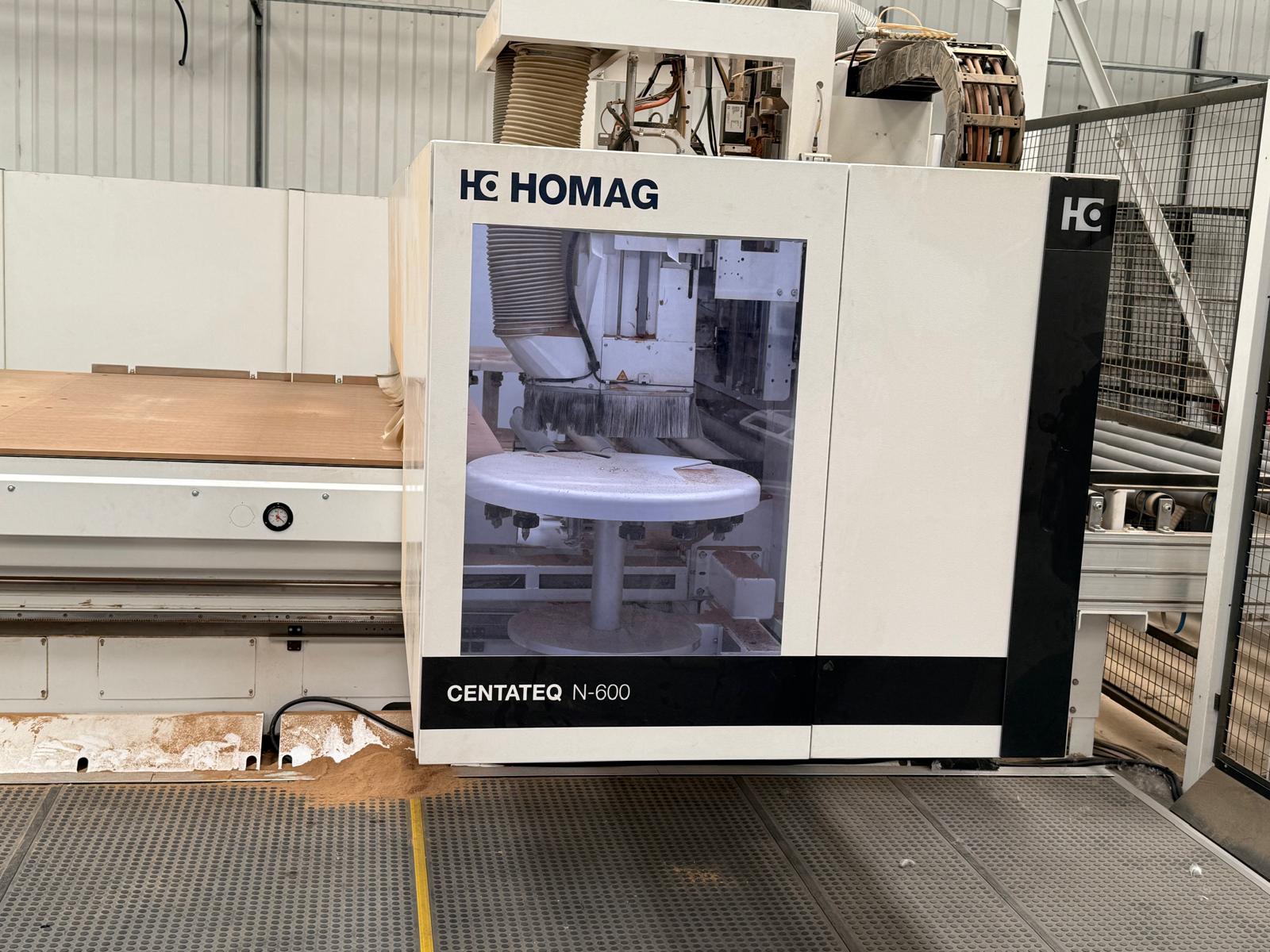

| Tool changer | 14-fold in X direction standard; options for more. |
| Power of main spindle(s) | ~ 10 kW (liquid cooled) standard; options up to ~ 12-13.2 kW. |
| Vacuum table / segmentation | “MATRIX Pro Plus” vacuum table with segmented zones to activate only what’s needed. |
| Drilling / insertion options | Multi-spindle drilling heads (vertical, horizontal), grooving saw, insertion / connector setting units. |
