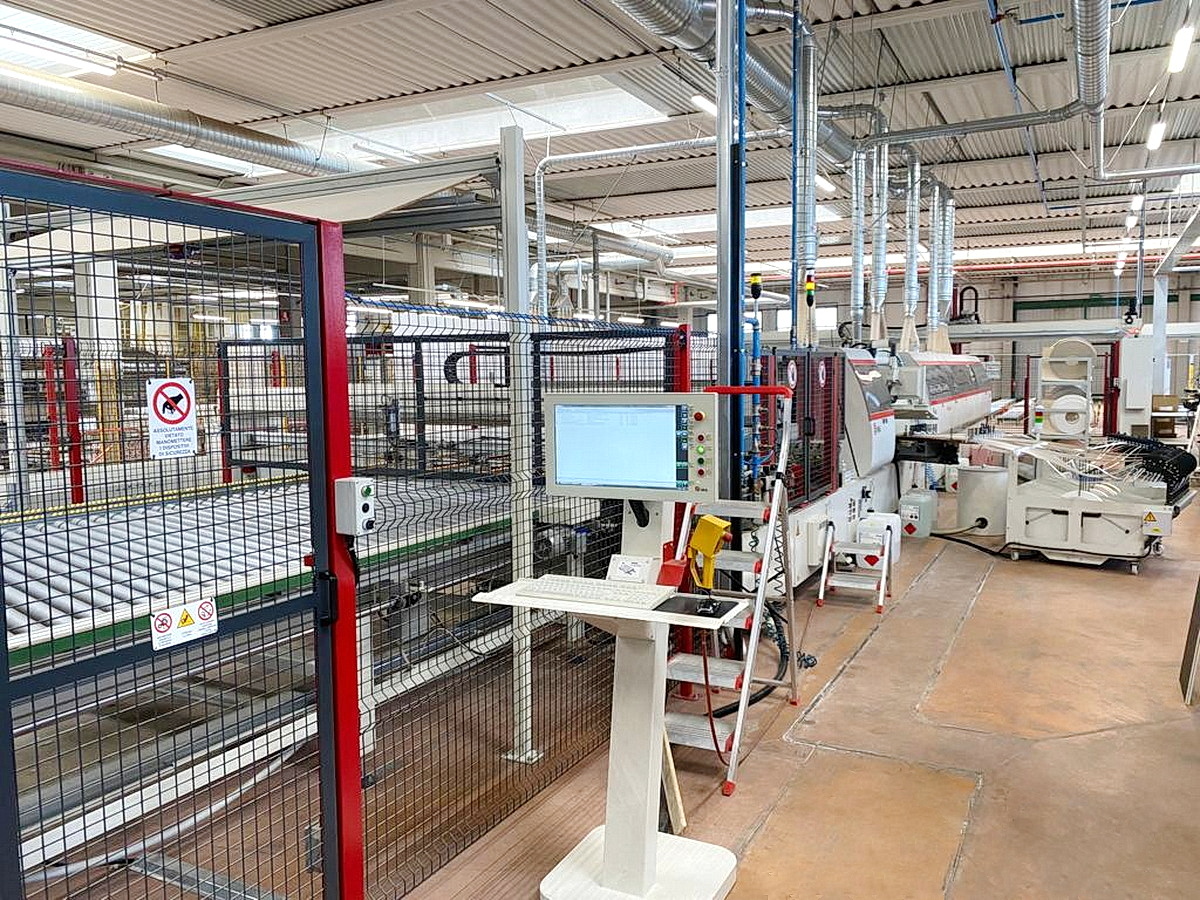

FLEXIBLE SYSTEM OF SINGLE-SIDE SIZING-EDGEBANDING (BATCH SIZE ONE)
Composed of the following machines:

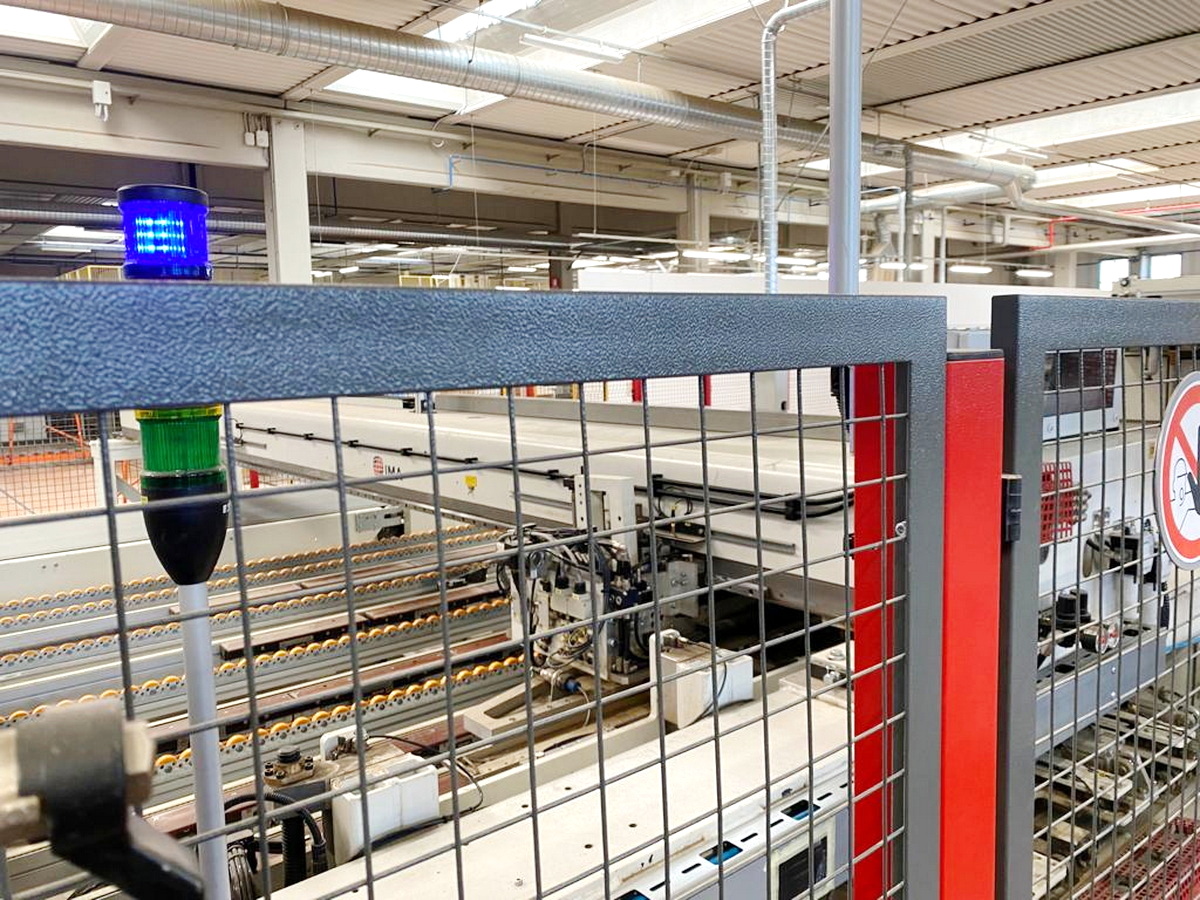

M.01) PANELS HANDLING and RETURN SYSTEM “SIRIO” BATCH SIZE ONE

M.02) SINGLE-SIDE RIGHT-HAND SIZE-EDGE BANDER “IMA” Novimat /I/R75/690/R3
Panels thickness (min/max) mm 8 / 60 – Working width (min/max) mm 200 / 1300
Edges (tape) thickness in rolls (min/max) mm 0,3 / 3
Numerical Control / Software ICOS Open (Batch Size One)
Adjustable feeding speed (m/min ) 6 – 30
Panels in-feed system A1 / 15
N° 2 Pre-milling Unit (vertical joint trimmers) adjustable by N.C. 08.378 (4 motors x Kw 4,5)
Glueing Unit (Hot Melt + Quick Melt Unit) VTG + 283.205
Edge coils supporting unit (No. 24 reels)
Snipping (end-cutting) unit 08.42 / 30 / B / LS1 (2 x Kw 0,2) 0°-25°
Rough Trimming unit 08.055.0.1680 (1 x Kw 0,85)
Fine Trimming unit (Multi-profile, adjustable by N.C.) 08.0587 HS/LS1 (2 x Kw 1)
Multi-Profile Copying unit by N.C. (fine and contour trimming) KFA x20 (1 x Kw 0,5) 20 m/min
Profile Scraping unit (Multi-profile, adjustable by N.C.) 08.516 HS/LS1
Glue scraping unit 08.521
Buffing unit 08.617-2 (2 x Kw 0,18)
N° 3 Milling grooving unit 08.190 (3 x Kw 4,5) Controlled by N.C. – (90°/180°/270°)

M.03 ) PORTAL BRIDGE (UNLOADING/LOADING) “SIRIO”
