SINGLE-SIDE EDGE BANDER (LEFT-side)

Edges (band in rolls) thickness (Min/Max) mm 0,3 / 3 – in stips / lippings mm max 1
Panels thickness (min/max) mm 14 / 60 (LASER – Max 50)
Numerical Control ICOS Open
Feeding speed (adjustable) m/min 6 – 30
Spraying unit (Anti-sticking liquid)

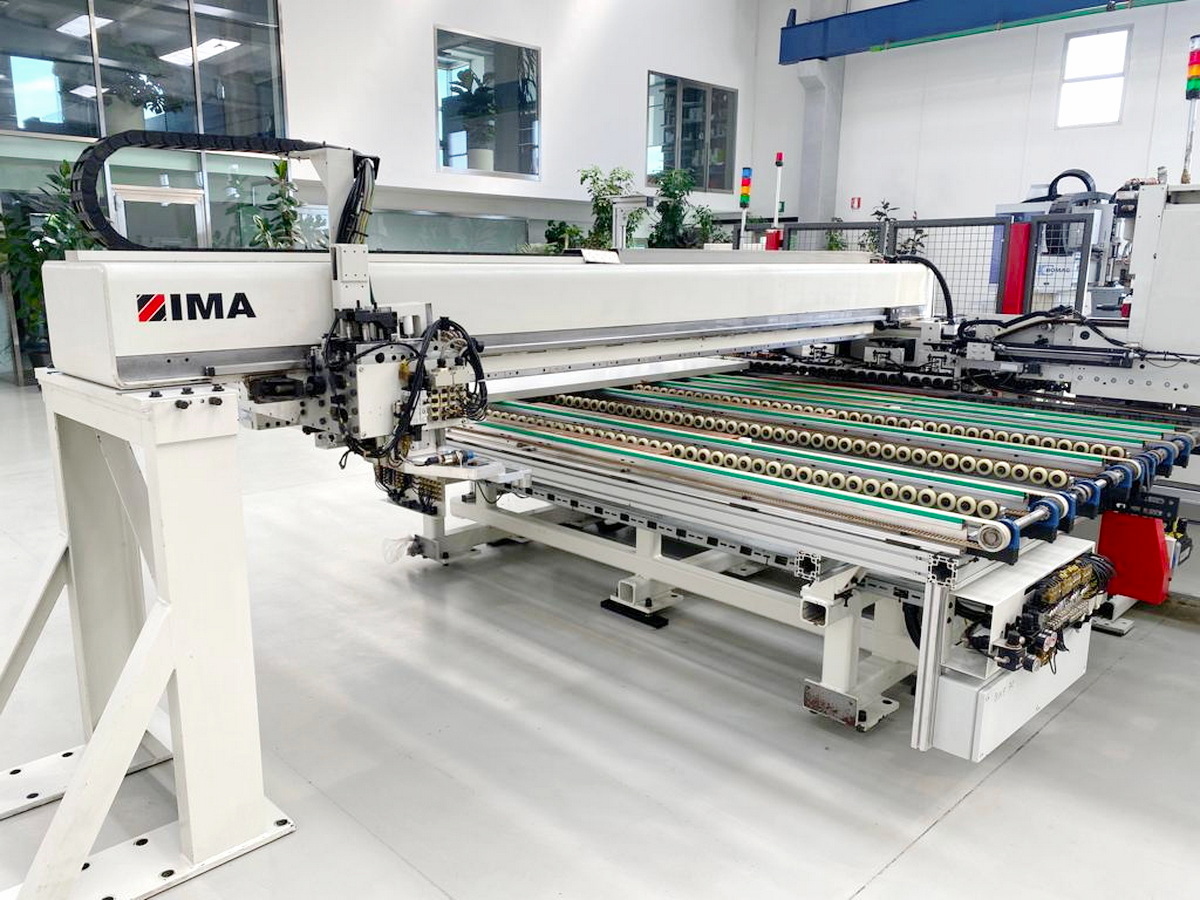

Automatic and accurate Panels in-feed system Mod. A1 / 15
In-feed fence, adjustable by N.C.
Pre-milling Unit (vertical joint trimmers) 08.378 (2 x Kw 4,5) adjustable by N.C.
Glueing Unit (P.U.R. Glue + Quick Melt unit) 283.201 + 283.203
Glueing Unit (Thermofusion with Laser) Laser System LASERLINE
Spraying Unit (for anti-release liquid)
Band Pressure zone + Edge coils supporting unit (No. 36 + 1 reels)
Snipping (end-cutting) 08.42 (Kw 0,2 x 2) work speed up to 30 m/min (0°-25°)
Rough Trimming unit 08.0555 HS/LS1 (Kw 1 x 2)
Fine Trimming unit (Multi-profile, by N.C. adjustment, for 4 profiles) 08.0587 (Kw 0,66 x 1)
Multi-Profile Copying unit by N.C (fine + contour trimming) KFA 30 (Kw 0,5 x 1) max 30 m/min
Profile Scraping unit (Multi-profile, by N.C. adjustment, for 4 profiles) 08.0516
Glue scraping unit 08.521
Spraying Unit (for polishing liquid)
Buffing unit 08.614 (Kw 0.25 x 4)
No. 2 Milling grooving units 08.190 (Kw 4,5 x 2) swivelling 90°/180°/270° (adjustable by CN)
