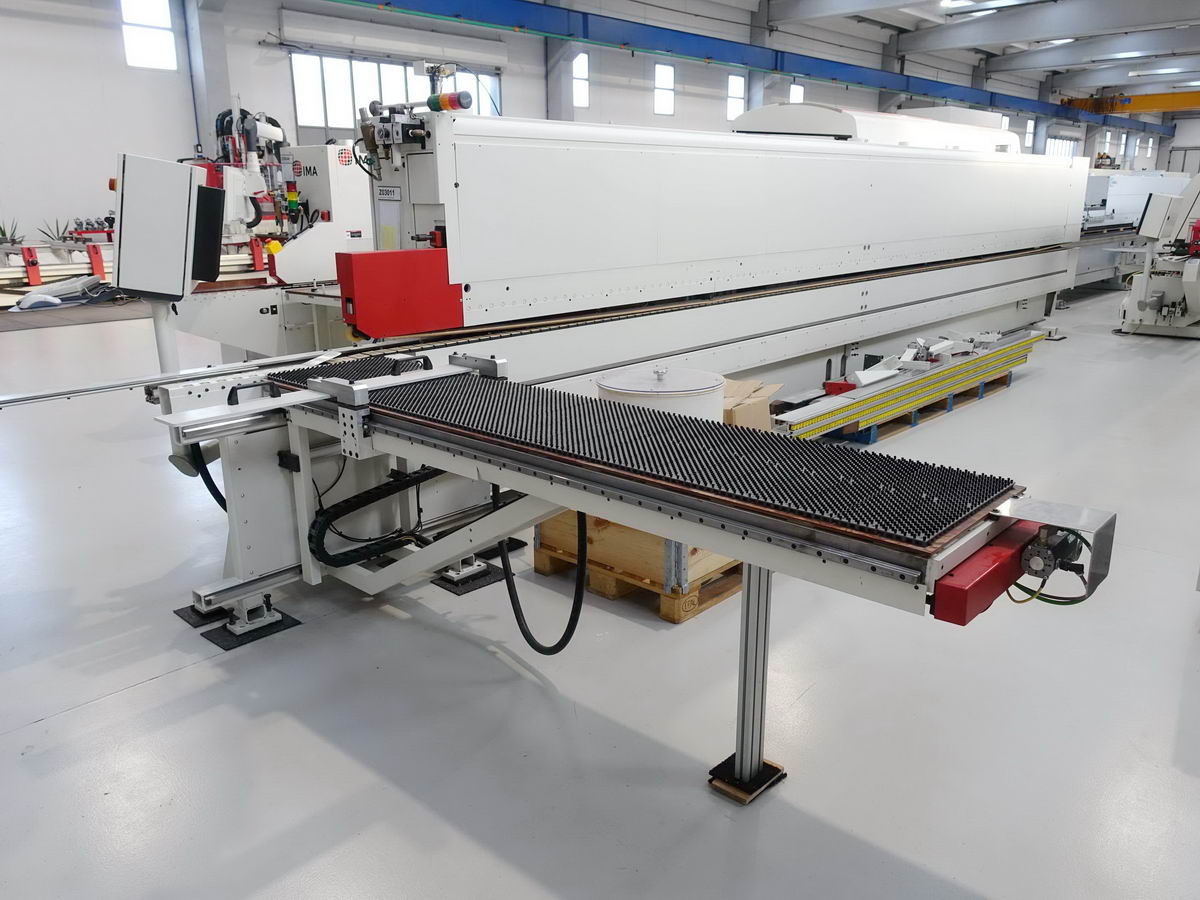

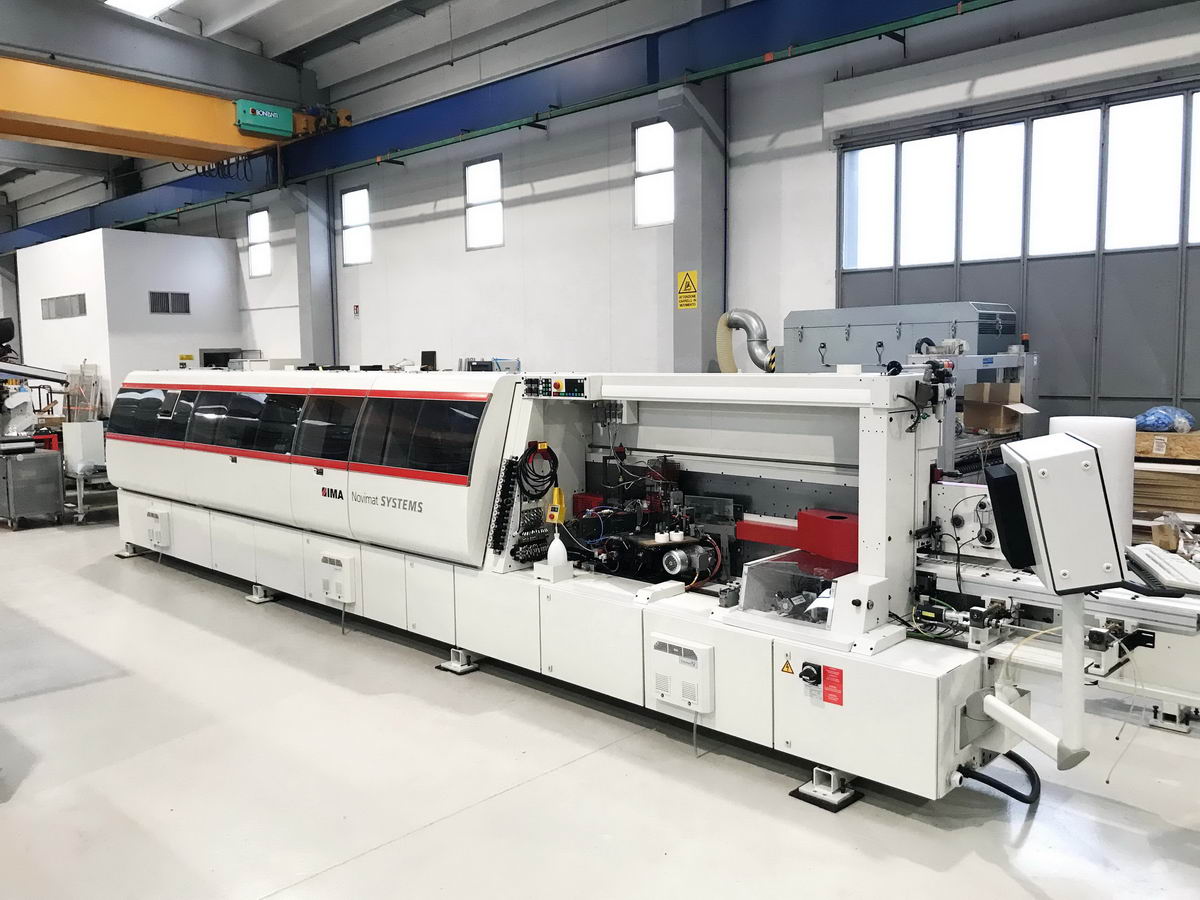

SINGLE-SIDE EDGE BANDER (LEFT-side)
Edges (band in rolls) thickness (Min/Max) mm 0,3 / 3
Edges thickness in strips / lippings (min/max) mm 3,0 – 20 (option)
Panels thickness (min/max) mm 8 / 40
Feeding speed (adjustable) m/min 5 / 25
Numerical Control ICOS OPEN – PC based (Windows Standards)
Top pressure system with rubber belt
Spraying unit (Anti-sticking liquid)
In-feed fence, adjustable by N.C.
Panels in-feed system
Pre-milling Unit (vertical joint trimmers) 08.378 (Kw 4,5 x 2) adjustable by N.C.
Glueing Unit (P.U.R. Glue + Quick Melt system) 04.1569 + 283.203
Spraying Unit (for anti-release liquid)
Band Pressure zone (adjustable by N.C.)
Edge coils supporting unit (No. 2 reels)
Snipping (end-cutting) unit 08.42/30/B (Kw 0,66 x 2) 30 m/min (0°-25°)
Fine Trimming unit 08.055 (Kw 1 x 2) (0°-30°)
Multi Function Unit (Profile contour Trimming unit) 08.348 (Kw 0,66 x 2) 4 profil
Profile edge scraping unit (Multi-profile, by N.C.) 08.516
Glue scraping unit 08.521 (CN)
Spraying Unit (for polishing liquid)
Buffing unit 08.617-4 (Kw 0,18 x 4)
Free space
