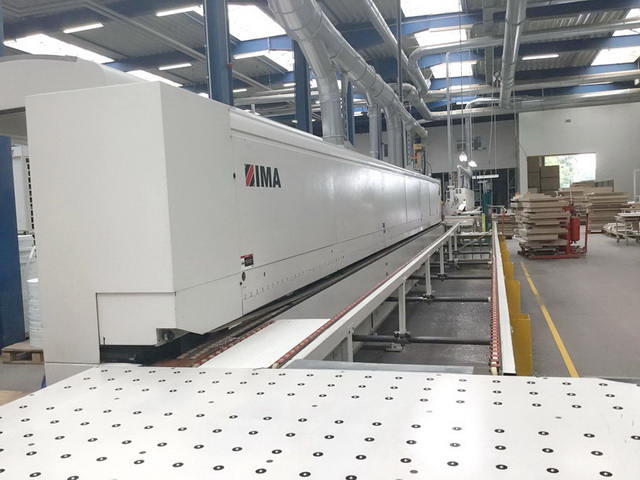

SINGLE-SIDE EDGE BANDER (RIGHT-side)
Edges (band in rolls) thickness (Min/Max) mm 0,3 / 3
Panels thickness (min/max) mm 8 / 60
Numerical Control ICOS Open compact
Feeding speed (adjustable) m/min 6 – 30
Top pressure system with rubber belt – Spraying unit (Anti-sticking liquid)
In-feed fence, adjustable by N.C.
Pre-milling Unit (vertical joint trimmers) 08.378 (Kw 4,5 x 2) adjustable by N.C.
Glueing Unit (Hot Melt Glue + Quick Melt system) 04.1570 + 283.205
Band Pressure zone (adjustable by N.C.)

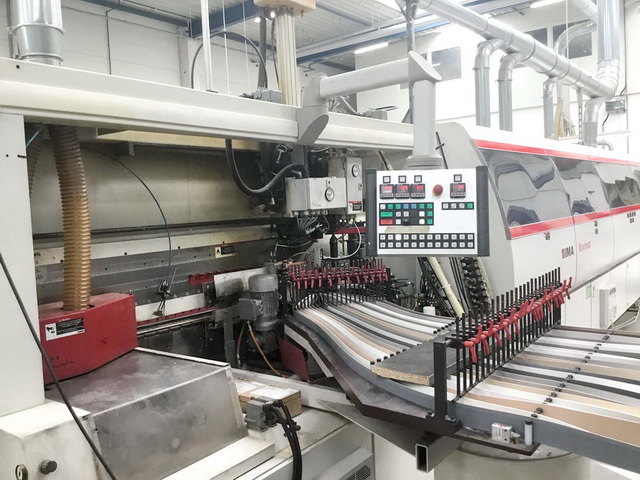

Edge coils supporting unit (No. 24 reels with SERVO-CONTROL System
Snipping (end-cutting) unit 08.42/30/B (Kw 0,66 x 2) speed 30 m/min (0°-25°)
Rough Trimming unit 08.555 (Kw 1 x 2)
Fine Trimming unit (Multi-profile,adjustable by N.C.) 08.0587 (Kw 0,66 x 2) 4 profiles
Spraying Unit (for sliding liquid)
Multi-Profile Copying unit (fine and contour trimming) KFA 30 (08.355 – 1xKw 0,5) 30 m/min
adjustable by N.C. (4 profiles)
Profile edge scraping unit (Multi-profile, adjustable by N.C.) 08.516 (4 profiles)
Glue scraping unit 08.50 + 08.521
Spraying Unit (for polishing liquid)
Corners Rounding (contour trimming) Unit Brush 08.604 (Kw 0,22 x 4)
Buffing unit 08.617-2 (Kw 0,18 x 2)
Free space
