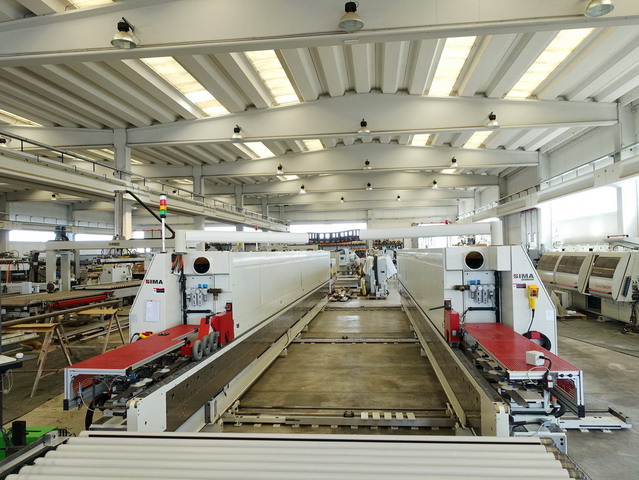

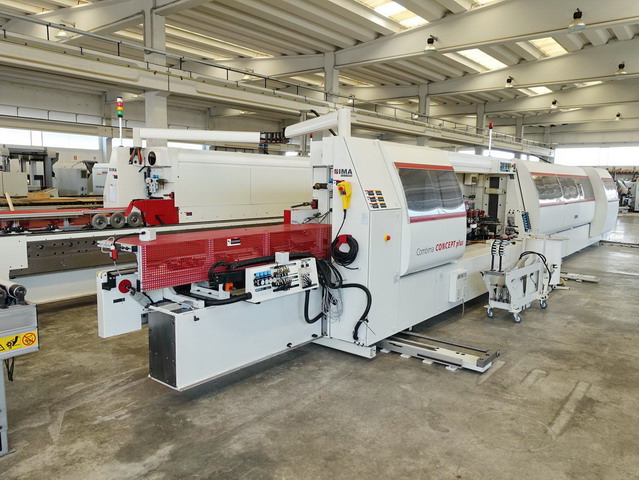

Double side – Independent Machine (or 1st and/or 2nd in a line)
Edges (band in rolls) thickness (Min/Max) mm 0,4 / 3
Edges thickness in strips/lippings (Min/max) mm 3 / 10
Panels thickness (min/max) mm 8 / 60
Working width (min/max) mm 274 (320) / 3300
Numerical Control /Software ICOS Open
Adjustable feeding speed (m/min ) 10 – 50 – Without Transmission bar (Master & Slave system)
Distance (center-axes) of the Disappearing Dogs (mm) 1080
SIZING PART (for each side):
Anti-chipping Milling Unit 75.30.0.084 (1 x Kw 4,4, 100 Hz, KRS 61)
Jump Scoring units 75.31 (1 x 2,2 kW)
Hogging Units 75.30.0.004 (1 x kW 6,6)
Pre-Milling unit 08.376 (1 x kW ?)
EDGE-BANDING PART (for each side):
Glueing Unit (Hot Melt Glue) 283.1513 (CNC)
Band Pressure zone – Edge coils supporting unit (reels N°) 1+2
Snipping (end-cutting) unit 08.42 (2 x Kw 0,66) speed 32 m/min (0° – 25)
Rough Trimming unit 08.0555 (2 x kW 1,85)
Fine Trimming unit 08.055 (2 x kW 1,85) / 0° – 30°
Corner Rounding unit ( Contour Trimming) 08.471+08.461 (4xkW 0,66) 20 m/min
Milling grooving unit 2 x 75.30 (2 x kW 6,6) 90° – 180°
OPTION: Chamfer Sanding Unit for straight edges 2 x kW 0,75
OPTION: Belt sanding unit (abrasive papers) for straight edge 08.062 (1 x kW 1,8)
