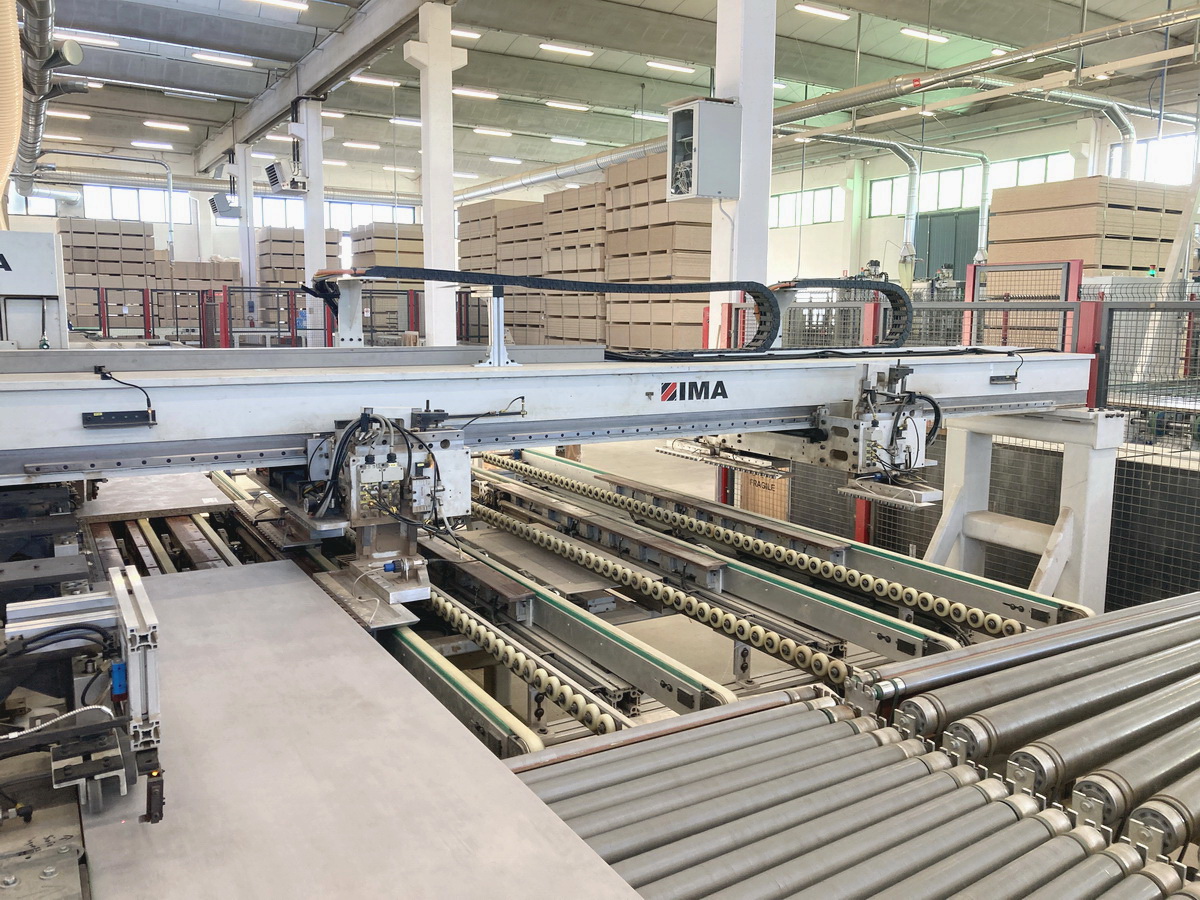

IMA Combima / I / R75 / 1480

Code:
JZ1420

Type:
EDGE BANDER

Brand:
IMA

Model:
Combima / I / R75 / 1480

Description

FLEXIBLE SYSTEM OF SINGLE-SIDE SIZING AND EDGEBANDING FOR BATCH-SIZE ONE
Edges (band in rolls) thickness (Min/Max) mm 0,3 – 3
Panels thickness (min/max) mm 8 – 60
Numerical Control ICOS open
Feeding speed (adjustable) m/min 7-35
Automatic and accurate Panels in-feed system Mod. A2 / 30
Automatic professional (accurate and fast) panels return-system to the operator
In-feed fence, adjustable by N.C.
Pre-milling Unit (vertical joint trimmers)75.34 (2 x Kw 6,6) adjustable by N.C.
No. 2 Glueing Units (P.U.R. Glue + Quick Melt system) 2 – VTG 3-48 + 286.205
Band Pressure zone. Height adjustment of the band adjustable by N.C.
Edge coils supporting unit (No. 48 reels)
Long Free Space
Snipping (end-cutting) unit 08.42 / 30 / B (Kw 0,66 x 2) (PNEU 0°-25°) 30m/ min
Rough Trimming unit 08.0555 (Kw 1 x 2)
Fine Trimming unit (Multi-profile, adjustable by N.C.) 08.0587 (Kw 0,66 x 2) 4 PROFILES
Spraying Unit (for sliding liquid)
Multi-Profile Copying unit by N.C (fine and contour trimming) KFA 30 (Kw 0,5 x 1) 30m/min
(4 PROFILES) group revamped in 2017
Profile edge scraping unit (Multi-profile, adjustable by N.C.) 08.516 (4 PROFILES)
Glue scraping unit 08.521 (CN horizontal positioning)
Spraying Unit (for polishing liquid) + Buffing unit 08.617 (Kw 0,18 x 4), Free Space
No. 3 Milling grooving units adjustable by N.C. 08.190 (Kw 4,5 x 2 + Kw 6,6 x 1)
