Shop

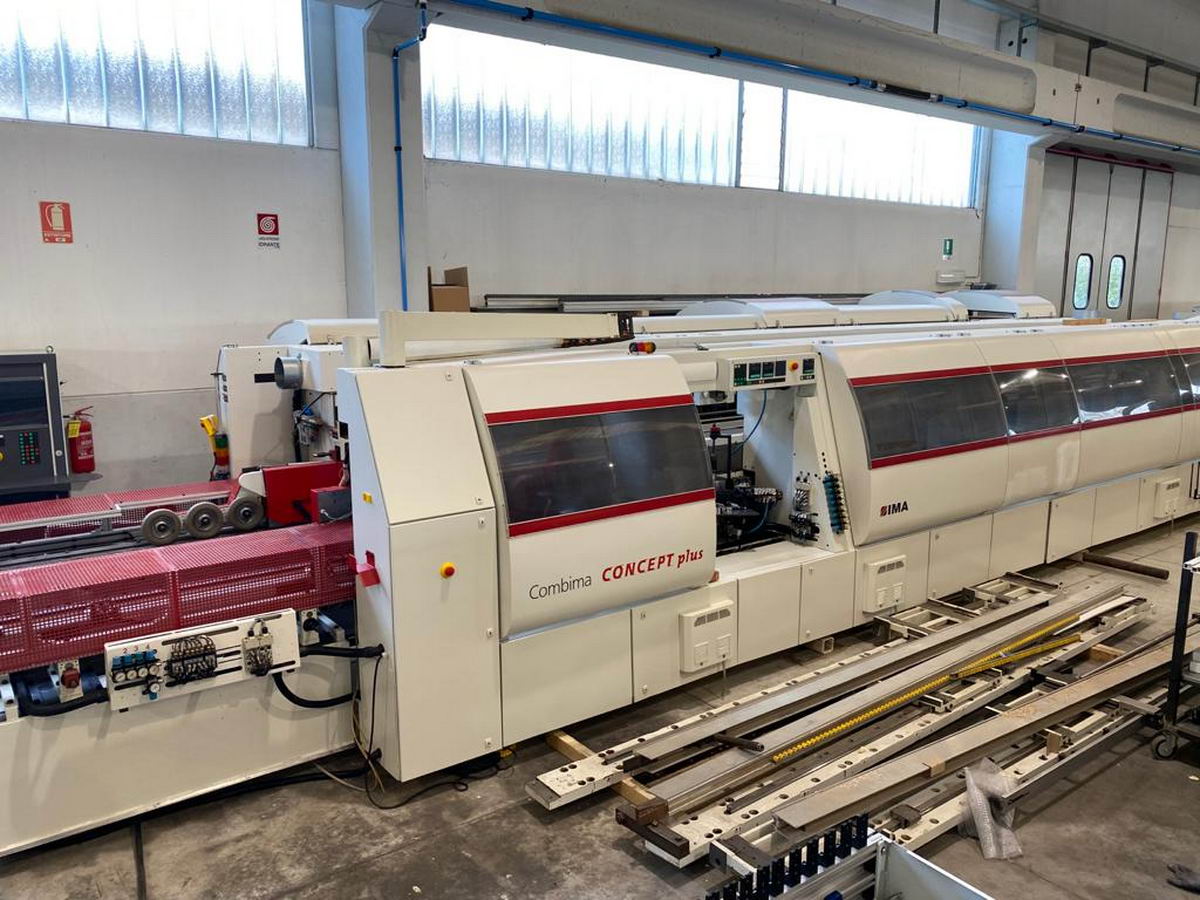

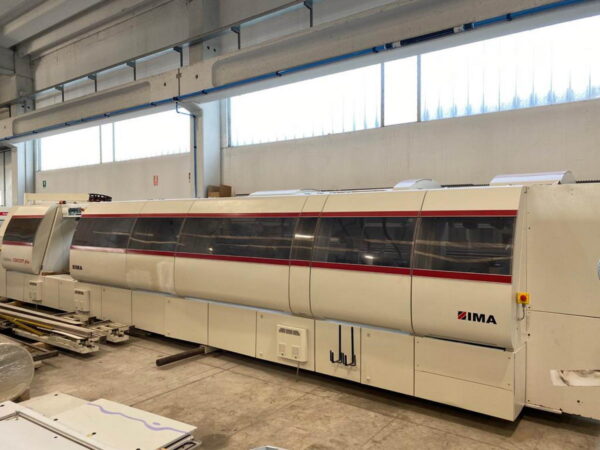

IMA Combima Concept/II/500/B/R3

Code:
Y05013

Type:
COMBI MACHINE (SIZING & EDGE BANDING)

Brand:
IMA

Model:
Combima Concept/II/500/B/R3

Description

Double side – Independent Machine (or 1st and/or 2nd in a line)
Edges (band in rolls) thickness (Min/Max) mm 0,3 / 3
Edges thickness in strips/lippings (max) mm 1
Panels thickness (min/max) mm 8 / 60. Working width (min/max) mm 266 / 3300
Numerical Control /Software ICOS Open
Adjustable feeding speed (m/min ) 10 – 50 – Without Transmission bar (Master & Slave system)
Safety and sound-proof enclosures/cabins.
Distance (center-axes) of the Disappearing Dogs (mm) 1080
SIZING PART (for each side):
Anti-chipping Milling Unit 75.30.0.084 (1 x Kw 4,4)
Hogging Units 75.30 (2 x Kw 6,6)
Pre-Milling unit 75.30.0.084 (1 x Kw 4,4)
EDGE-BANDING PART (for each side):
Glueing Unit (Hot Melt Glue + Quick Melt system) 04.1570 + 283.205
Band Pressure zone – Edge coils supporting unit (reels N°) 2
Snipping (end-cutting) unit 08.42 (2 x Kw 0,2) 0° – 25°
Rough Trimming unit 08.0555 (2 x kW 1,0)
Fine Trimming unit 08.055 (2 x kW 0,66) 0°-30°
Corner Rounding unit ( Contour Trimming) 08.471+08.461 (4x kW 0,18) 20 m/min
Profile edge scraping unit 08.519
Glue scraping unit 08.517
Buffing unit 08.617 – 4 (4 x Kw 0,18)
Milling grooving unit 75.30 (1 x Kw 6,6)
