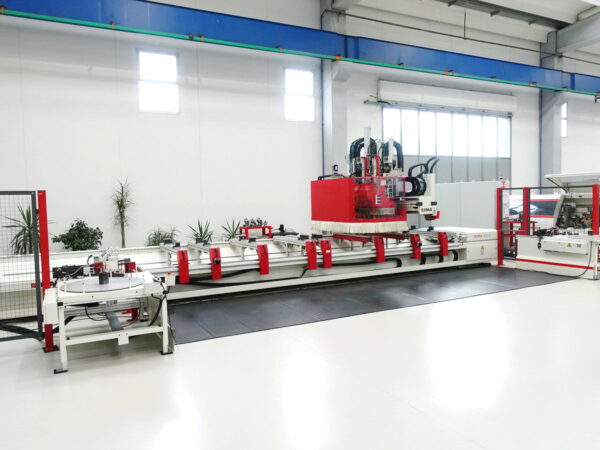

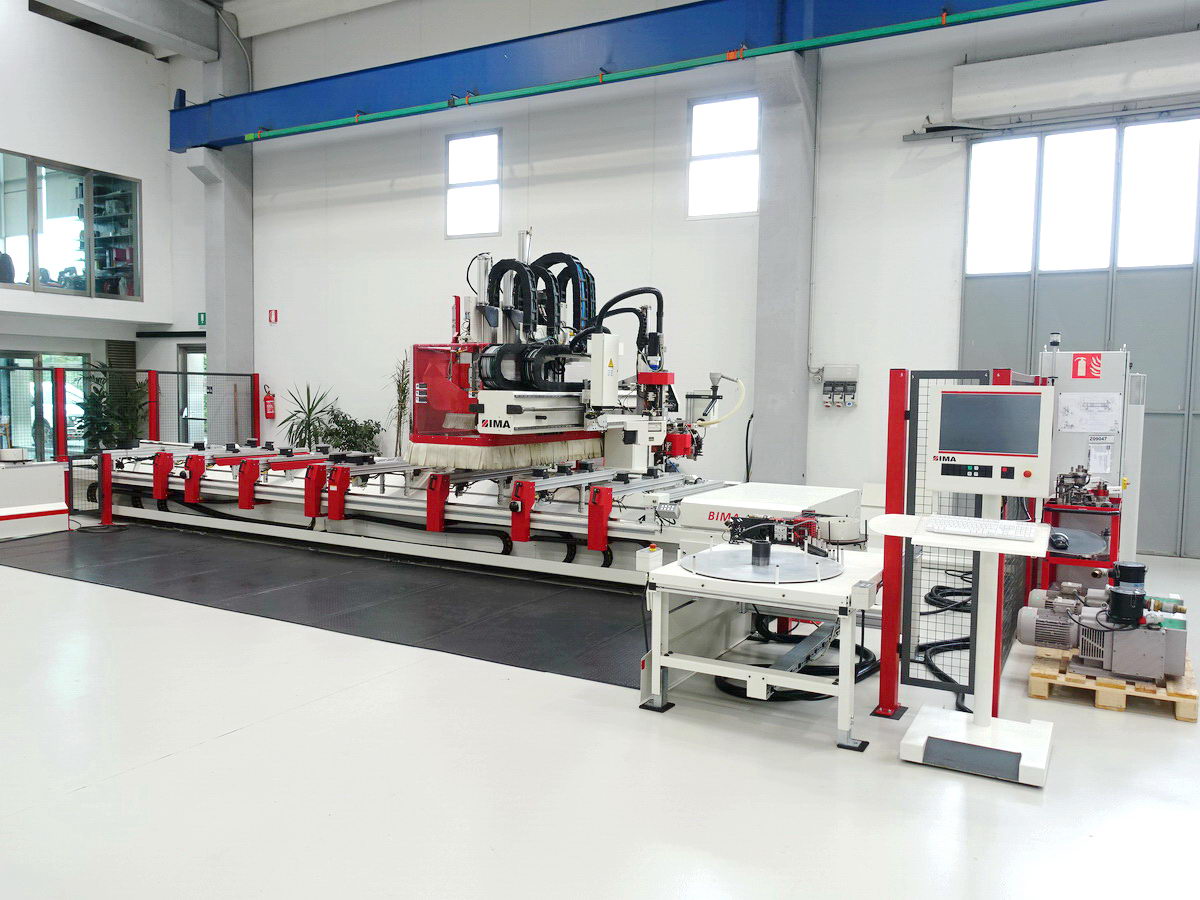

C.N.C. WORKING CENTER with 4 axes (X-Y-Z-C) for routering, boring, cutting and edge banding
Goose-neck machine – Front emergency carpets – Working table with pods and rails
Numerical Control Type ICOS CNC (open 231) – Software IMAWOP
Safety cabin (enclosure) of the working head
No. 8 Rails-supports (mm 1400 long)
LED system (on the rails) for the vacuum pods positioning – LED in Y + X
Automatic Tools Changing System (Store with No. 18 folds-positions)
Useful working area (X – Y – Z) mm 6100 x 2000 x 125
Useful working area (X -Y – Z) in edge banding mm 6100 x 1925 x 100
No. 2 Working areas – Vacuum pump
Motorized belt to evacuate the wastes from the working process
Separate electric and command cabinet
Total power installed Kw 46
Working group (top head)
No. 3 Vertical Electro-spindle HSK F63 (1 x Kw 18 + 2 x Kw 10)
Edge Banding group on board VT 100 with Glueing Unit (Hot Melt + Quick Melt Unit)
Edges (tape) thickness in rolls (min/max) mm 0,4 – 3
Edge coils supporting unit (Nr. 2 reels) with TOPFLEX
Pre-End cutting unit
OPTIONALS:
Aggregate Circular saw diam. mm 200
Aggregate Flush-Trimming/Scraping Unit
