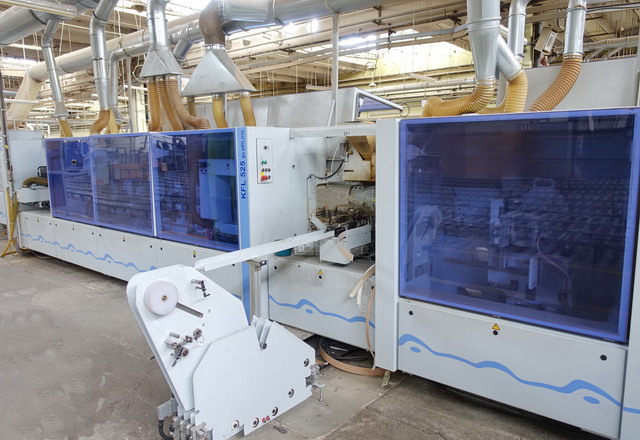

Double side – First (1st) machine in a line Machine
Edges (band in rolls) thickness (Min/Max) mm 0,3 / 3
Panels thickness (min/max) mm 12 / 40
Working width (min/max) mm 195 / 1500

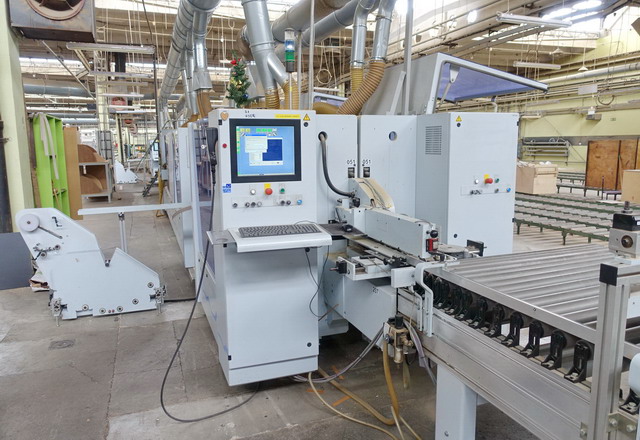

Numerical Control /Software PC 22 / WoodCommander
Adjustable feeding speed (m/min) 15 – 40
Safety and sound-proof enclosures/cabins

SIZING PART (for each side):
Spraying unit (Anti-sticking liquid)
Hogging Units KD10 (2 x Kw 6,6) + Free space

EDGE-BANDING PART (for each side):
Glueing Unit (Hot Melt Glue + Quick Melt system) A3
Band Pressure zone A (1+4)
Edge coils supporting unit (reels) No. 2 (SERVO feeding system)
Snipping (end-cutting) unit HL 84 (2 x Kw 0,22)
Rough Trimming unit 2 x Kw 0,55
Fine Trimming unit 2 x Kw 0,4 (0° – 25°)
Profile edge scraping unit PN 20
Finish processing unit ( Glue scraper + Buffing unit) FA 11
Spraying Unit (for polishing liquid)
Milling grooving unit (Left-side only): UF 11 (1 x Kw 4) 0°-90°
Belt sanding unit (abrasive papers) for straight edge KS 10 (1 x Kw ?)
