Description
Description and features:
CONTROL SYSTEM
• NC Homatic, system NC 81 based on PLC
• Nr. 4 control axis (x,y,z,c) – Rotation 360°
• Moving speed max:
– 80 m/min X-Y axes
– 30 m/min Z axis
TECHNICAL DETAILS
• Piece length:
– max 3.700 mm for single processing
– max 1.250 mm for alternated processing
• Piece width max 1.200 mm
• Piece thickness:
– with edgebanding max 40 mm
– without edgebanding max 60 mm

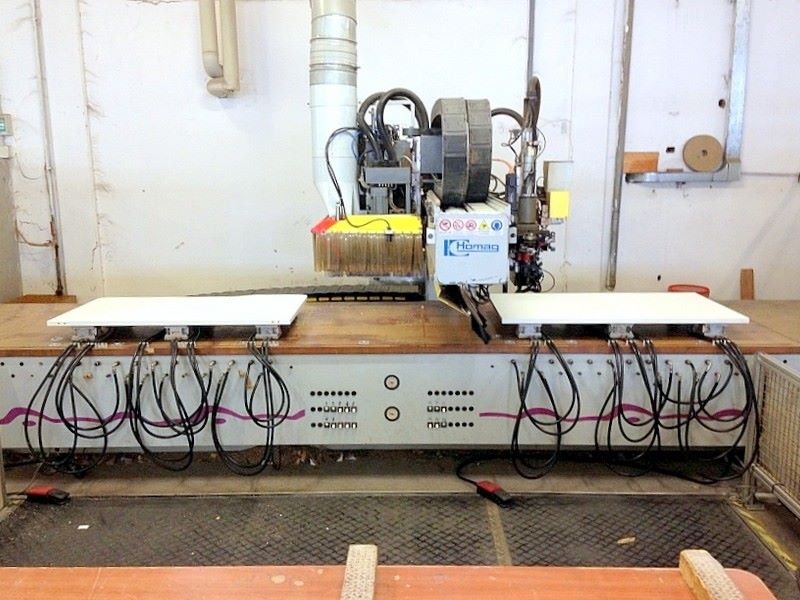

FLAT WORKING TABLE with rollaway backstop and possibility of installation of locking depression devices for pieces
• Nr. 8 Frontal stops (4 + 4)
• Nr. 4 Back stops (2 + 2)
• Nr. 4 Side stops (2 + 2)

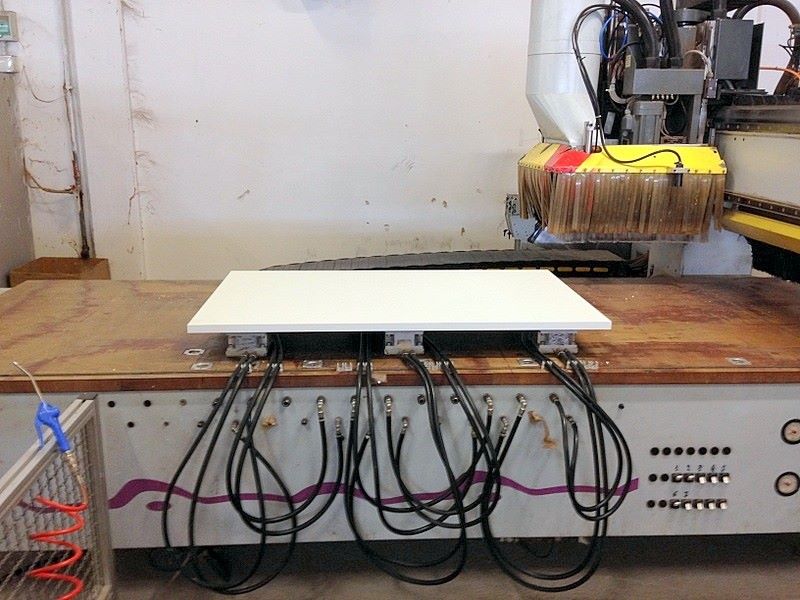

• Nr. 12 Locking suction cups dual action
• Nr. 2 Vacuum pumps 100 m3
GLUING UNIT 360°/SINGLE EDGE
• Edge height max 45 mm
• Plastic edge thickness min – max 0,4-3 mm
• Edge length min 230 mm
• Nr. 1 Magazine for edges with nr. 3 positions
BORING UNITS
• Nr. 1 Horizontal boring unit with 4 spindles
• Nr. 1 Vertical boring unit with indipendent spindles
OPERATING UNITS – Rotation from 0 to 360°
• Nr. 1 Electrospindle 7,5 kW – HSK F63
• Milling tools diameter max 150 mm
• Nr. 1 End trimming saw blade unit 180 x 30 x 3,2 Z = 54
• Nr. 1 Rough trimming unit
TOOL CHANGER MAGAZINE WITH NR. 12 POSITIONS – HSK F63
• Circular magazine with 12 positions for tools/groups
ELECTRICAL EQUIPMENT
• Separate electrical cabinet
• Operating voltage 380/400 Volt 50/60 Hz
NORM AND OPTIONAL FOR SECURITY
• CE Marks
• Frontal Electronic security mats
