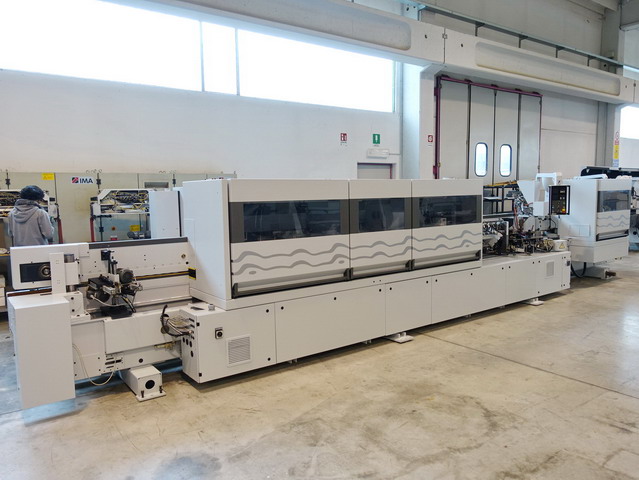

“SOFTFORMING” SINGLE-SIDE EDGE BANDER
LEFT-side machine
Edges (band in rolls) thickness (Min/Max) mm 0,3 / 3
Edges thickness in strips / lippings (min/max) mm 0,4 / 12
Panels thickness (min/max) mm 7 – 60

Numerical Control NC 16
Feeding speed (adjustable) m/min 12 – 24
Top pressure system with rubber belt
Spraying unit (Anti-sticking liquid)

Pre-milling Unit (vertical joint trimmers) 2 x kW 3
Glueing Unit (Hot Melt Glue + Quick Melt system) QE 34
Pressing roller (revolver) both for straight and shaped edges (softforming)
Edge coils supporting unit (reels N°) 1

Snipping (end-cutting) unit HL 05 (2 x kW 0,4)
Rough Trimming unit (2 x kW 1)
Fine Trimming unit (2 x kW 0,4)
Corners Rounding (contour trimming) Unit (4 x kW 0,4)
Free space
Buffing unit (2 x kW 0,25)
