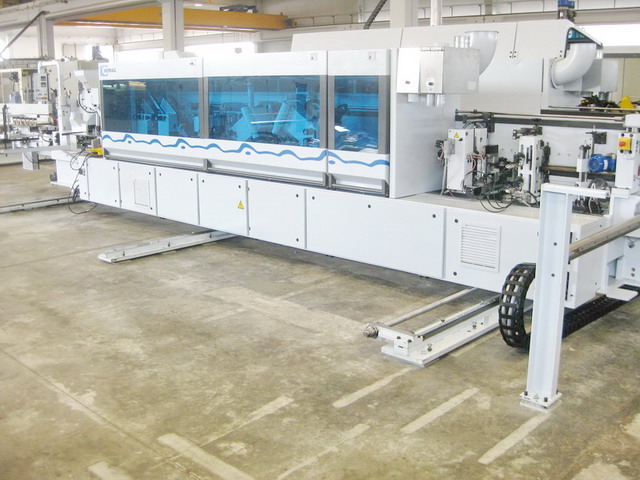

DOUBLE-SIDE EDGE BANDER
Min/Max edges (band) thickness in rolls mm 0,3 – 3
Min/max edges thickness in stips / lippings mm 0,4 – 12
Min/max panels thickness mm 12 – 45
Working width mm 240 – 3000
Numerical Control NC 21 (Homatic)
Feeding speed (adjustable) m/min 10 – 32
Top motorized pressure belt

Infeed fence, adjustable by CNC
Pre-milling Unit (Vertical joint trimming) Kw 4 x 2
Lamps to heat the workpieces side
Glueing Unit (Hot Melt + Quick Melt system) A12 / QA34
Pressure zone “C” (adjustment by CNC)
Edge coils supporting unit with N. 1 coil
Snipping unit HL 83 (Kw 0,5 x 2)
Rough Trimming unit Kw 0,55 x 2
Fine Trimming unit MF 21, Multi-profile, adjustable by CNC (Kw 0,4 x 2)
Multi function Unit (Profile Trimming unit) FK 11 adjustable by CNC (Kw 0,55 x 2)
Profile edge scraping unit MN 21, Multi-profile, adjustable by CNC
Finish processing unit (Glue scraper + Buffing unit) FA 11
