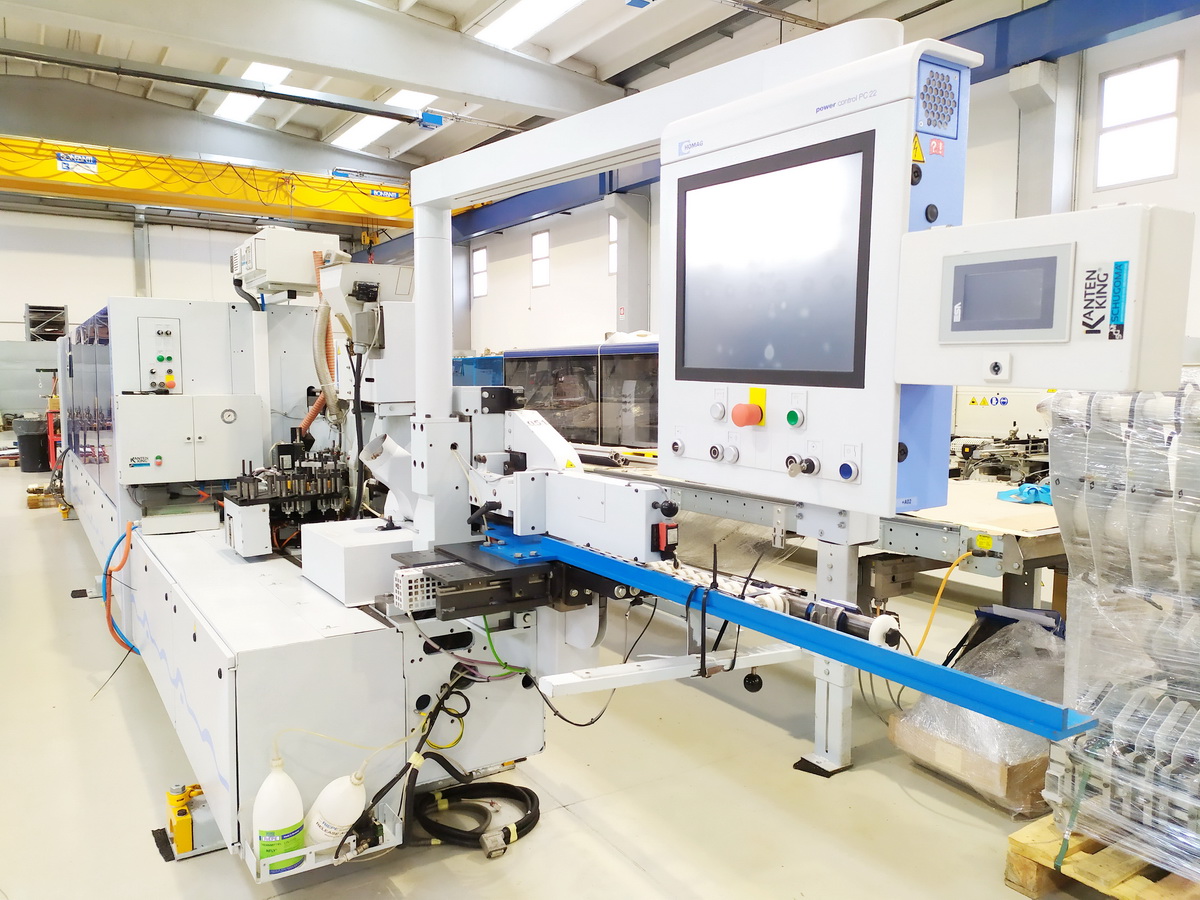

SINGLE SIDE EDGE BANDER (Left)
Edges (band in rolls) thickness (Min/Max) mm 0,3- 3
Panels thickness (min/max) mm 8 – 60
Numerical Control POWER CONTROL PC 22 (video TFT) WoodCommander
Feeding speed (adjustable) m/min 18 – 25
Top pressure system with rubber belt
Spraying unit (Anti-sticking liquid)
In-feed fence, adjustable by N.C.
Pre-milling Unit (vertical joint trimmers) 2 x Kw 3
Lamps to heat the workpieces side
Glueing Unit (Hot Melt Glue) A3

Band Pressure zone (N.C. adjustment) K
Edge coils supporting unit (No. 6 reels)
Snipping (end-cutting) unit HL84 (2 x Kw 0,22) max 25 m/min (30°)
Rough Trimming unit (2 x Kw 0,55)
Multi Function Unit (Profile contour Trimming unit) FK11 (2 x Kw 0,4)
1° Profile Scraping unit (Multi-profile, by N.C.)
2° Profile edge scraping unit PN10 (PNEU)
Finish processing unit ( Glue scraper + Buffing unit) FA11
Spraying Unit (for polishing liquid)
