Shop

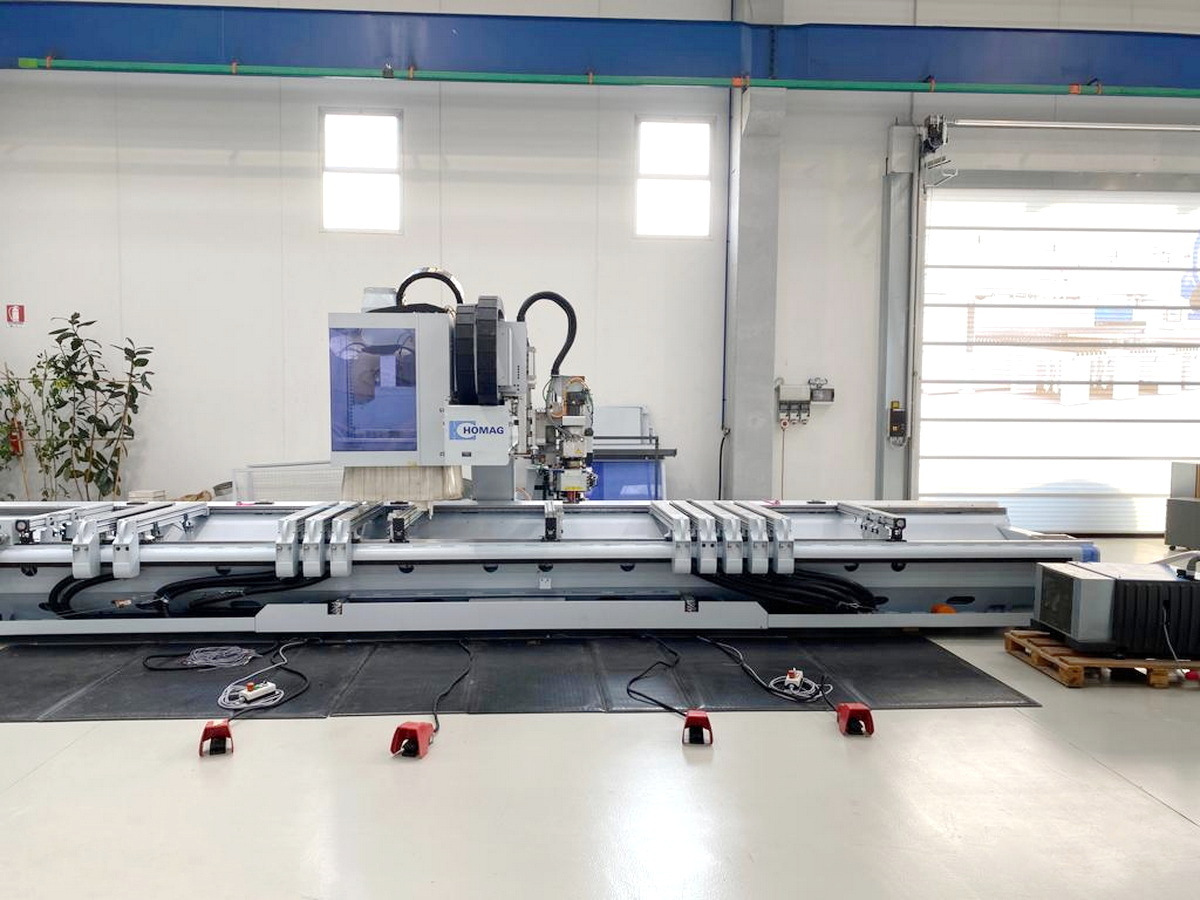

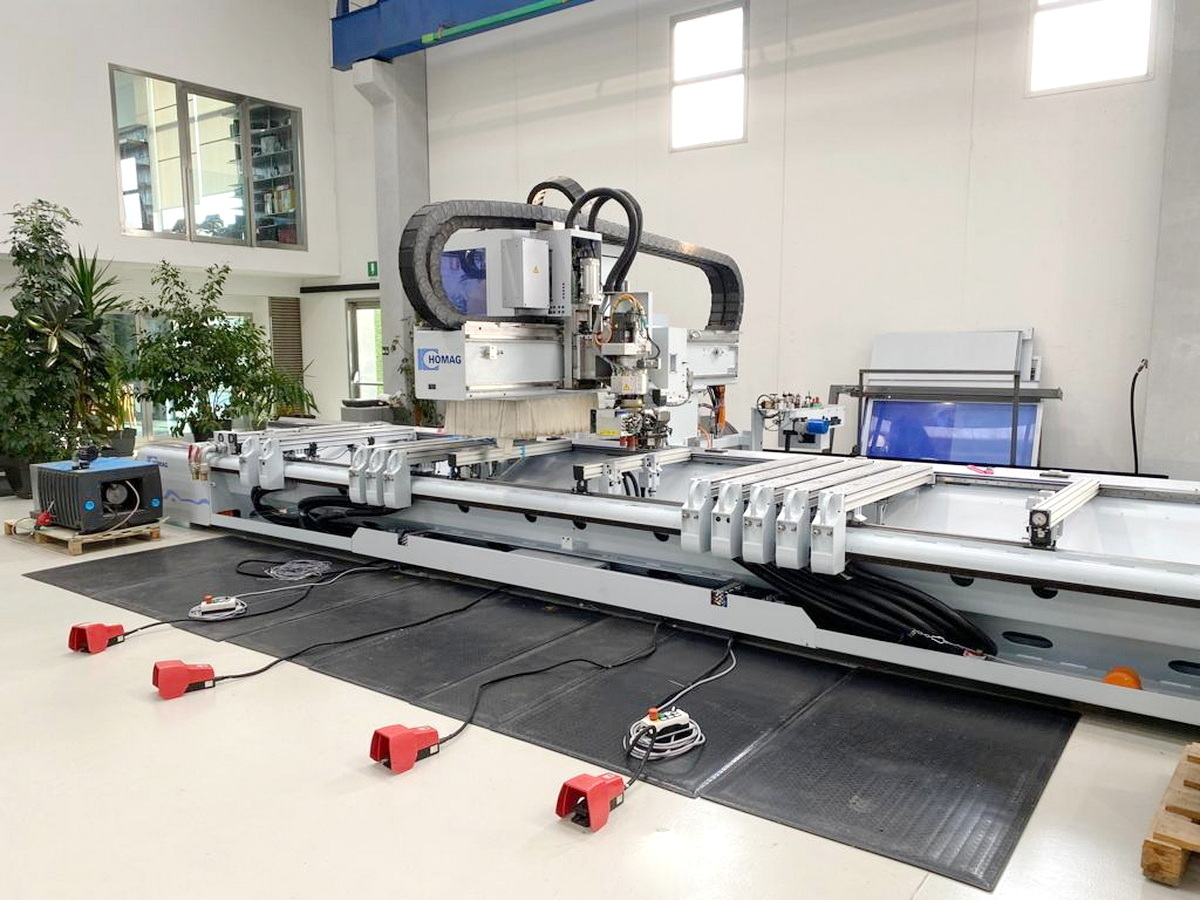

HOMAG BAZ 222 / 60 / K

Code:
K04021

Type:
C.N.C. WORKING CENTER (ROUTER WITH EDGE-BANDING)

Brand:
HOMAG

Model:
BAZ 222 / 60 / K

Description

C.N.C. WORKING CENTER with 4 axes (X-Y-Z-C) for routering, boring, cutting and edge banding
Goose-neck type – Front emergency carpets
Numerical Control Type PowerControl PC 85 – Software WoodWop
No. 10 Supports/Rails (mm 1340)
LED system (on the rails) for the vacuum pods positioning
Automatic Tools Changing System (Store at No. 18 folds)

Max. useful working area (X – Y – Z) mm 6175 x 1550 x 60
Max. useful working area (X – Y – Z) in edge banding mm 6000 x 1475 x 60
No. 2 Working areas – No. 2 Vacuum pumps (capacity m3/h 100 each)
Motorized carpet to evacuate the wastes from the working process
Total installed power KW 27

Working groups (top)
No. 17 Independent vertical boring spindles (power of the drilling head Kw 2,2)
No. 4 Independent horizontal boring spindles
No. 1 Vertical main Electro-spindle HSK F63 Kw 11
No. 1 Circular Saw 0°-90°) diam. (mm) 125
No. 1 Edge Banding head on board (axe Y) Power Edge, Glueing Unit (Hot Melt + Quick Melt Unit)
Edges (tape) thickness in rolls (min/max) mm 0,4 – 3
Edge coils supporting unit (N. 2 reels/Coils)
