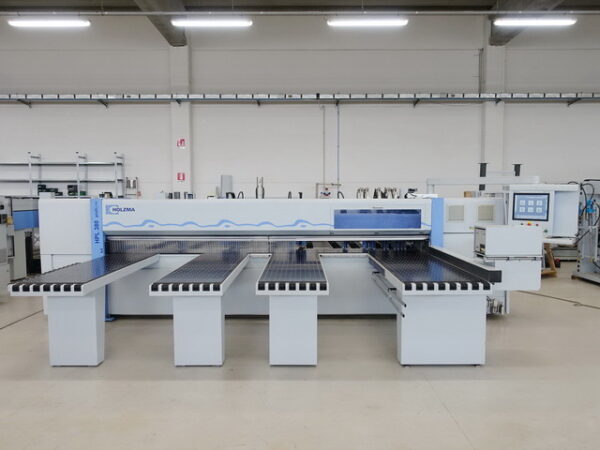

PANEL BEAM SAW WITH REAR LIFTING TABLE
Numerical Control Power control
Software CADmatic 4 Professional

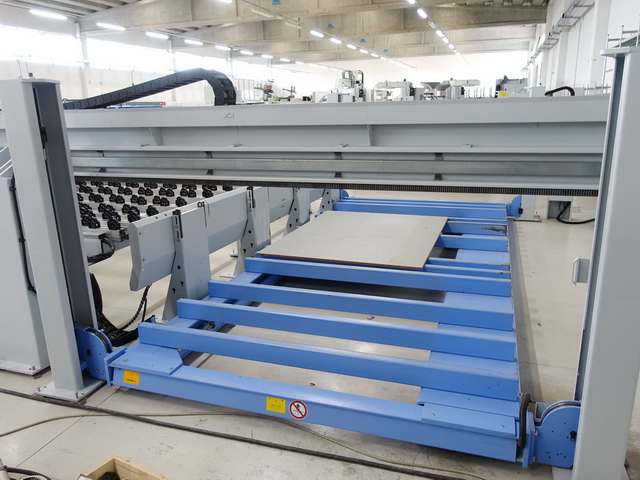

Lifting scissor table (mm) 4300 x 2200
Rear pushers (Twin pusher – Power Concept)
With clamps / grippers Soft Touch package

Max. cutting width (mm) 4300
Useful stroke of the pushing system (mm) 4300
Max blade projection (mm) 95 (automatic)
Scoring Unit (max saw diameter / power) 180 / Kw 2,2
Main Sawing Unit (max saw diameter / power) 380 / Kw 18
Adjustable speed of the saw carriage (m/min) 1 – 150
Front supporting tables with Air blowing system (N.) 4
Total power (Kw) 28
Labels Printer (Option)
Optimisation software (Option)
Postforming scoring unit diam. mm 280

OPTION:
– software CAD-Plan 4 (optimizzazione/optimisation)
– software BR3 (etichette/labels)
– Grooving / cut out package
